This page enables you to set the clock speed and system bus for your system. The
clock speed and system bus are determined by the kind of processor you have
installed in your system.

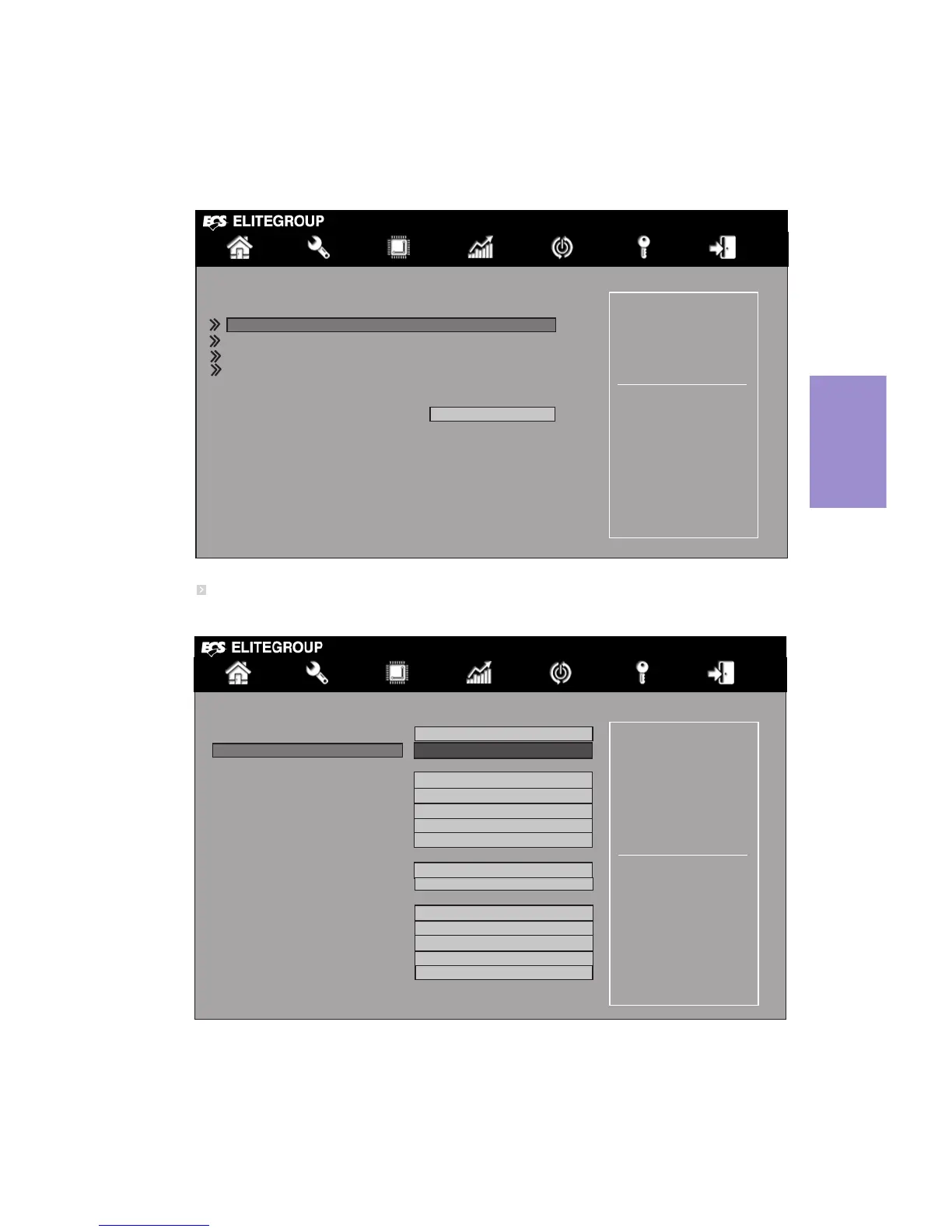

M.I.B. III (MB Intelligent BIOS III) Menu
CPU OverClocking Configuration
Scroll to this item to view the following screen:
ME Subsystem Help
Main Advanced Chipset M.I.B. III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
CPU OverClocking
Configuration
Main Advanced Chipset M.I.B. III Boot Security Exit
+/- : Change Opt.
Enter/Dbl Click : Select


: Select Screen
/Click: Select Item
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC/Right Click: Exit
Package Current Lock
M.I.B. III (MB Intelligent BIOS III)
CPU OverClocking Configuration
North Bridge Configuration
Memory Configuration
Over Voltage Configuration
Spread Spectrum Enabled
Intel(R) Core(TM) i5-4670 CPU @ 3.40GHz
Processor Speed 3400 MHz
Memory Frequency 1067 MHz
Total Memory 2048 MB (DDR3)
CPU Ratio 34
Package Current Lock Disabled
IA Core Current Maximum
Enhanced Intel SpeedStep Technology Enabled
Turbo Mode Enabled
RuntimeTurbo Mode Disabled
Boot Performance mode Max Non-Turbo Perfor...
Package TDP Lock Enable Disabled
Long Duration Power Limit Override Maximum
Power Limit 1 Time (Second) 8
Power Limit 2 Switch Enabled
Short Duration Power Limit Override Maximum
1 Core Ratio Limit 38
2 Core Ratio Limit 38
3 Core Ratio Limit 37
4 Core Ratio Limit 36
Disable OverClocking Lock Enabled
