How to use the cartridge kit

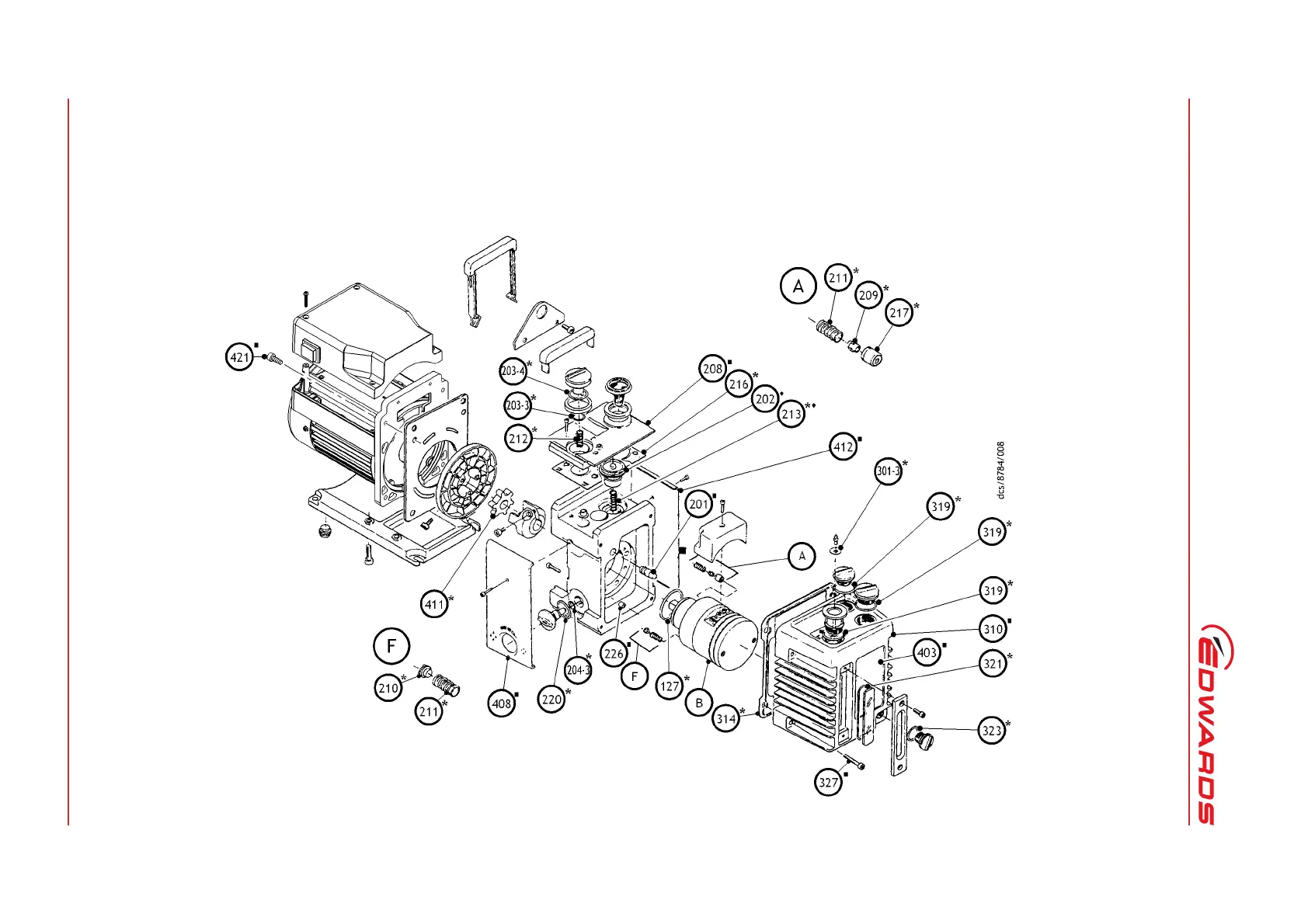

Figure 1 - Exploded view of the RV pump
* Included in the Cartridge Kit: see Table 1
 Included for reference only: see key
A Oil pressure/damp valve assembly
B Cartridge: see Figure 2
F Gas Ballast check valve assembly
201 Air bleed assembly
202 Inlet-valve assembly: see Figure 3
208 Top-plate
226 Restrictor
310 Oil-box
327 Bolt
408 Side panel
412 Side panel
421 Bolt
