Chapter 5 Reference

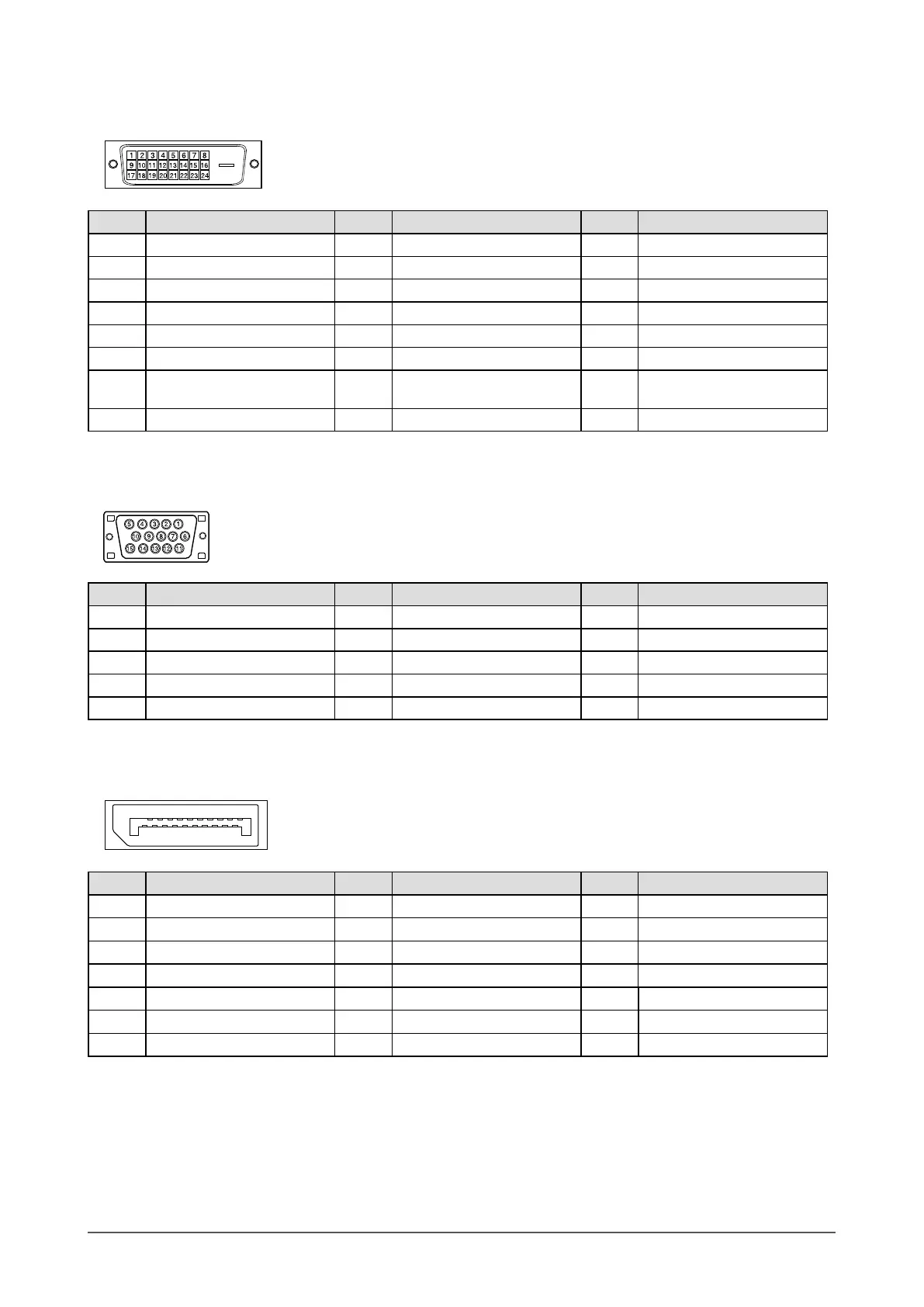

Connector Pin Assignment
• DVI-D connector
Pin No. Signal Pin No. Signal Pin No. Signal
1 T.M.D.S.Data2- 9 T.M.D.S.Data1- 17 T.M.D.S.Data0-
2 T.M.D.S.Data2+ 10 T.M.D.S.Data1+ 18 T.M.D.S.Data0+
3 T.M.D.S. Data2/4 Shield 11 T.M.D.S. Data1/3 Shield 19 T.M.D.S. Data0/5 Shield
4 NC* 12 NC* 20 NC*
5 NC* 13 NC* 21 NC*
6 DDC Clock (SCL) 14 +5VPower 22 T.M.D.S. Clock shield
7 DDC Data (SDA) 15 Ground(returnfor+5V,
Hsync, and Vsync)
23 T.M.D.S.Clock+
8 NC* 16 Hot Plug Detect 24 T.M.D.S.Clock-
(NC*:NoConnection)
• D-Sub mini 15-pin connector
Pin No. Signal Pin No. Signal Pin No. Signal
1 Red video 6 Red video ground 11 NC*
2 Green video 7 Green video ground 12 Data (SDA)
3 Blue video 8 Blue video ground 13 H. Sync
4 NC* 9 NC* 14 V. Sync
5 Ground 10 Ground 15 Clock (SCL)
(NC*:NoConnection)
• DisplayPort connector

135791113151719
2468101214161820
Pin No. Signal Pin No. Signal Pin No. Signal
1
MLLane3-
8
Ground
15
AUXCH+
2
Ground
9
MLLane1+
16
Ground
3
MLLane3+
10
MLLane0-
17
AUXCH-
4
MLLane2-
11
Ground
18
Hot Plug Detect
5
Ground
12
MLLane0+
19
Return
6
MLLane2+
13
CONFIG1
20
DP PWR
7
MLLane1-
14
CONFIG2

Eizo FLEXSCAN S2433W Specifications

General

Pixel pitch	0.270 x 0.270 mm
Aspect ratio	16:10
Response time	6 ms
Display diagonal	24.1 \
Display resolution	1920 x 1200 pixels
Vertical scan range	55 - 76 Hz
Horizontal scan range	31 - 94 kHz
Viewable size diagonal	611 mm
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Digital vertical frequency	59 - 61 Hz
Digital horizontal frequency	31 - 76 kHz
Display brightness (typical)	360 cd/m²
Display viewable area (HxV)	518.4 x 324 mm
HDCP	Yes
I/O ports	DisplayPort
USB hub version	2.0
Headphone connectivity	3.5 mm
USB Type-A downstream ports quantity	3
RMS rated power	1 W
Certification	TCO Displays 5.0, EPEAT Gold, TÜV/Ergonomics ( ISO 13406-2), TÜV/GS, c-Tick, CE, CB, UL (cTÜVus), CSA (cTÜVus), FCC-B, Canadian ICES-003-B, TÜV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, EIZO Eco Products 2009
Product color	Black
Market positioning	-
Compliance industry standards	VESA DDC 2B
Power consumption (typical)	95 W
Power consumption (PowerSave)	1.5 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	208.5 mm
Height (with stand)	538 mm
Weight (with stand)	10200 g
Depth (without stand)	85 mm
Width (without stand)	566 mm
Height (without stand)	367 mm
Weight (without stand)	7200 g
