Chapter1FeaturesandOverview

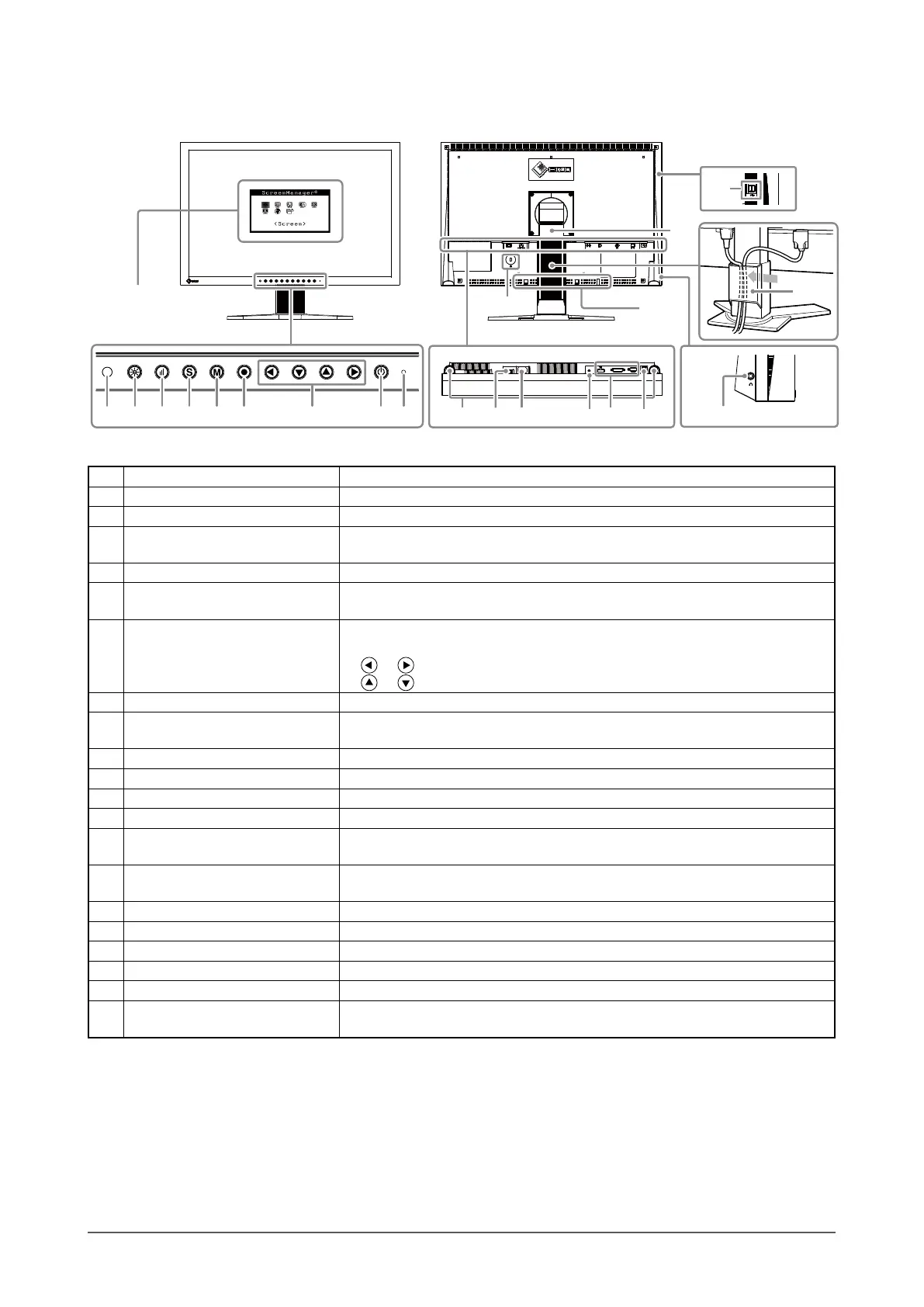

1-2 Controls and Functions
Ex.Heightadjustablestand
1 2 3 4 5 6 7 98
11
19
12 1413 1510
17
20
21
18
16
Adjustment menu
(
*
ScreenManager
®
)
1 Sensor Detectsambientbrightness.AutoEcoViewfunction(page 21).
2 Auto EcoView button Allows you to switch the Auto EcoView function On or Off (page 21).
3 EcoView Index button Displays the EcoView index (page 22).
4 Input Signal Selection button Switches input signals for display when more than two PCs are connected to
the monitor. (page 28).
5 Mode button Allows you to switch the display mode (page 17).
6 Enter button Displays the Adjustment menu, determines an item on the menu screen, and
saves values adjusted (page 12).
7 Control buttons (Left, Down,
Up, Right)
• Choosesanadjustmentitemorincreases/decreasesadjustedvaluesfor
advanced adjustments using the Adjustment menu (page 12).
•
or button:Displaysthevolumeadjustmentmenu(page 10).
•
or button:Displaysthebrightnessadjustmentmenu(page 10).
8 Power button Turns the power on or off.
9 Power indicator Indicates monitor’s operation status.
Blue:Operating Orange:Powersaving Off:Poweroff
10 Speaker Outputs audio source.
11 Main Power Switch Turns the main power on or off.
12 Power connector Connects the power connector.
13 Stereo mini jack Connectsthestereominijackcable.
14 Input signal connectors
Left:DisplayPortConnector/Center:DVI-IConnector/Right:D-Submini
15-pinconnector
15 USB port (Up)
ConnectstheUSBcabletousethesoftwarethatneedsUSBconnection,or
touseUSBHubfunction.(page 30)
16 USB Port (Down) Connects a peripheral USB device.
17 Stand Used to adjust the height and angle of the monitor screen.
18 Cable holder Coversthemonitorcables.
19 Headphone jack Connects the headphones.
20 Security lock slot Complies with Kensington’s MicroSaver security system.
21 Option speaker (i·Sound L3)
mounting holes
Used to attach the option speaker (i·Sound L3). (May not allowed to attach
the option speaker depending on the stand type.)
* ScreenManager
®
is an EIZO’s nickname of the Adjustment menu. See page 10 for how to use.

Eizo FLEXSCAN S2433W Specifications

General

Pixel pitch	0.270 x 0.270 mm
Aspect ratio	16:10
Response time	6 ms
Display diagonal	24.1 \
Display resolution	1920 x 1200 pixels
Vertical scan range	55 - 76 Hz
Horizontal scan range	31 - 94 kHz
Viewable size diagonal	611 mm
Contrast ratio (typical)	1000:1
Display number of colors	16.78 million colors
Digital vertical frequency	59 - 61 Hz
Digital horizontal frequency	31 - 76 kHz
Display brightness (typical)	360 cd/m²
Display viewable area (HxV)	518.4 x 324 mm
HDCP	Yes
I/O ports	DisplayPort
USB hub version	2.0
Headphone connectivity	3.5 mm
USB Type-A downstream ports quantity	3
RMS rated power	1 W
Certification	TCO Displays 5.0, EPEAT Gold, TÜV/Ergonomics ( ISO 13406-2), TÜV/GS, c-Tick, CE, CB, UL (cTÜVus), CSA (cTÜVus), FCC-B, Canadian ICES-003-B, TÜV/S, VCCI-B, EPA Energy Star, RoHS, WEEE, EIZO Eco Products 2009
Product color	Black
Market positioning	-
Compliance industry standards	VESA DDC 2B
Power consumption (typical)	95 W
Power consumption (PowerSave)	1.5 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (with stand)	208.5 mm
Height (with stand)	538 mm
Weight (with stand)	10200 g
Depth (without stand)	85 mm
Width (without stand)	566 mm
Height (without stand)	367 mm
Weight (without stand)	7200 g
