Electrolux Professional S.p.A.
Ovens Platform Customer Support
Technical Training & Service
AOSpeed OVENS
Service Manual
(593800300 - ENG)
File: AOSpeed service manual (ENG).001 ©Copyright 2002 by Electrolux Professional P.11/20
8.2. Utilities that can be activated in parameter programming
• All the output relays can be sequentially activated in order to check all the outputs from the power
board do1, do2, ... (dox=RLx on the EWD)

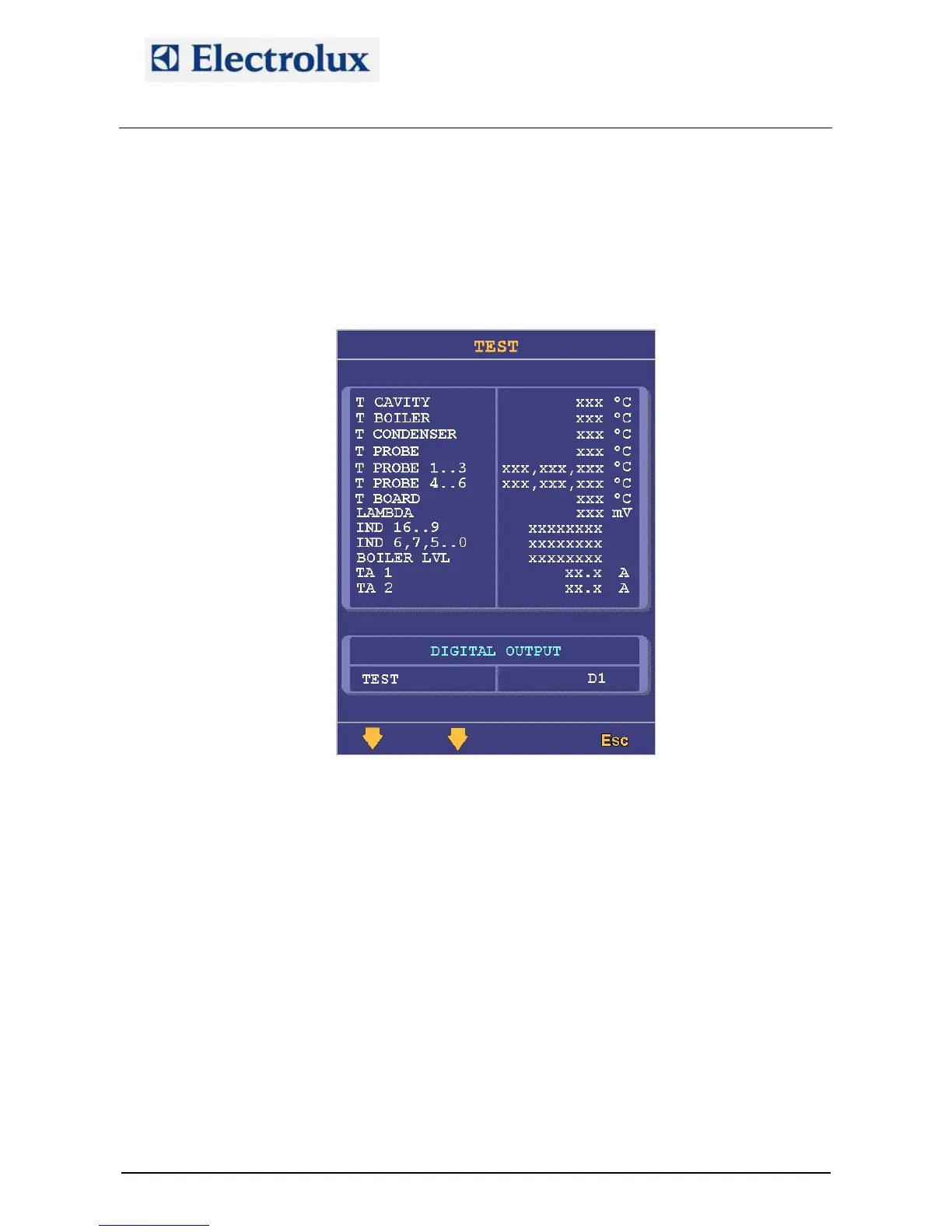

o Enter in parameter programming and choose TEST from the menu. The following page will be
displayed.
o The button P1 acts as main switch: if it is released, the test stops.
o Each time the P2 button is pressed, the next relay is activated
o If the P2 button is kept pressed, the relays are sequentially activated.
P1 P2
(Fig.22)
If one of the probes is detecting the same temperature of the ntc probe (BOARD temperature), the
meanings are the following:
1) Probe in short circuit
2) Probe not connected (for example Prb on a lev. A oven)
3) Probe at the same temperature of the ntc probe
11. Selection of the language for the recipe menu (lev. A)
It is possible to select a language for the menu of the recipes. To select the language, set parameter LanG
to the correct value for the desired language (see the relevant parameter list).
