10
To remove the refrigerator doors:
1 Tracelightlyaroundthedoor’stophingeswitha
pencil. This makes reinstallation easier.
2 Disconnect the harness by grasping both sides of
the connector firmly, depress the latch, and pull
apart. Remove the two (2) screws from the top
hinge. Lift the door off of the bottom hinge and
set it aside.
3 Detach the water tube from the connector
located behind the refrigerator and pull the tube
back out to the front of the unit. The connector
releases when you press inward on the outer
sleeve while pushing the tube toward the
connector then while continuing to hold in the
sleeve, pull the tube away.

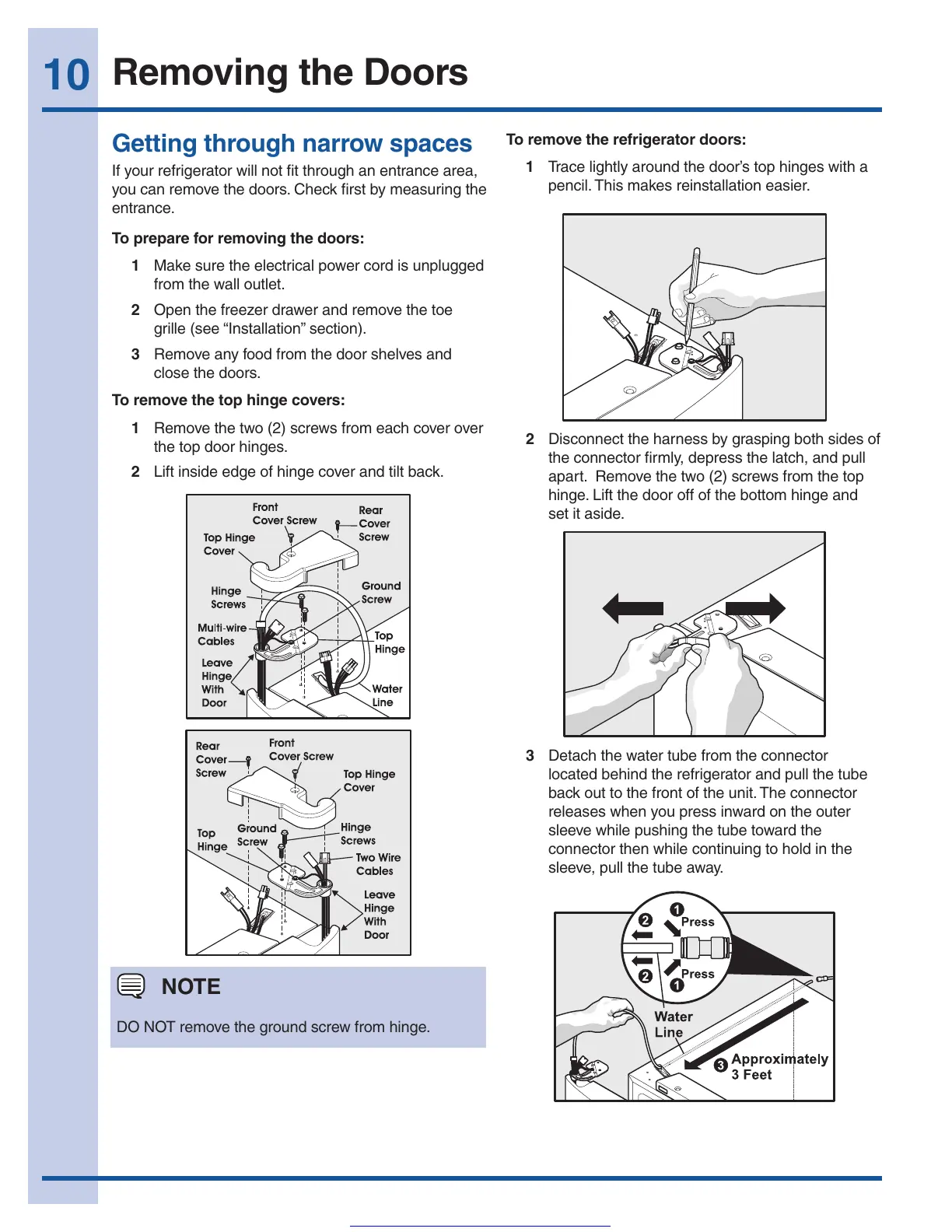

Removing the Doors
Getting through narrow spaces
If your refrigerator will not fit through an entrance area,
you can remove the doors. Check first by measuring the
entrance.
To prepare for removing the doors:
1 Make sure the electrical power cord is unplugged
from the wall outlet.
2 Open the freezer drawer and remove the toe
grille (see “Installation” section).
3 Remove any food from the door shelves and
close the doors.
To remove the top hinge covers:
1 Remove the two (2) screws from each cover over
the top door hinges.
2 Lift inside edge of hinge cover and tilt back.
NOTE
DO NOT remove the ground screw from hinge.
