5. Without the plastic hose guide, to
a sink spigot - Put the drain hose in
the spigot and tighten it with a clamp.
Refer to the illustration.
Make sure that the drain
hose makes a loop to
prevent particles going into
the appliance from the sink.
6. Position the hose directly to a built-
in drain pipe in the room wall and
tighten it with a clamp.
4. PRODUCT DESCRIPTION

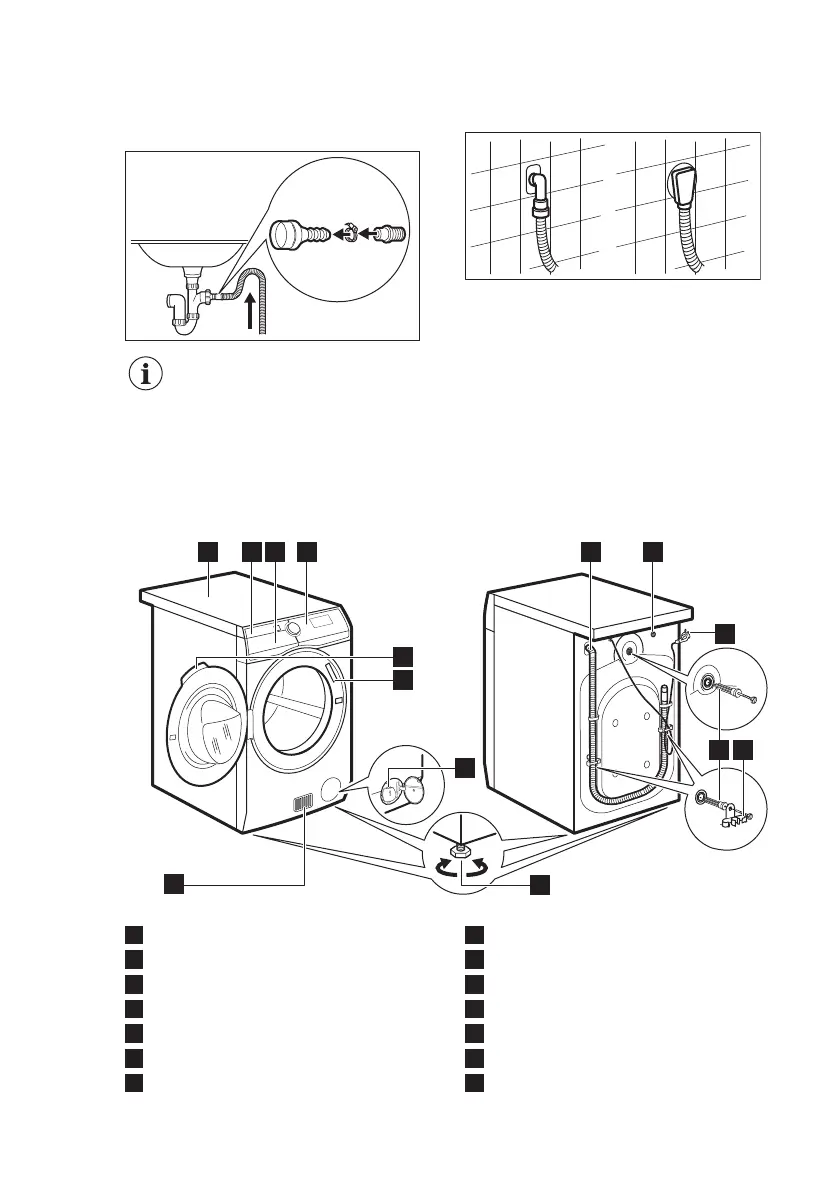

4.1 Appliance overview
1
Worktop
2
Detergent dispenser
3
Air filter(s)
4
Control panel
5
Door handle
6
Rating plate
7
Drain pump filter
8
Feet for levelling the appliance
9
Airflow slots
10
Water drain hose
11
Water inlet valve
12
Mains cable
13
Transit bolts
14
Hose supports
