14

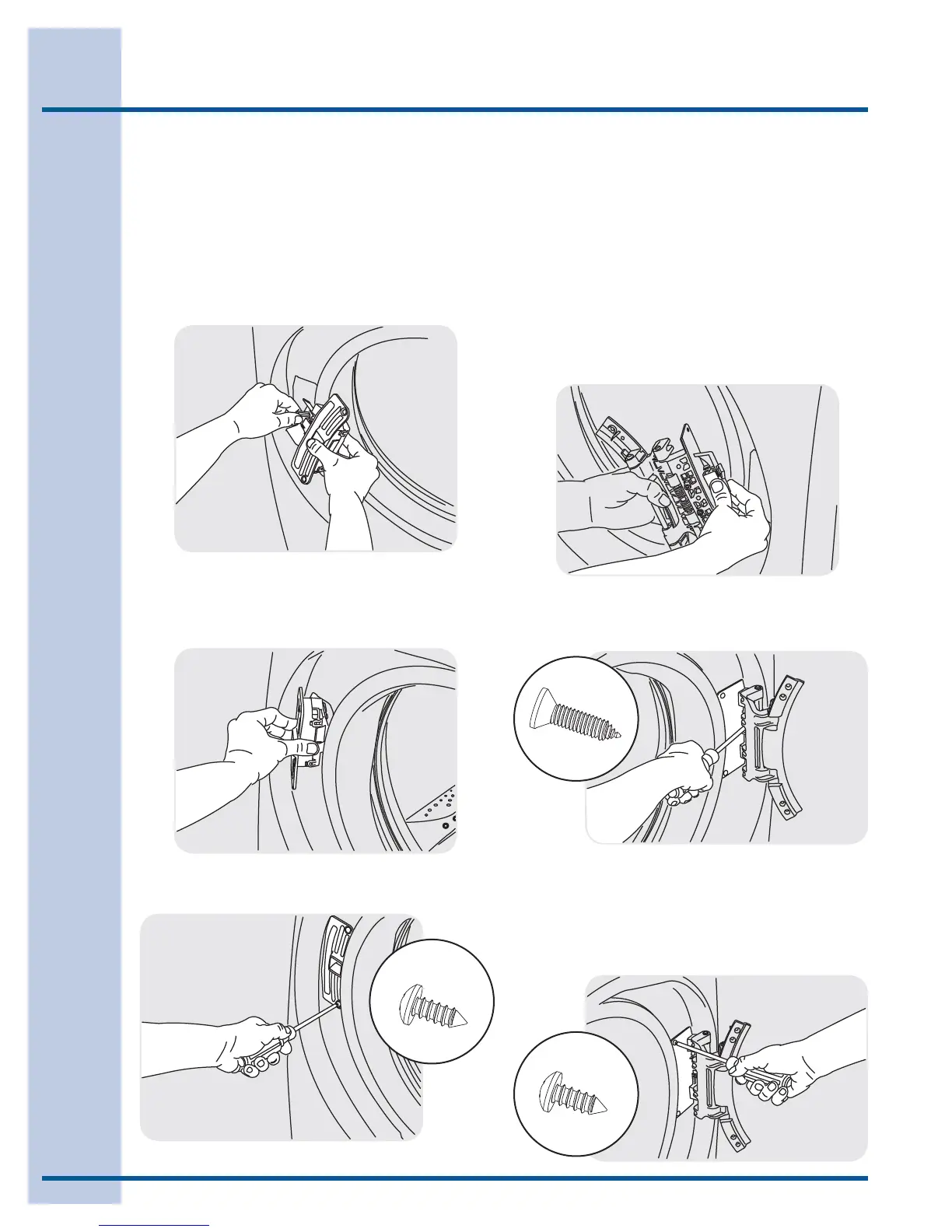

Reversing Door
E) Reattaching Door Lock to Front Panel
1 Rotate the door lock and move it to the
opposite opening.
2 Connect the harness to the door lock by
inserting it in the terminal and fi rmly pushing
it in place.
4 Secure the lock with 2 short, course-thread,
panhead screws.
3 Insert the harness connection through the
front panel fi rst, and then pivot the lock until
it is fl ush. Slide the lock toward the center of
the front panel until the screw holes line up.
F) Reattaching Hinge to Front Panel
1 Rotate the hinge and move it to the opposite
opening.
2 Connect the harness to the hinge retainer
by inserting it in the retention terminal and
gently pushing until you hear the fastening
tab click.
3 Gently pull on the harness to be sure it is
secure.
4 Use the side locating pins to align the hinge
and install 1 short, fi ne-thread, counter-sunk
screw in the center hole of hinge side.
5 Install the other 2 short, fi ne-thread, counter-
sunk screws in the upper and lower holes of
hinge side.
6 Install 2 short, course-thread, panhead
screws through hinge plate.
Reversing door and hardware
