Electrolux UL15IM20RS User Manual

21
Maintenance
7. Disconnect the water valve’s outlet
water line to the reservoir and drain
the remaining water left in the water
line trap area (Figure 4).
8. Reconnect the water valve outlet
water line (Figure 4).
9. Reinstall the ice machine’s access
cover.
10. Clean and dry the ice machine’s
storage bin.
11. Prop the door open for air circulation
to prevent mold and mildew.
12. Leave the water supply line
disconnected or reconnect the
supply line and leave it shut off. Do
NOT turn the water on and allow
water to enter back into the water
valve.

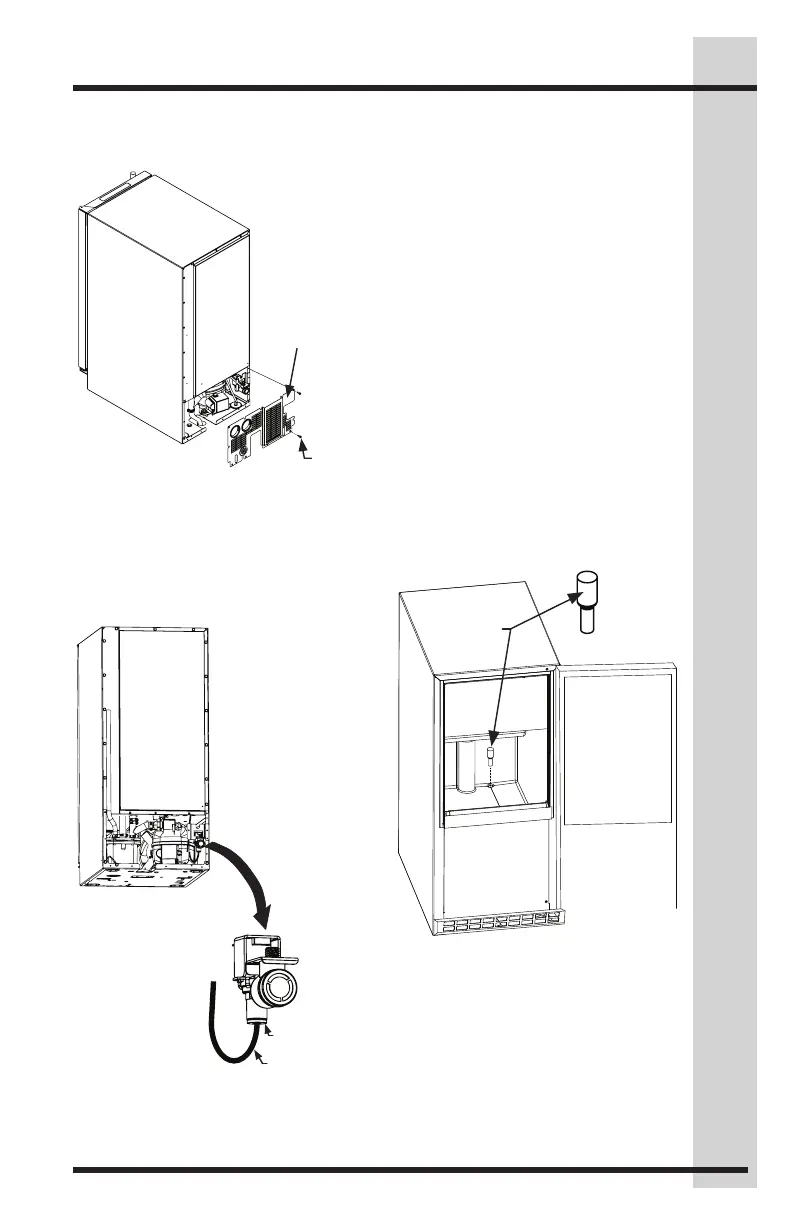

Figure 3
Access cover
Screw
Figure 4
White Collar
Plastic Outlet
Water Line
To reconnect the
water outlet line:
Simply insert the
plastic tubing into
the white collar
and push until it
stops (about 1/2",
12 mm, of water
line will enter
the valve).
To disconnect
the water outlet
line: Push up on
the white collar
and pull the
plastic water line
from the bottom
of the water valve.
6. Remove the access cover from the
rear of the ice machine (Figure 3).
Draining Water for Factory
Installed Drain Pump Applications
Follow steps 1 through 12 for the gravity
drain then do the following:
13. Install the winterization plug in the
water drain hole inside the ice bin
(Figure 5).
Winterization
plug
Figure 5

Electrolux UL15IM20RS Specifications

General

Refrigerant	R134a
Door Style	Reversible
Ice Shape	Cube
Voltage	115V
Amperage	15A
Installation	Built-In or Freestanding
Water Connection	Required
