Element (ELCHW321) 32 inch LCD Television Service Manual
Proprietary & Confidential Page 17

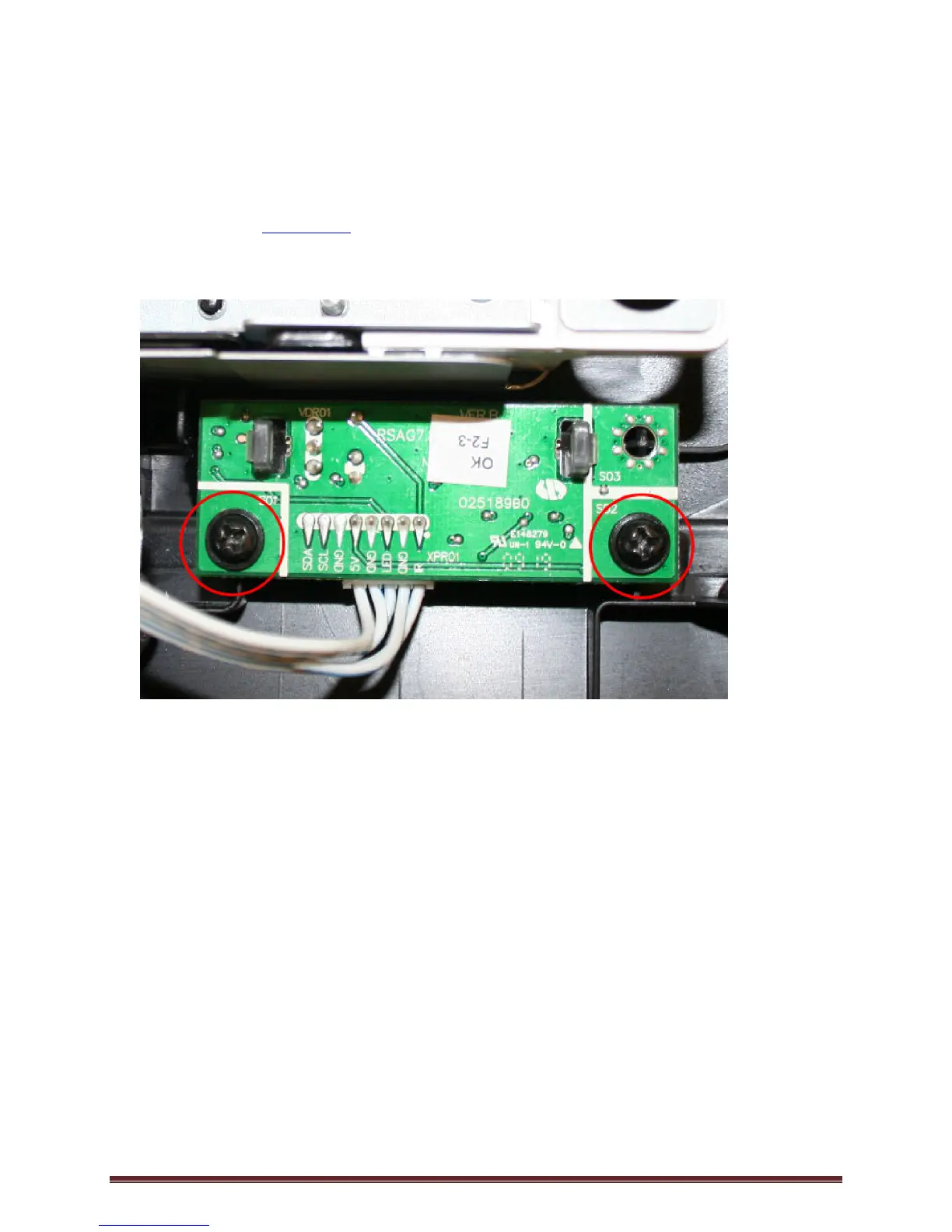

7. LED/IR Board Replacement
• Remove the Back Cover.
• Remove the 2 screws securing the LED/IR Board to the unit. Gently lift the board up then
disconnect the cable.
(Figure 18)
