Page 12
EZWSR*1C, *2C LZWSR*1C, *2C
1000001734 (Rev. K - 04/18)

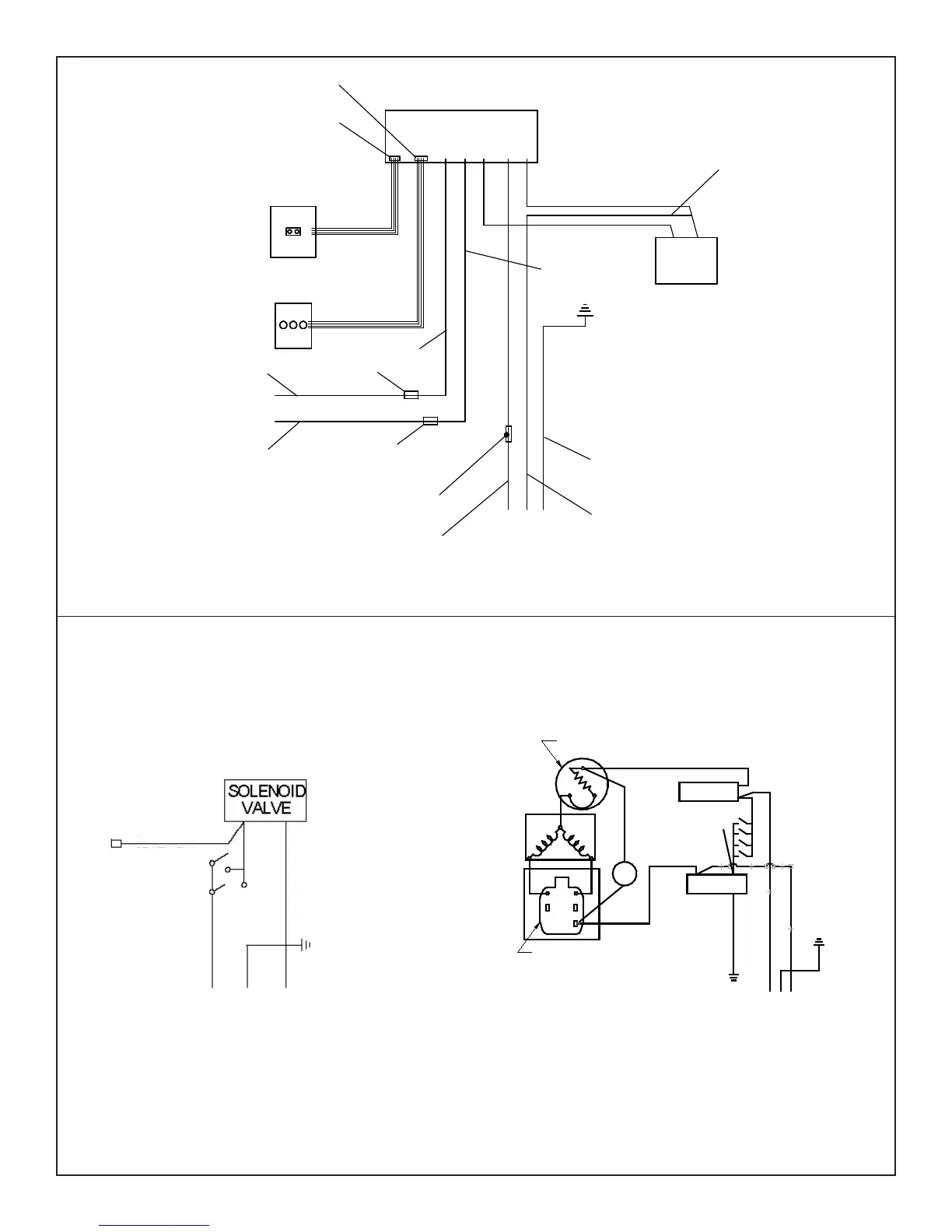

WIRING DIAGRAM - NON REFRIGERATED SIDE
WIRING DIAGRAM - REFRIGERATED SIDE
NOTE: UNITS PRODUCED 2008 AND BEFORE
WILL NEED ADAPTERS TO SWITCH LINE AND
NEUTRAL WIRES.
WIRING DIAGRAM - BOTTLE FILLER 115V
1
C
S
FAN
1
WHT
5
2
6
3
M
3
2
GND
SMOOTH
RIBBED
RELAY
OVERLOAD
COLD
CONTROL
SOLENOID
VALVE
GREEN
BLK
GND
PURPLE OR
YELLOW JUMPER
MAIN BOARD
I.R. BOARD
LED BOARD
GND
SOLENOID
POWERCORD
PIGGY BACK
TERMINAL ON
POWER CORD
FOUR PIN
CONNECTOR
FIVE PIN
CONNECTOR
CONNECTOR FROM
POWER CORD
LINE VOLTAGE
SMOOTH BLACK
GROUND
GREEN
NEUTRAL
WHITE RIBBED
CONNECTOR
VIOLET TO UNIT
SOLENOID
YELLOW TO
BILEVEL SOLENOID
YELLOW
CONNECTOR
VIOLET
GN
WHITE
RED
PURPLE
JUMPER
OR YELLOW
JUMPER
RIBBED
(NEUTRAL)
SMOOTH
(LINE)
GND
GREEN
(For Filtered Model)
YELLOW TO L.H. SOLENOID
(For Bi-Level Model)
To Next Page
