Elkay LZWSR 1C Series User Manual

Page 19 1000001734 (Rev. K- 04/18)
EZWSR*1C, *2C LZWSR*1C, *2C
FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.834.4816
REPAIR SERVICE INFORMATION TOLL FREE NUMBER 1.800.260.6640
PRINTED IN U.S.A.
ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484 • www.elkay.com
Fig. 20
DESCRIPTION
98543C
98631C
98544C
98545C
98632C
98546C
98547C
1000001813
98549C
98551C
98568C
98552C
0000001337
1000001812
1000001877
Kit - Electrical Package 115V
Kit - Electrical Package 220V
Kit - IR Sensor 115V
Kit - Solenoid Valve Replacement 115V
Kit - Solenoid Valve Replacement 220V
Kit - Aerator Replacement
Kit - Top Cover Replacement
Kit - Drain Tower/Basin Gasket
Kit - Hardware & Waterway Parts
Kit - LZ Filter Mounting Cover (L)
Kit - LZ Filter Mounting Cover (S)
Kit - Retro Filter Mounting
Kit - Basin Replacement
Kit - Bottle Filler Drain
Kit - Drain Replacement
REPLACEMENT PART KITS
PART NO.
1
2
3
2

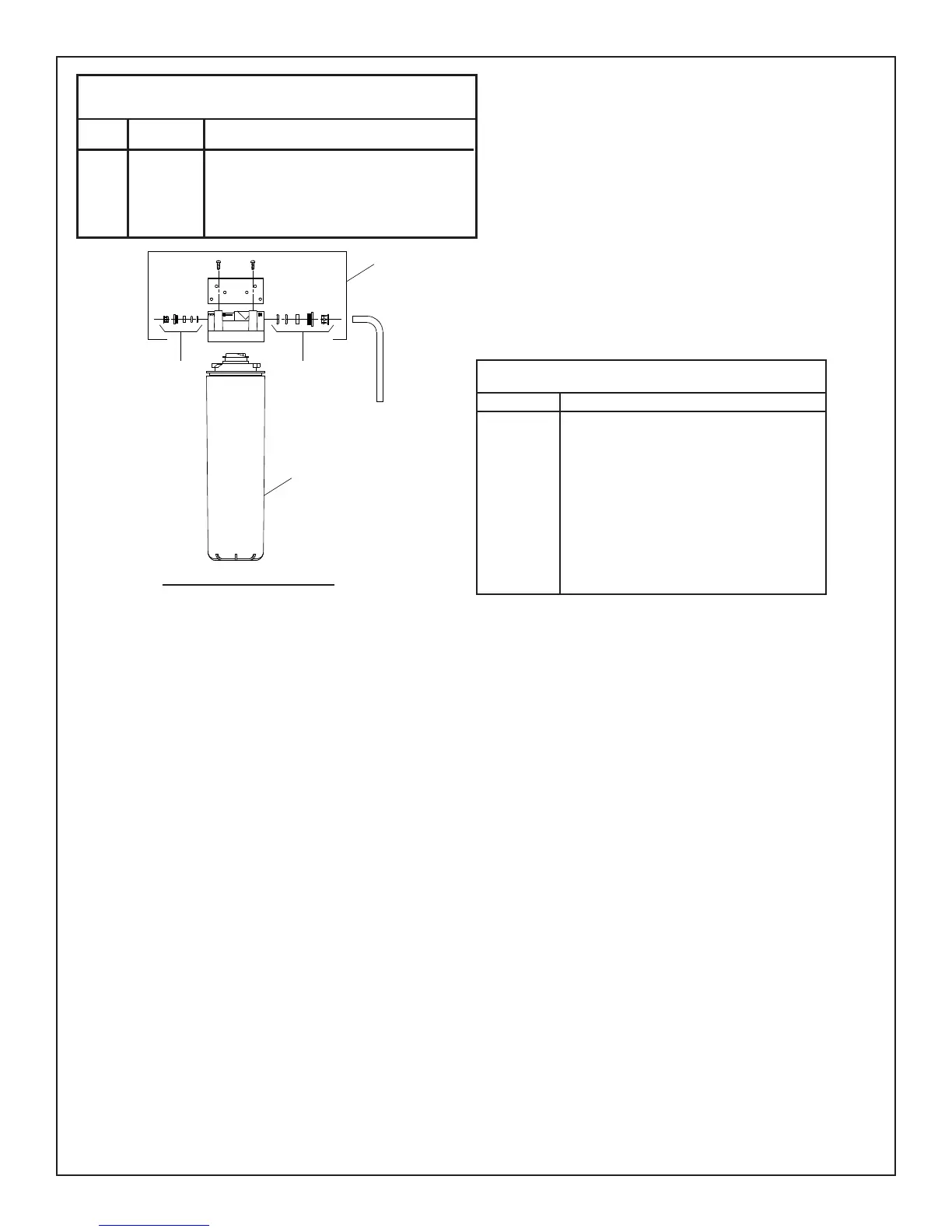

WATER FILTER EXPLODED VIEW
DESCRIPTION
1
2
3
ITEM
NO.
PART NO.
51300C
98926C
0000000746
Filter Assy-3000 Gal.
Kit-Filter Head Fittings-includes John Guest
Fittings
Assy-Filter & Brkt includes Filter Head/Mtg Brkt/
John Guest Fittings/Screws
WATERSENTRY
®
PLUS FILTER PARTS LIST
(See Fig. 20)
3/8”
Water
Inlet
