9
emersonfans.com
Please contact 1-800-654-3545 for further assistance
ETL Model No.: CF235

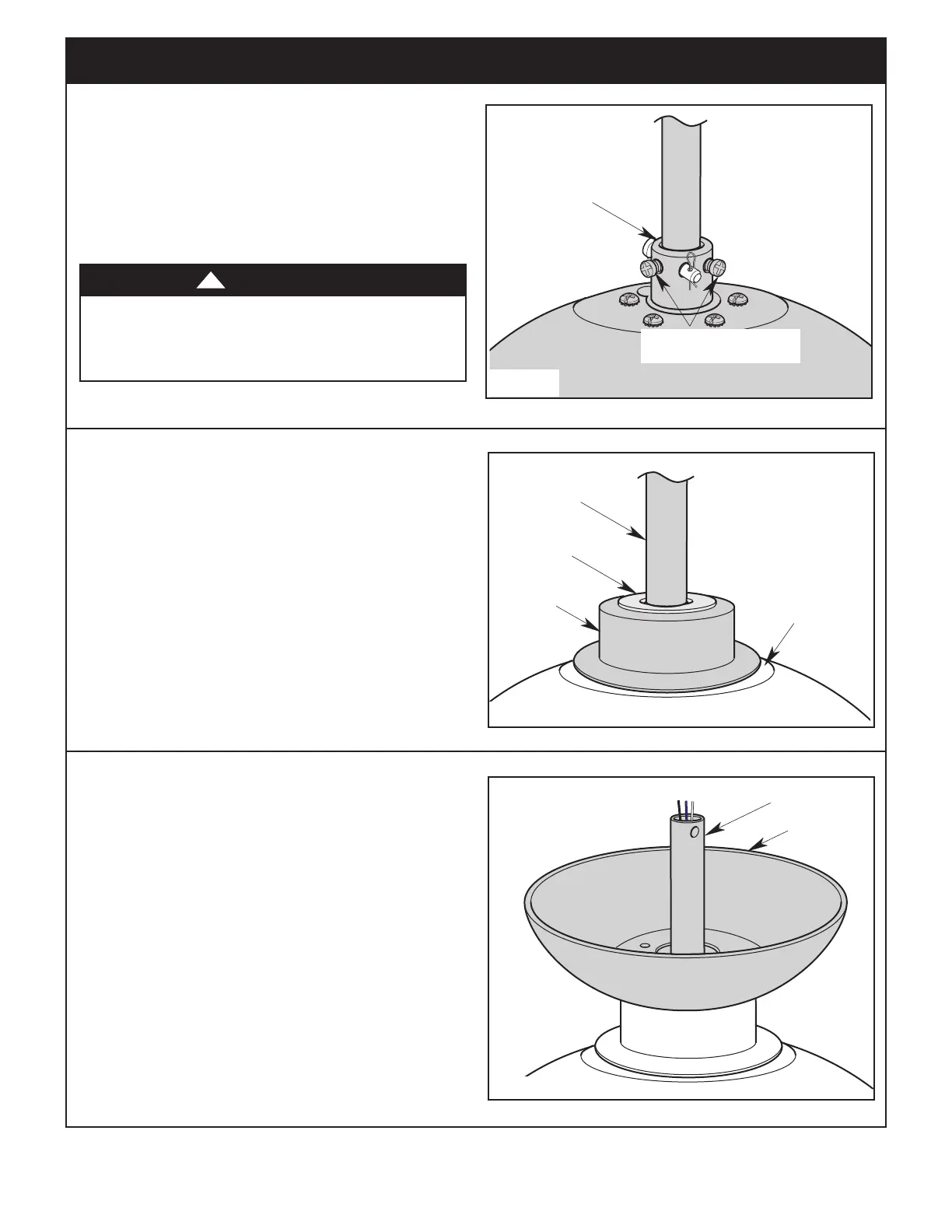

3. Ceiling Fan Assembly (Continued)
MOTOR
COUPLER
RETIGHTEN TWO PHILLIPS
HEAD SET SCREWS
Figure 9
3.9
While pulling up on the 4.5” Downrod, retighten the Two
Phillips Head Set Screws to secure the 4.5” Downrod in
the Motor Coupler (Figure 9).
NOTE: The Set Screws must be properly installed
as described above, or fan wobble could result.
It is critical that the set screws in the motor coupler are
properly installed and securely tightened. Failure to
verify that the set screws are properly installed could
result in the fan falling.
WARNING
!
4.5" DOWNROD
GROMMET
COUPLER
COVER
FAN MOTOR
ASSEMBLY
Figure 10
3.10
Make sure the Grommet is properly installed in the
Coupler Cover, then slide the Coupler Cover on the
4.5” Downrod until it rests on the Fan Motor Assembly
(Figure 10).
4.5" DOWNROD
CEILING
COVER
Figure 11
3.11
Place the Ceiling Cover over the 4.5” Downrod
(Figure 11).
Be sure that the Ceiling Cover and the Coupler Cover
are both oriented correctly (Figure 11).
To Next Page
