EN Drive Installation Manual

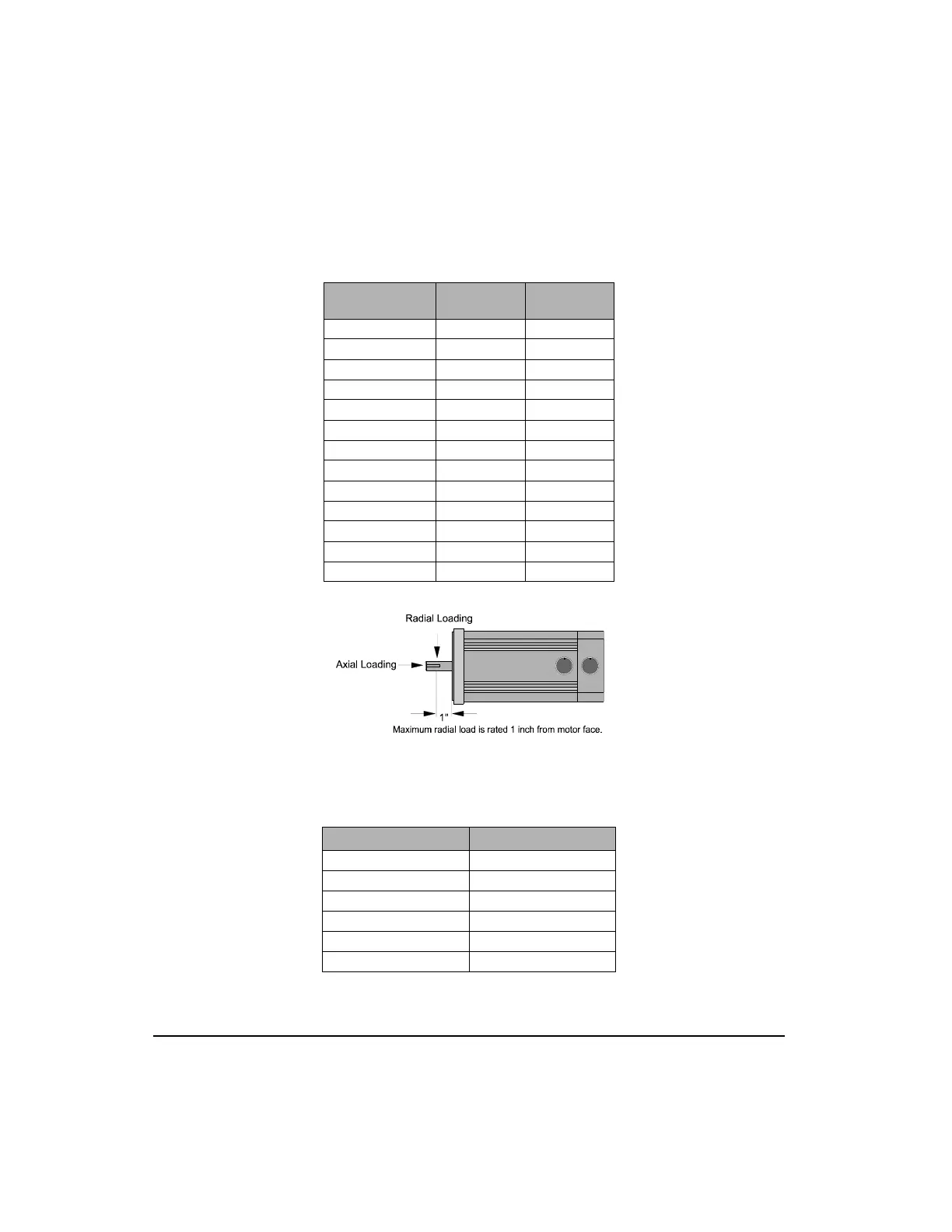

Axial/Radial Loading
Figure 40: Axial/Radial Loading
IP Ratings
Motor
Max Radial
Load (lb.)
Max. Axial
Load (lb.)
NTE/M-207 20 15
NTE/M-212 20 15
NTE/M-320 40 25
NTE/M-330 40 25
NTE/M-345 40 25
NTE/M-355 40 25
MGE-205 20 15
MGE-208 20 15
MGE-316 40 25
MGM-340 40 25
MGE/M-455 100 50
MGE/M-490 100 50
MGE/M-4120 100 50
Motor Rating
MG (all) IP65
NTE/M-207 IP65
NTE/M-207 (w/o seals) IP54
NTE/M-212 IP65
NTE/M-212 (w/o seals) IP54
NTE/M-3XX (all) IP65
