Emerson FB2200 Flow Computer Quick Start Guide
D301788X012
March 2019
18
Solar Power (Internal Regulator)

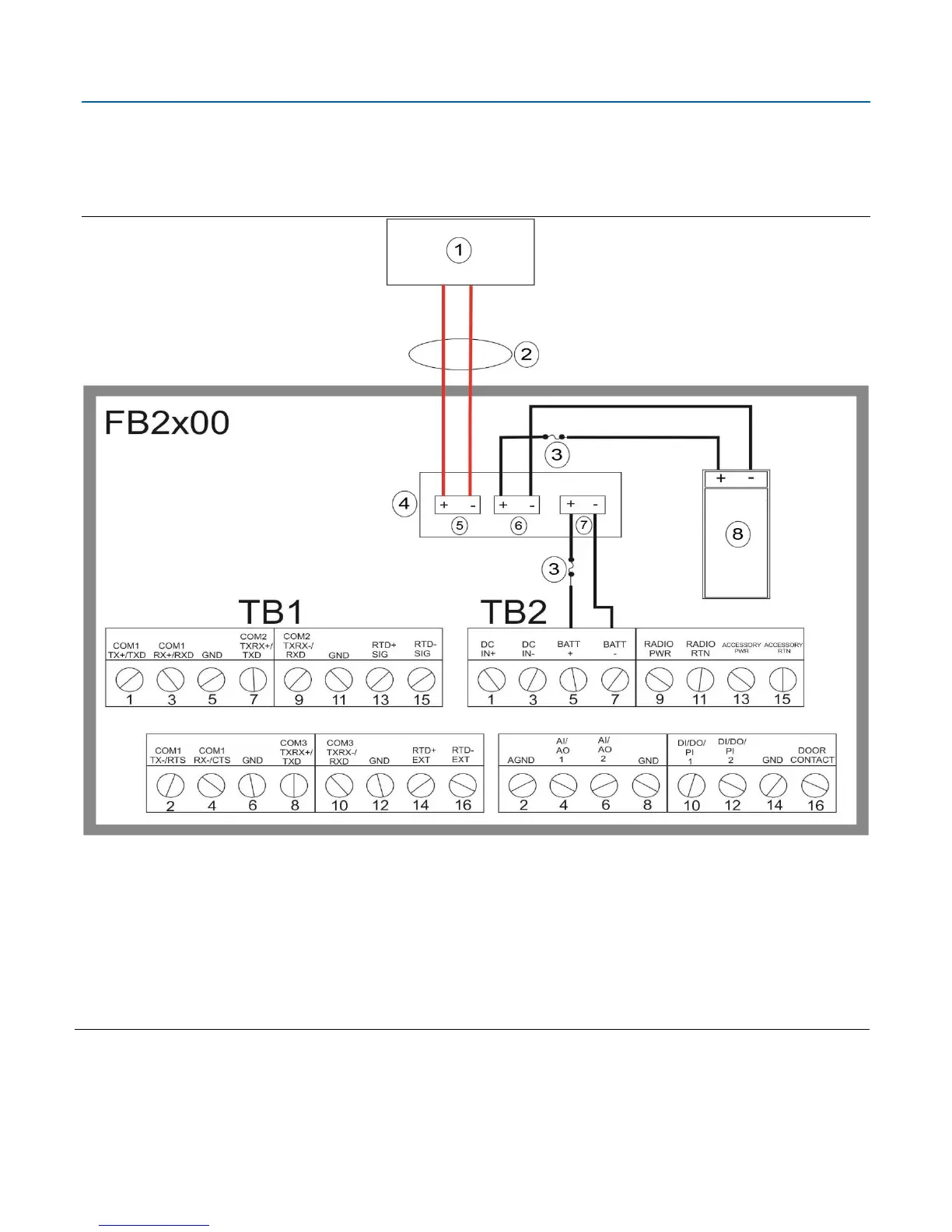

For the solar panel option using a solar regulator built into the flow computer enclosure,
connect the pre-wired cable to the solar panel.
1
Solar Panel
2
Conduit
3
Fast acting 6.3A one time fuse
4
Solar Regulator
5
Solar
6
Battery
7
Load
8
Battery
