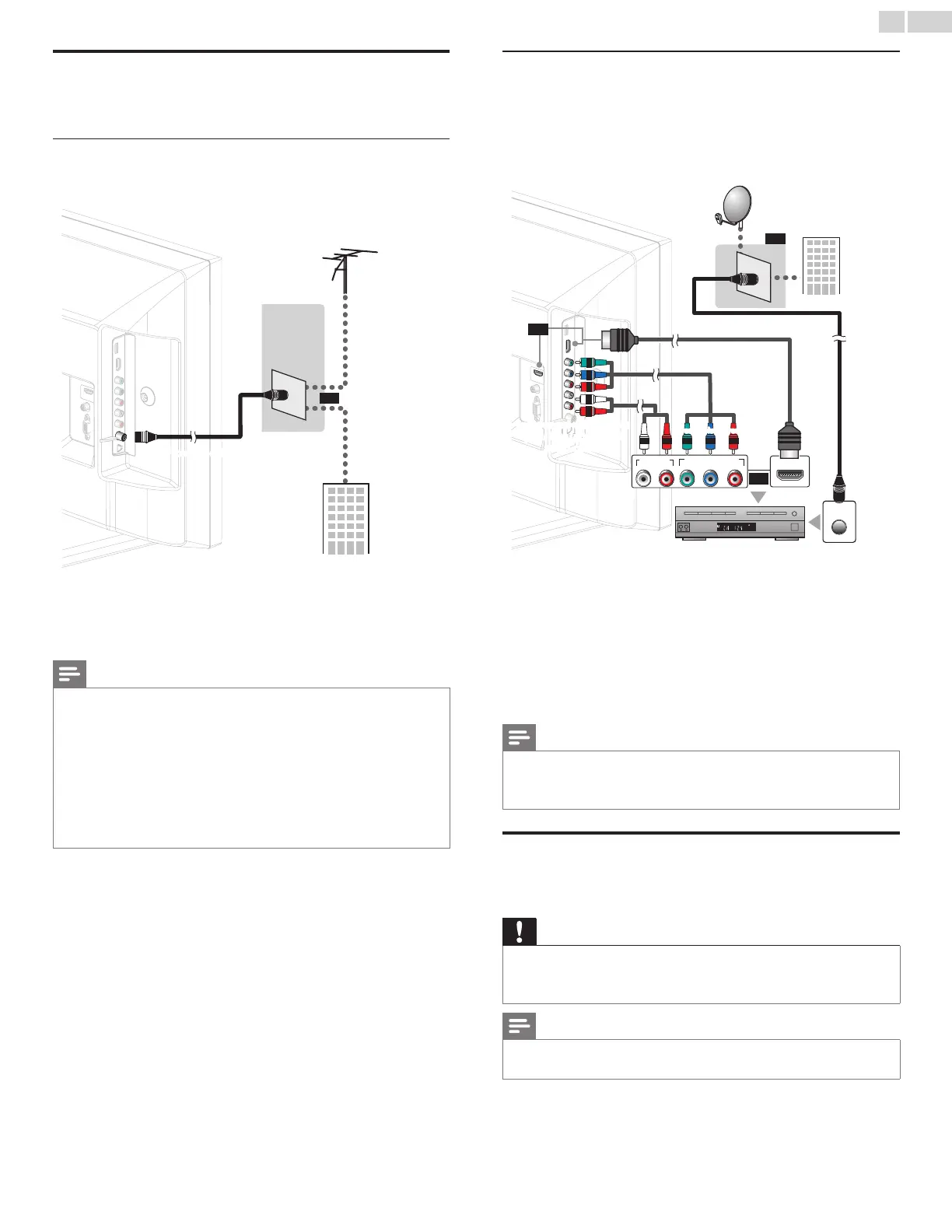

Connecting the antenna or the cable
Be sure your antenna or other device is connected properly before
plugging in the AC power cord.
Antenna Connection
Connect the RF coaxial cable on your home outlet to the antenna input
jack of this unit.
VHF / UHF
analog
or
DTV antenna
cable TV signal
or
RF coaxial cable
Once connections are completed, turn on the unit and begin initial
setup. Channel scanning is necessary for the unit to memorize all
available channels in your area.
Initial Setup
➠
p. 11
Note
• If you have any question about the DTV’s antenna, visit
www.antennaweb.org for further information.
• Depending on your antenna system, you may need different types of combiners
(mixers) or separators (splitters) for HD TV signal. The minimum RF bandpass on these
devices is 2,000MHz or 2GHz.
• For your safety and to avoid damage to this unit, please unplug the RF coaxial cable
from the antenna Input jack before moving the unit.
• If you did use an antenna to receive Analog TV, it should also work for DTV reception.
Outdoor or attic antennas will be more effective than a set-top box or inside antenna.
• To switch your reception source easily between antenna and cable, install an antenna
selector.
• If you are not receiving a signal from your cable service, contact the Cable provider.
Connection to Cable Receiver or Satellite Box
Use an HDMI or Component Video cables to connect the HDMI or
the Component Video Input jacks of the unit to the HDMI or the
Component Video output jacks of the cable receiver / satellite box.
If you connect to the unit’s Component Video Input jacks, connect
Analog Audio cables to the Analog Audio L/R Input jacks right below
the Component Video connector jacks.
STEREO
PCM
COMPONENT VIDEO OUT
Pr/CrPb/CbY
AUDIO OUT
RL
ANT IN
HDMI OUT
(red)(blue)(green)
cable receiver / satellite box
cable TV signal
including PPV
component video cables
(red / blue / green) and
audio cables
RF coaxial cable
or
or
HDMI cable
satellite dish
or
You can also connect this unit to the cable receiver or satellite box
other than the HDMI or the Component Video output jacks or
Composite Video output jack (
➠
p. 26) because they might have
different output jacks.
Required cables and connecting methods of the cable receiver /
satellite box, or the availability channel for the clear QAM may differ
depending on the cable / satellite provider or local TV broadcaster.
For more information, please contact your cable / satellite provider or
local TV broadcaster.
Note
• Use an HDMI cable with the HDMI logo (a certied HDMI cable). High Speed HDMI
cable is recommended for the better compatibility.
• Only the left loudspeaker reproduces sound for mono equipment. Use a mono to
stereo adapter (not supplied) for sound reproduction via all internal loudspeakers.
Plugging in the AC power cord
Make sure that the AC power cord must be plugged to an AC outlet
after all the necessary connections are made.
Caution
• Do not connect the AC power cord to a power supply outside the indicated voltage of
this unit (AC 120V).
• Connecting the AC power cord to a power supply outside of this range may result in
re or electrical shocks.
Note
• Each time you plug in the AC power cord, no operations will be performed for a few
seconds. This is not a malfunction.
