Emerson LC420EM8 User Manual

10
EN
P
REPARATION

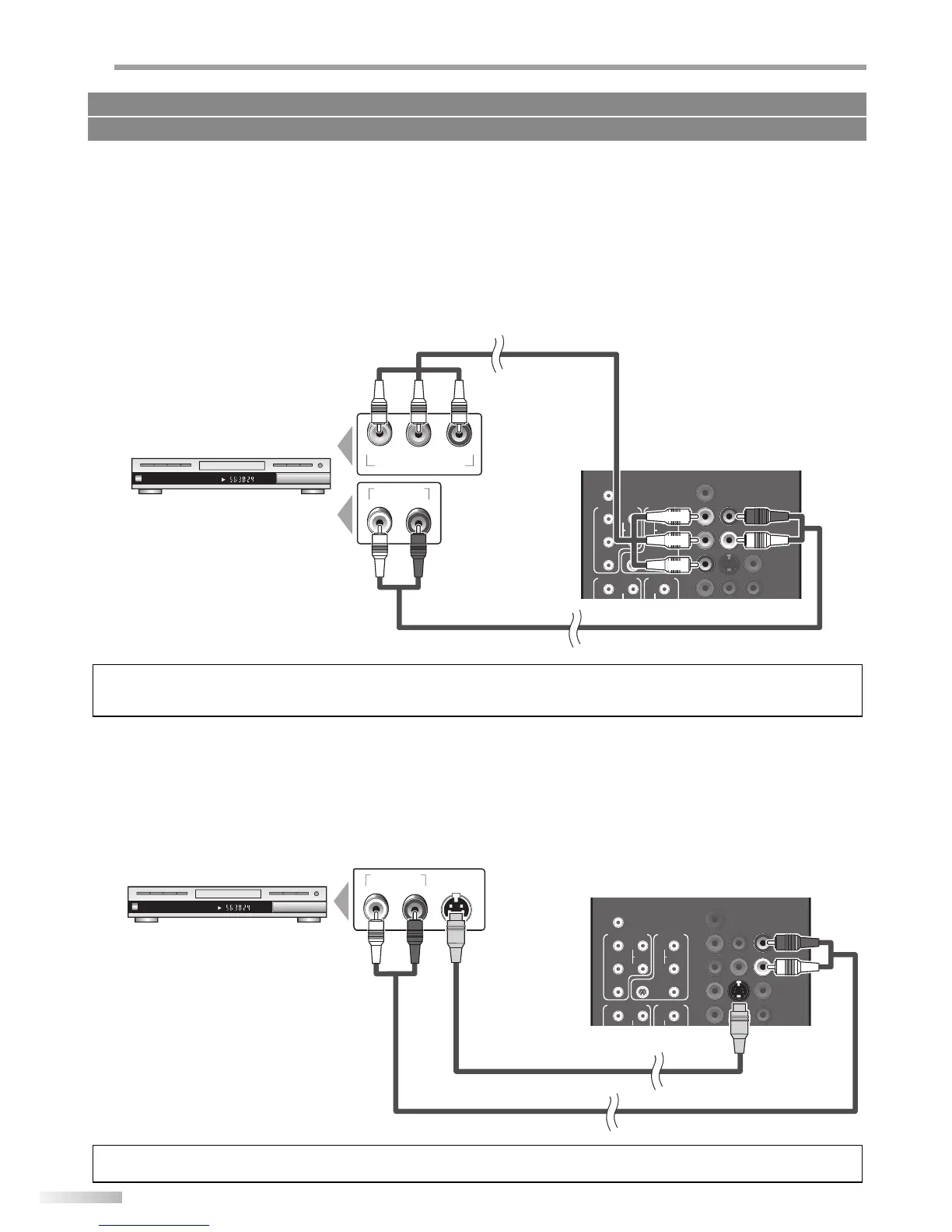

[Component Video Connection]
Component video connection offers better picture quality for video devices connected to the unit.
Use a component video cable to connect the unit to external video devices equipped with component video output
jacks.
If you connect to the unit’s COMPONENT1 or COMPONENT2 video input jacks, connect an RCA audio cable to the audio
L/R jacks of COMPONENT1 or COMPONENT2 accordingly.
e.g.)
COMPONENT 1 VIDEO 1
AUDIO
YR
Pb
Pr
L
AUDIO
S VIDEO VIDEO
R
L
COMPONENT 2 AUDIO-OUT
Y
R R
DIGITAL
AUDIO OUT
(COAXIAL)
COMPONENT VIDEO OUT
Pr/CrPb/CbY
AUDIO OUT
RL
CHAPTER 15
REPEAT A-B
TITLE 5
Note:
• This unit accepts 480i / 480p / 720p / 1080i / 1080p video signals.
• When the noise appears on the TV screen, disconnecting the VGA cable may reduce it.
[S-video Connection]
S-video connection offers good picture quality for video devices connected to the unit.
Use an S-video cable to connect the unit to external video devices equipped with S-video output jack.
If you connect to the unit’s VIDEO1 S-video or VIDEO2 S-video input jack, connect an RCA audio cable to the audio L/R
jacks of VIDEO1 or VIDEO2 accordingly.
e.g.)
COMPONENT 1 VIDEO 1
AUDIO
YR
Pb
Pr
L
AUDIO
S VIDEO VIDEO
R
L
COMPONENT 2 AUDIO-OUT
Y
R R
DIGITAL
AUDIO OUT
(COAXIAL)
CHAPTER 15
REPEAT A-B
TITLE 5
AUDIO OUT
RL
S-VIDEO
OUT
Note:
• If you connect to the S-video input jack and the video input jack at the same time, the S-video connection will have priority.
Cables not included.
Please purchase the necessary cables at your local store.
DVD player with
the S-video output jack
S-video cable
RCA audio cable
rear of this unit
DVD player with
the component video output jacks
component video cable
RCA audio cable
rear of this unit
(red)(blue)(green)
green
blue
red

Emerson LC420EM8 Specifications

General

Brand	Emerson
Model	LC420EM8
Category	LCD TV
Language	English
