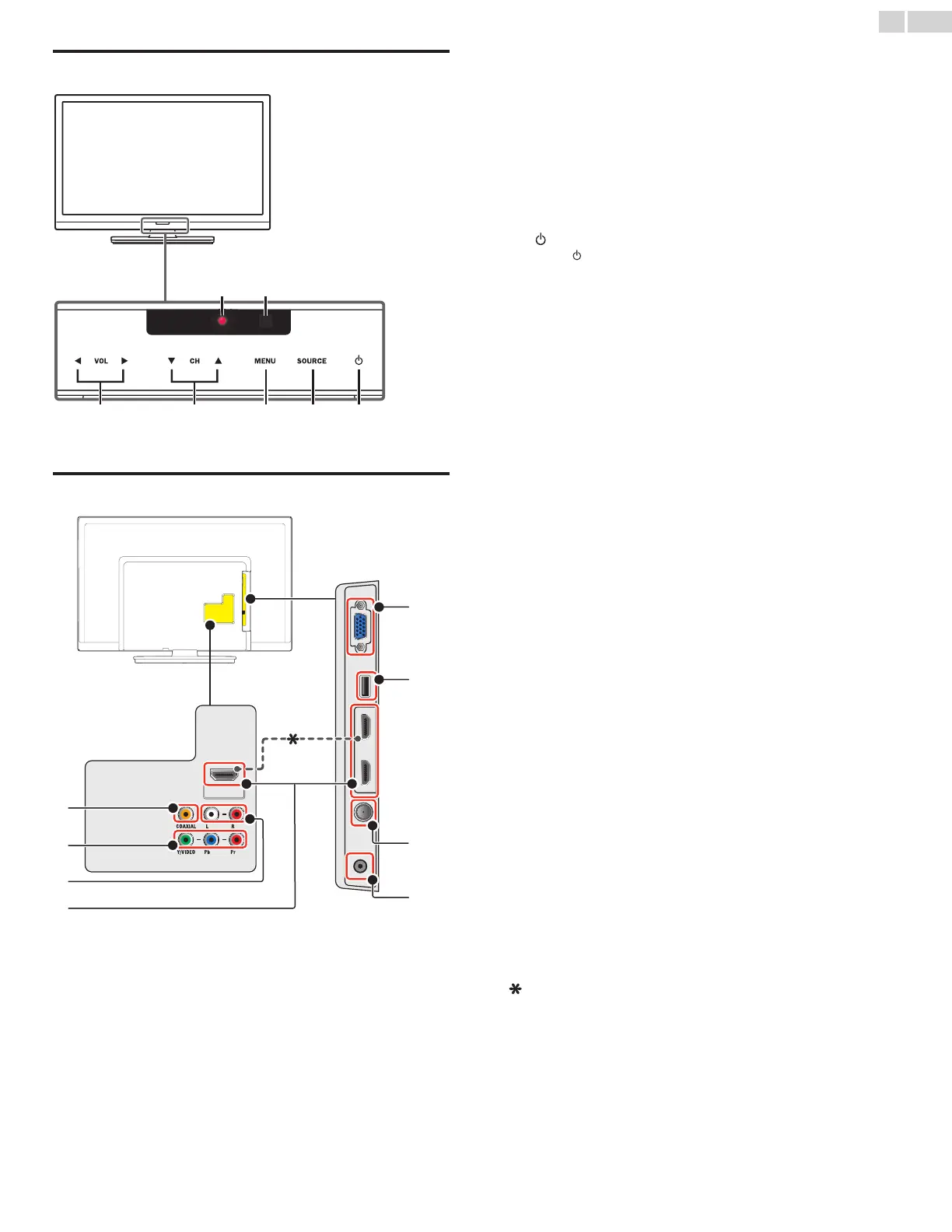

Controlpanel
a VOL◄/►
Touch to adjust volume down (◄) / up (►) or to move
left (◄) / right (►) when selecting menu items.
b CH▲/▼
Touch to select channels or to move up (▲) / down (▼) when
selecting menu items.
c MENU
Touch to display the main menu.
d SOURCE
Touch to select the connected devices.
e (POWER-ON/STANDBY-ON)
Touch
to Turn the unit On and go into Standby mode.
To completely Turn Off the unit, you must unplug the AC power
cord.
f PowerOnindicator
Lights up red when the unit is in Standby mode and  ashes while
the unit is Turning On.
g
Infraredsensor
Receives IR signals from remote control.
a b c d e
f g
Terminals
h DigitalAudioOutputjack
Digital Audio (S/PDIF) Output to home theaters and other Digital
Audio systems.
i Component(Y/Pb/Pr)/CompositeVideo(VIDEO)Inputjacksfor
VIDEO
Composite Video Input (VIDEO) jack is shared jack with
Component Video Input (Y) jack.
j AnalogAudio(L/R)Inputjacks
Connect Analog Audio signals from;
- HDMI-DVI / Analog Audio (L/R) jacks signal
- Component Video / Analog Audio (L/R) jacks signal
- Composite Video / Analog Audio (L/R) jacks signal
- PC Connection / Analog Audio (L/R) jacks signal with Stereo
mini 3.5mm plug Audio cable on PC
k HDMIInputjack(s)
Digital audio and video Input from high de nition Digital devices
such as Blu-ray disc players, cable boxes and satellite set-top
boxes.
l PCInputjack
VGA cable connection for PC.
m USBterminal
Data Input from USB Memory Stick only.
Do not connect any device to this terminal such as; Digital
camera, keyboard, mouse, etc.
n 75ohmCable/Antennaconnection
Signal Input from an antenna, cable or satellite.
o HeadphoneAudioOutputjack
Headphone 3.5mm stereo jack for personal listening.
These HDMI Inputs are available on 26 inch and larger screen size
TVs.
h
l
n
m
o
i
j
k
