Emerson LE320EM3 User Manual

English
29

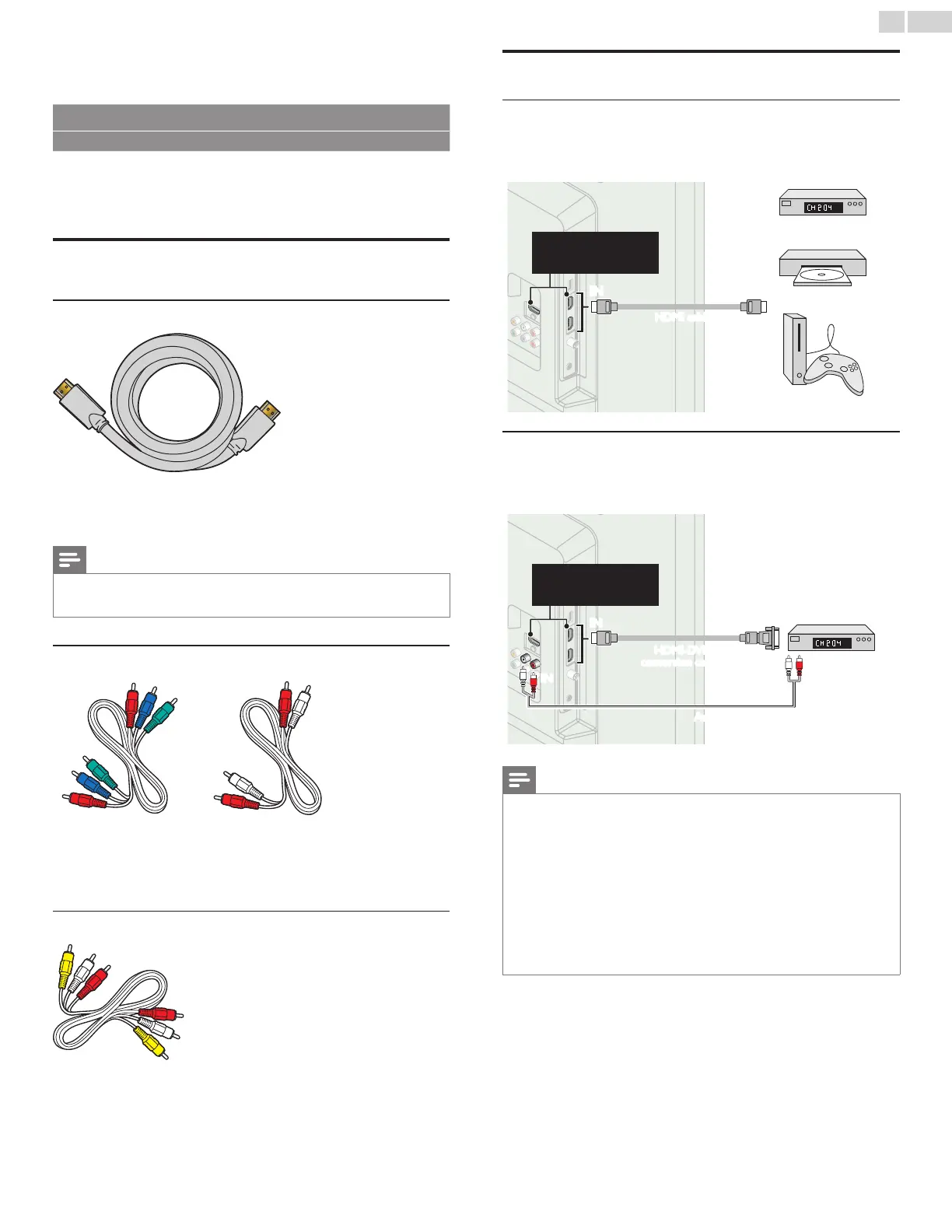

7 Connectingdevices
No supplied cables are used with these connections:
• Please purchase the necessary cables at your local store.
Before you connect AC power cord:
Be sure other devices are connected properly before plugging in the AC
power cord.
Selectingyourconnectionquality
HDMI-Highestquality
Supports high-denition Digital signals and gives highest picture and
sound quality. Video and audio signals are combined in one cable.
You must use HDMI for full high-denition video and to enable
fun-Link (HDMI CEC).
Note
• Emerson HDMI supports HDCP (High-bandwidth Digital Contents Protection). HDCP
is a form of Digital Rights Management that protects high denition content in Blu-ray
discs or DVDs.
Component(YPbPr)-Highquality
Supports high-denition Analog signals but gives lower picture quality than
HDMI. Component (Y/Pb/Pr) Video cables combine red / green / blue
video cables with red / white audio (L/R) cables. Match the cable colors
when you connect to the TV.
Composite-Basicquality
For analog connections. Composite Video / Audio Analog cable usually
combine a yellow video cable with red / white audio (L/R) cables. With
this unit, yellow cable must be connected to Y (green) of Component
Video Input jacks.
Connectingyourdevices
HDMIDigitalconnection
HDMI connection offers the highest picture quality.
HDMI (High-Denition Multimedia Interface) transports high denition
Digital video and multi-channel Digital Audio through a single cable.
ININ OUT
set-topbox
or
Blu-raydiscplayer
or
HDgameconsole
HDMIcable
TheseHDMIInputsare
availableon26inchand
largerscreensizeTVs.
HDMI-DVIconnection
This unit can be connected to your device that has a DVI terminal.
Use an HDMI-DVI conversion cable for this connection and it requires
audio cable for Analog Audio signal as well.
ININ OUT
IN
IN
OUT
HDMI-DVI
conversioncable
Audio(L/R)cables
cablereceiveror
satelliteboxwiththe
DVIOutputjack
TheseHDMIInputsare
availableon26inchand
largerscreensizeTVs.
Note
• Use an HDMI cable with the HDMI logo (a certied HDMI cable). High Speed HDMI
cable is recommended for the better compatibility.
ForHDMIconnection
• The unit accepts 480i / 480p / 720p / 1080i, 1080p 24/30/60Hz of video signals, 32kHz
/ 44.1kHz and 48kHz of audio signals.
• This unit accepts 5.1 channel audio signal (Dolby Digital) and 2 channel audio signal
(LPCM).
• This unit accepts only signals in compliance with EIA861.
ForHDMI-DVIconnection
• The unit accepts 480i, 480p, 720p, 1080i and 1080p video signals.
• HDMI-DVI connection requires separate audio connections as well and the audio
signals are output as Analog (L/R) Audio.
• DVI does not display 480i image which is not in compliance with EIA/CEA-861/861B.
