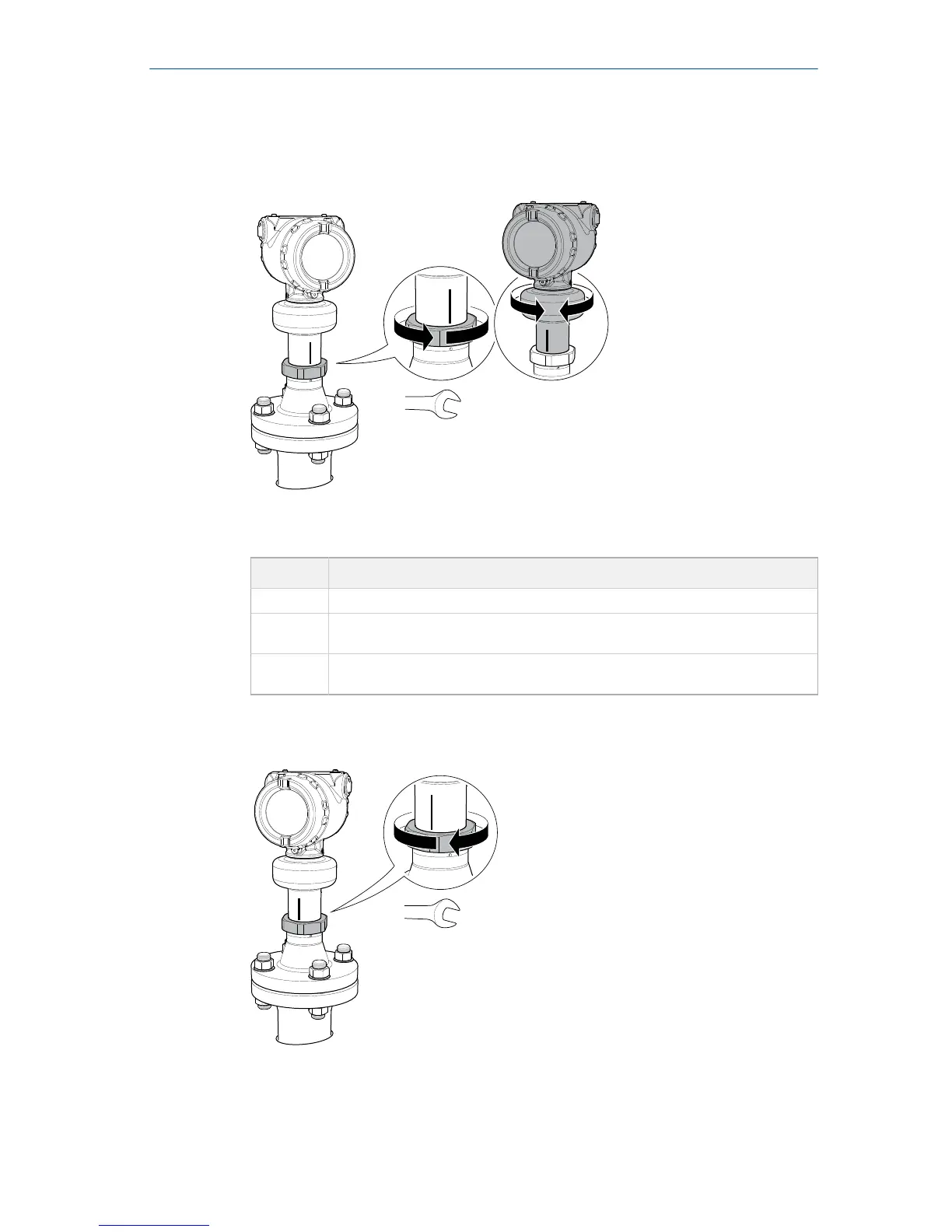

4 Align transmitter head
1. Loosen the nut slightly and turn the transmitter.
60 mm
2. Verify the transmitter head is properly aligned.
Option
Description
Open tank Align the marking on the sensor module toward the tank wall (see Figure 4-1).
Still pipe Align the external ground screw toward the holes of the still pipe (see
Figure 4-2).
Chamber Align the external ground screw toward the process connections (see
Figure 4-3).
3. Tighten the nut.
60 mm
Torque 355 in-lb (40 N-m)
Quick Start Guide
March 2018
18 Rosemount 5408 and 5408:SIS Level Transmitters
