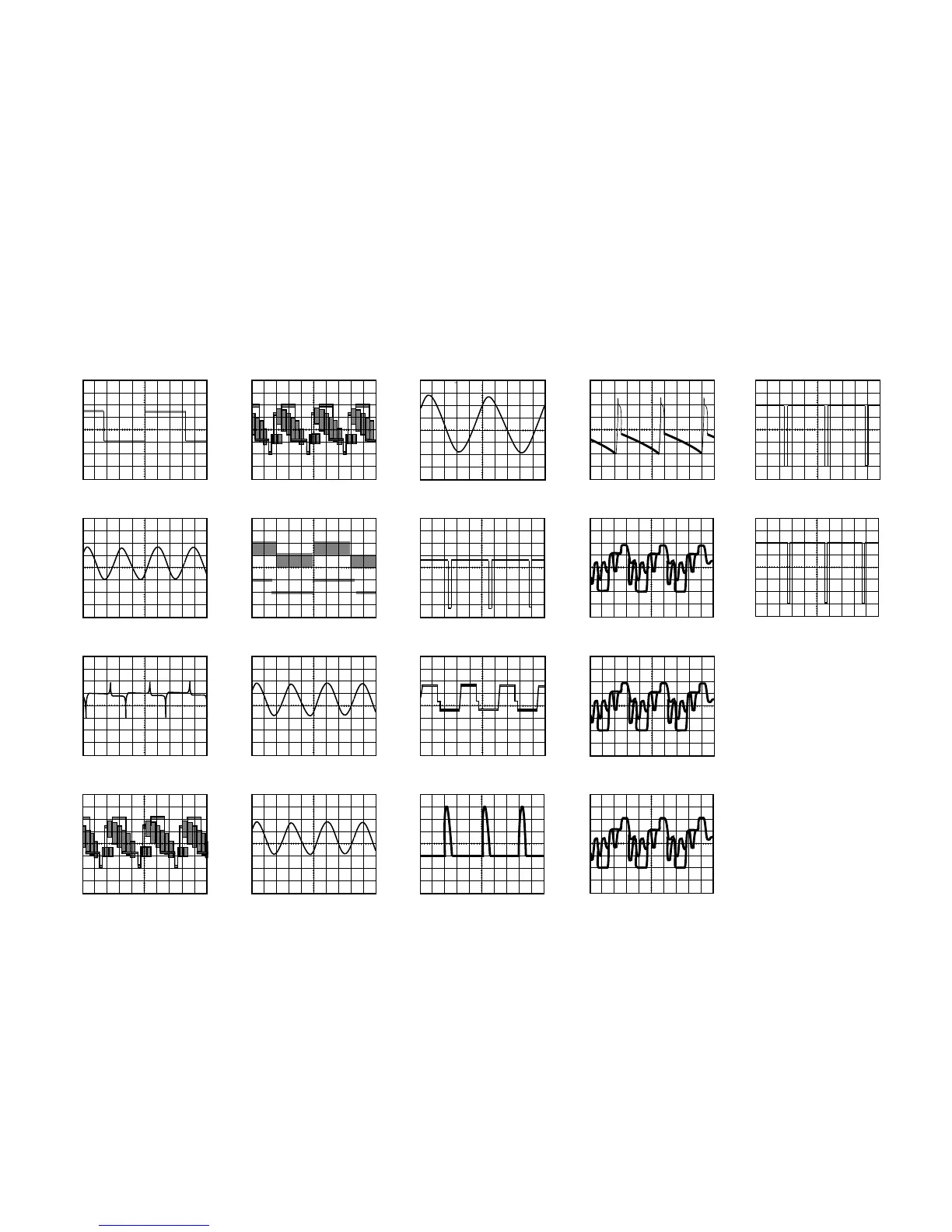

WAVEFORMS
WF2 MAIN 2/4 SCHEMATIC DIAGRAM
IC401 PIN 61
WF1 MAIN 2/4 SCHEMATIC DIAGRAM
J190 RF-SW
Upper: WF6 Lower: WF1
MAIN 2/4 SCHEMATIC DIAGRAM
J189 PB-C-MONI
WF5 MAIN 2/4 SCHEMATIC DIAGRAM
J188 V-OUT
WF4 MAIN 2/4 SCHEMATIC DIAGRAM
IC401 PIN 42
WF9 MAIN 2/4 SCHEMATIC DIAGRAM
IC401 PIN 7
WF8 MAIN 2/4 SCHEMATIC DIAGRAM
J187 A-OUT
WF3 MAIN 1/4 SCHEMATIC DIAGRAM
J116 CTL
WF7 MAIN 3/4 SCHEMATIC DIAGRAM
IC301 PIN 48
WF11 MAIN 3/4 SCHEMATIC DIAGRAM
IC301 PIN 11
WF10 MAIN 3/4 SCHEMATIC DIAGRAM
IC301 PIN 20
WF13 MAIN 4/4 SCHEMATIC DIAGRAM
CN571 PIN 5
WF15 CRT SCHEMATIC DIAGRAM
Q502 COLLECTOR
WF16 CRT SCHEMATIC DIAGRAM
Q503 COLLECTOR
WF12 MAIN 4/4 SCHEMATIC DIAGRAM
Q571 COLLECTOR
WF14 CRT SCHEMATIC DIAGRAM
Q501 COLLECTOR
0.2 V 0.1 µs
2 V 5 ms
0.2 V 5 V 5 ms
0.5 V 20 µs
0.25 V 20 µs
0.5 V
0.5 V 0.5 ms
1 V 10 ms
0.2 V 0.5 ms
0.5 ms
1 V 20 µs
2 V
5 ms
20 µs200 V
10 V 5 ms
20 V 20 µs
20 V 20 µs
20 V 20 µs
WF17 MAIN 1/4 SCHEMATIC DIAGRAM
IC201 PIN 58
1 V
WF18 MAIN 1/4 SCHEMATIC DIAGRAM
IC201 PIN 59
1 V 5 ms
20 µs
WAVEFORM NOTES
INPUT: NTSC COLOR BAR SIGNAL
OTHER CONTROLS: CENTER POSITION
VOLTAGES SHOWN ARE RANGE OF
OSCILLOSCOPE SETTING
