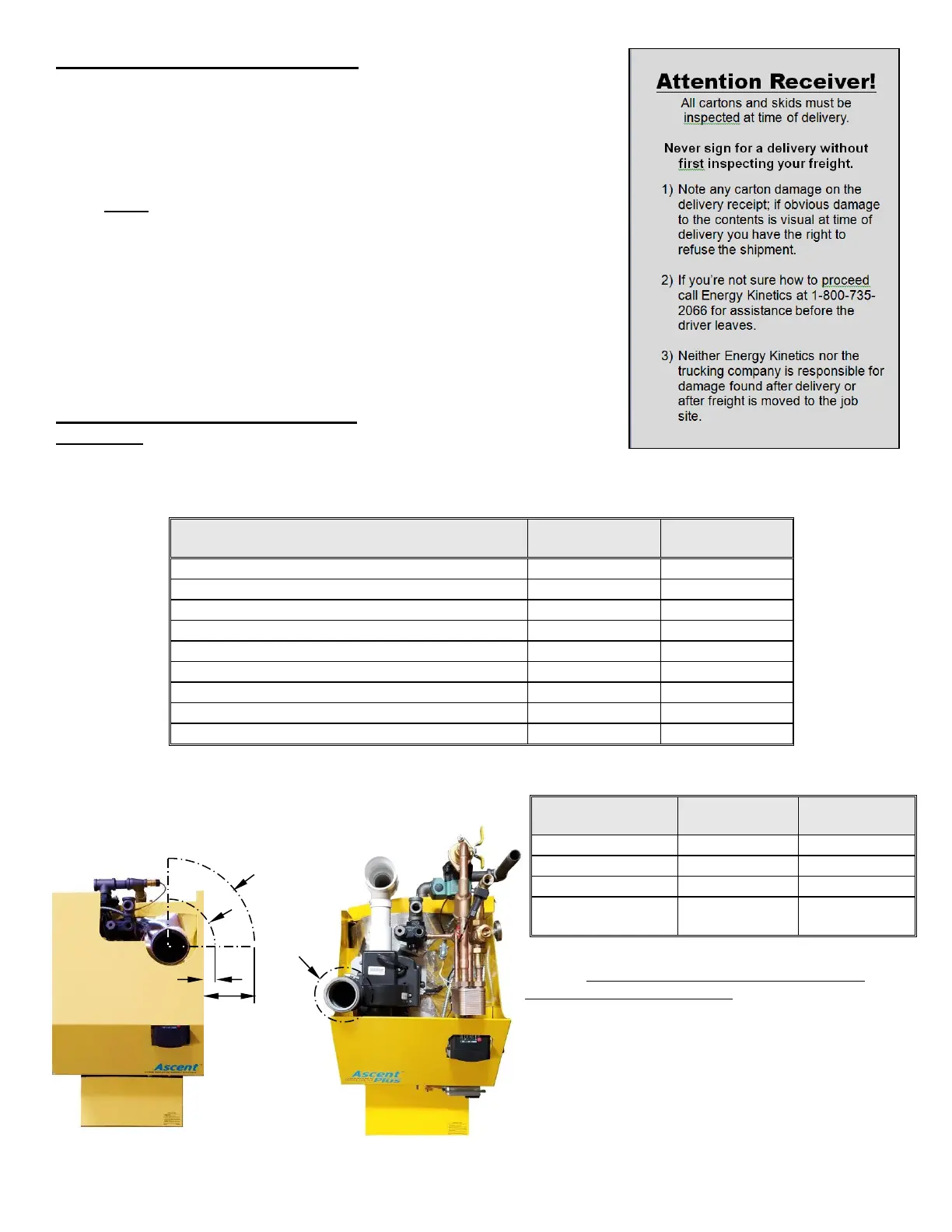

ENERGY KINETICS SYSTEM 2000 Ascent Combi User Manual

Ascent Oil – August 2019 9
TIP:
RECEIVING and UNPACKING
Inspect shipment upon receipt for external damage. Walk
around the freight and identify and address any unusual signs of
handling with the shipper before signing for the delivery. This is
a fast and easy way to resolve all transportation damage claims.
When unpacking and uncrating, inspect each item for internal
damage. Any damage found should immediately be reported to the freight
carrier before installation. The receiver is responsible for following the claims
procedure of the freight carrier. The freight carrier is responsible for taking
prompt action on all claims. Replacements for parts damaged in shipment are
available upon receipt of a signed copy of a claim report (concealed damage
claims should be filed immediately against the freight carrier by the consignee).
After unpacking, check each item against the packing list. Inspect it
thoroughly for loose parts, instruction sheets and packing lists. Immediately
report any missing items. It is wise to complete the installation before discarding
packing material. Store all parts where they will not be damaged or lost prior to
installation.
LOCATION and CLEARANCE
DANGER: Provide clearance to combustible surfaces in accordance with all
local and national codes. Follow National Fire Protection
Association Bulletin NFPA Installation of Oil Burning Equipment
and all applicable codes.
Installation Clearances from Boiler Surfaces,
Inches
Clearance to
Combustibles
Clearance for
Service
Front of boiler (not including burner)*
10”
20”
Left side of boiler body
0
5”
Right side of boiler body
0
12”
Back of boiler body
4”
4”
Top of boiler body
10”
16”
Bottom of boiler legs to floor
0
0
Ascent Combi L-Vent: from flue pipe “A”
3”
3”
Ascent Combi Standard Flue: from flue pipe “B”
9”
9”
Ascent Plus Combi Polypropylene “C”
0”
0”
* Minimum recommended clearance to allow door to fully open.
Place the unit as near to the chimney or vent as
possible allowing clearance for front cleaning and
service as shown in Figure 1B. Installing the boiler with
the burner parallel to a wall is sometimes advisable to
allow access to front and rear components in spaces
with limited depth.
Ascent Combi
Ascent Plus
Combi
Weight
377 lbs
405 lbs
Water Content
3 gallons
3 gallons
Air Inlet Pipe Size
2" PVC
3" PVC
Boiler Flue Outlet
5" Flue Pipe
3"
Polypropylene
Figure 1A, Top View of Boiler
Flue Connection Clearance to Combustibles
Ascent Combi
Ascent Plus Combi
C
B
7
”
A
7/8”
