IQ8 / IQ8+ / IQ8M / IQ8A / IQ8H Micro Installation and Operation
17 © 2022 Enphase Energy Inc. All rights reserved. Mar 2022

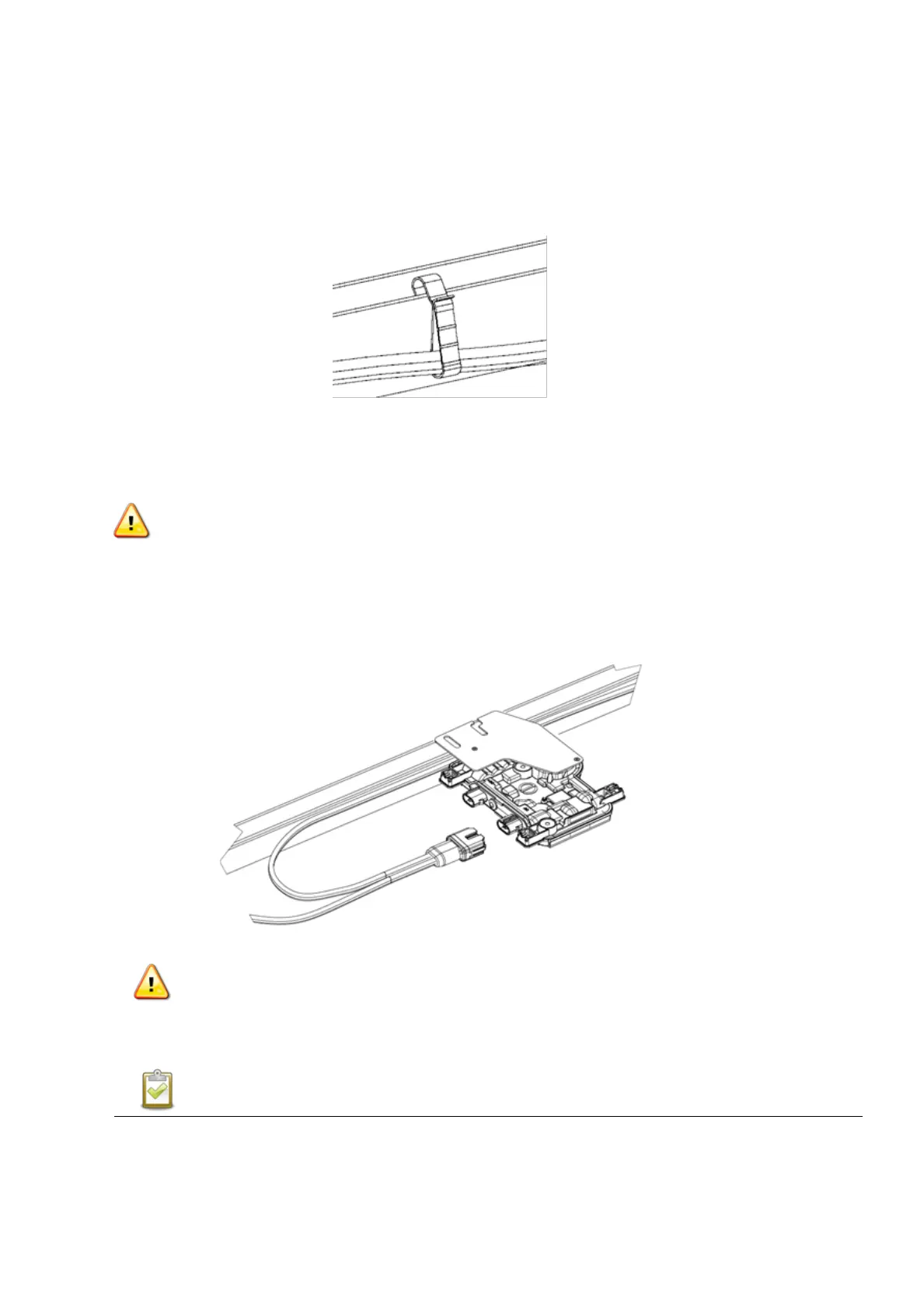

Step 5: Manage the Cabling
A. Use cable clips or tie wraps to attach the cable to the racking. Leave no more than 1.8 m (six feet) between
cable clips or tie wraps.
B. Dress any excess cabling in loops so that it does not contact the roof. Do not form loops smaller than 12 cm
(4¾ “) in diameter.
WARNING: Tripping Hazard. Loose cables can become a tripping hazard. Dress the Enphase IQ Cable to
minimize this potential.
Step 6: Connect the Microinverters
A. Connect the microinverter. Listen for a click as the connectors engage.
B. Cover any unused connector with Enphase Sealing Caps. Listen for a click as the connectors engage
WARNING: Risk of electric shock. Risk of fire. Install sealing caps on all unused AC connectors as these
connectors become live when the system is energized. Sealing caps are required for protection against
moisture ingress.
NOTE: If you need to remove a sealing cap, you must use the Enphase Disconnect Tool. See Disconnect
a Microinverter” on page 27.
