Sigma DS1, DS2, and DS3 Card Printers Installation and Administrator’s Guide 57

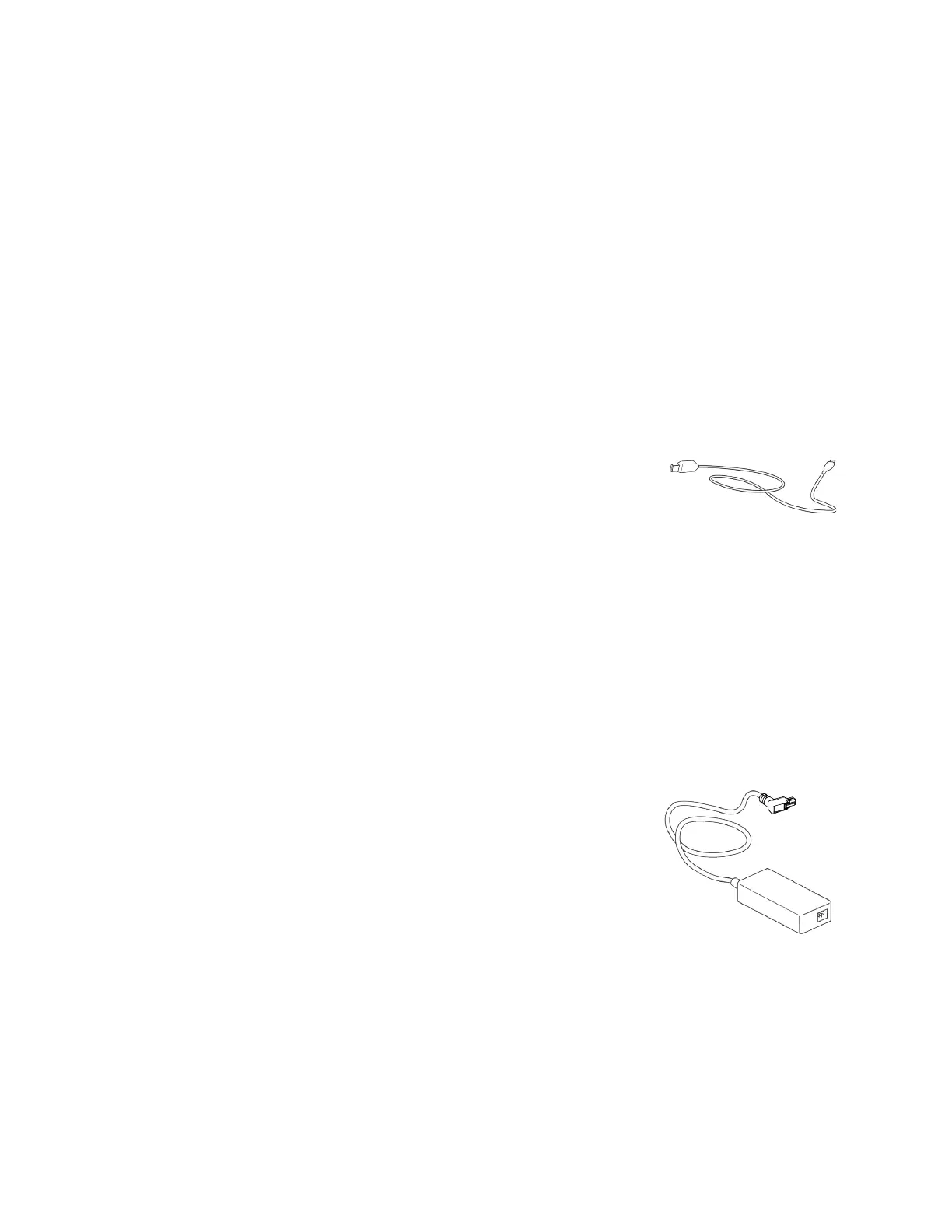

Cables and Power Supplies
The printer uses the following data cables and power supplies.
Data Cables
The data cable connects the printer to the network or directly to a PC. You can use one of the
following data cables:
 USB
 Network (Ethernet)
Use only one type of data cable with a printer. If you need to connect more than one PC to a
printer, use a network connection.
USB Cable
Use a USB-C data cable, 6 feet (2 meters) long, to connect the printer
to the PC. Be sure to use a cable rated for USB 3.0 data transmission.
Network Cable
Use a standard Ethernet network cable, also called a Category 5 or Cat 5 cable, to connect the
printer to a network port.
USB Smart Card Cable
Printers that have a loosely coupled smart card reader use a USB data cable, up to a maximum of
6 feet (2 meters) long, to connect the smart card reader in the printer to the PC.
Printer Power Supply
The printer power supply is rated as follows:
 Input: 110–V240V, 50–V60Hz, 1.5A
 Output: 24V, 3.0A, 72W
It is self-adjusting within the rated input voltage.

Entrust Sigma DS3 Specifications

General

Print Resolution	300 dpi
Card Capacity Input Hopper	100 cards
Card Capacity Output Hopper	25 cards
Power Supply	100-240 VAC, 50/60 Hz
Print Technology	Dye sublimation
Print Capabilities	Single or dual-sided
Card Thickness	0.010 inches to 0.040 inches
Supported Card Sizes	CR80 (85.6 mm x 54 mm)
Connectivity	USB and Ethernet
Operating System Support	Windows 7, 8, 10, Server 2008, 2012, 2016
Weight	5.49 kg (12.1 lbs)
Operating Temperature	15°C to 35°C (60°F to 95°F)
Operating Humidity	20% to 80% (non-condensing)
Print Speed	Up to 250 cards per hour (YMCKT)
