3 Input/3 Output Multi-Hopper
A multi-hopper configured with three input and three output cartridges allows the bottom row of
cartridges to be used for card output. Cartridges H4, H5, and H6 (top row) are used for card input
while cartridges H1, H2, and H3 (bottom row) are used for card output.
Card input and card output cartridges are not interchangeable. Always install card
input cartridges on the top row and card output cartridges on the bottom row of the
multi-hopper.
Output cartridges have a light gray door that matches the color of the door release
button. Inside the cartridge, input cartridges have a card weight while output
cartridges do not have a card weight.

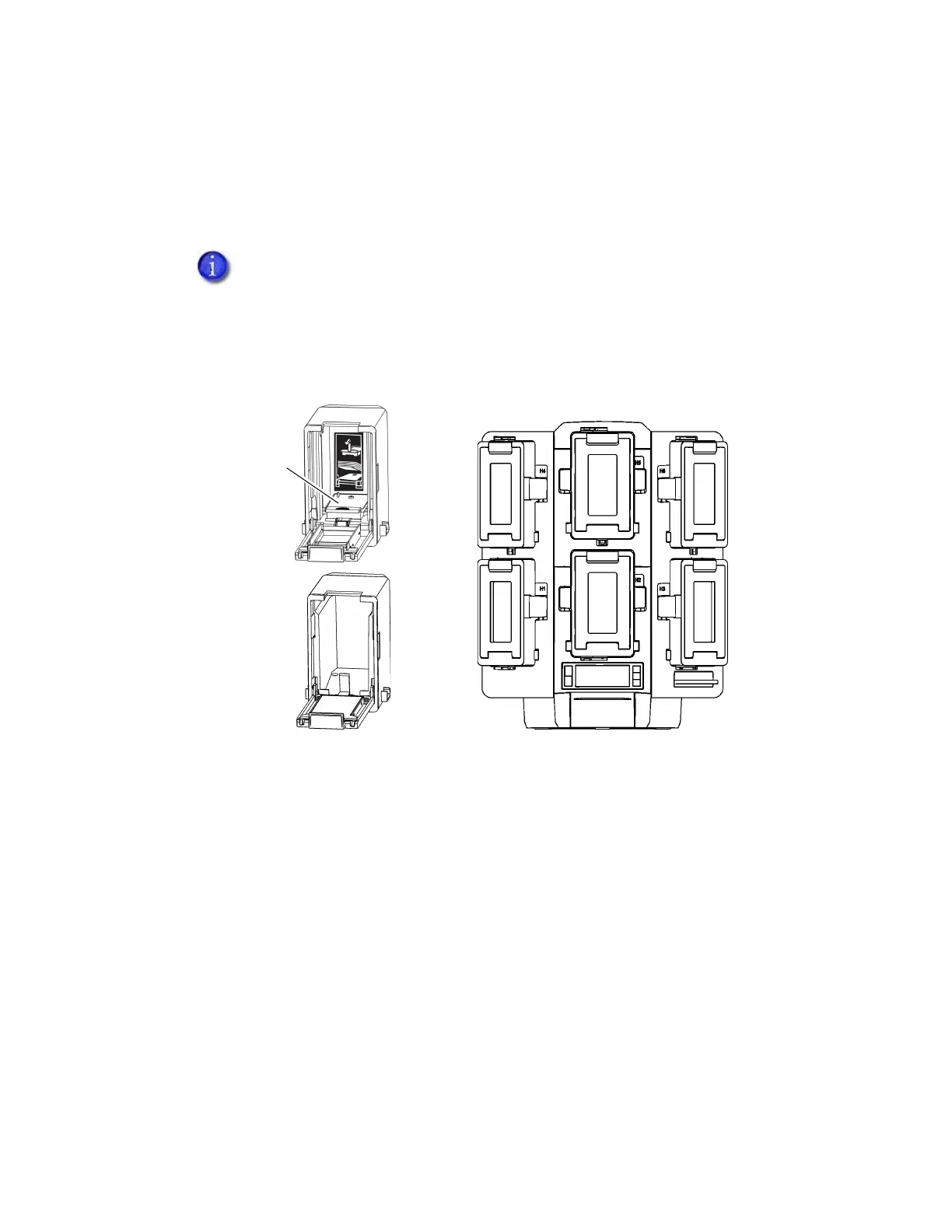

Card
Weight
Input Hopper
H4 - H6
Output Hopper
H1 - H3
H1
H2
H3
H4
H5
H6
