EN-7100e
7
31MY02
EN-7100e
Before You Operate the Monitor
Connecting the Wires Using An Optional Power Cord (Not Supplied)
The power cord supplied with your monitor can
only be connected to a grounded electrical wall
socket or power strip.
If you wish to connect your monitor to a power
supply using the power input socket on the back of
your computer, you must purchase a power cord
with CEE-22 terminated connectors (see
illustration above).

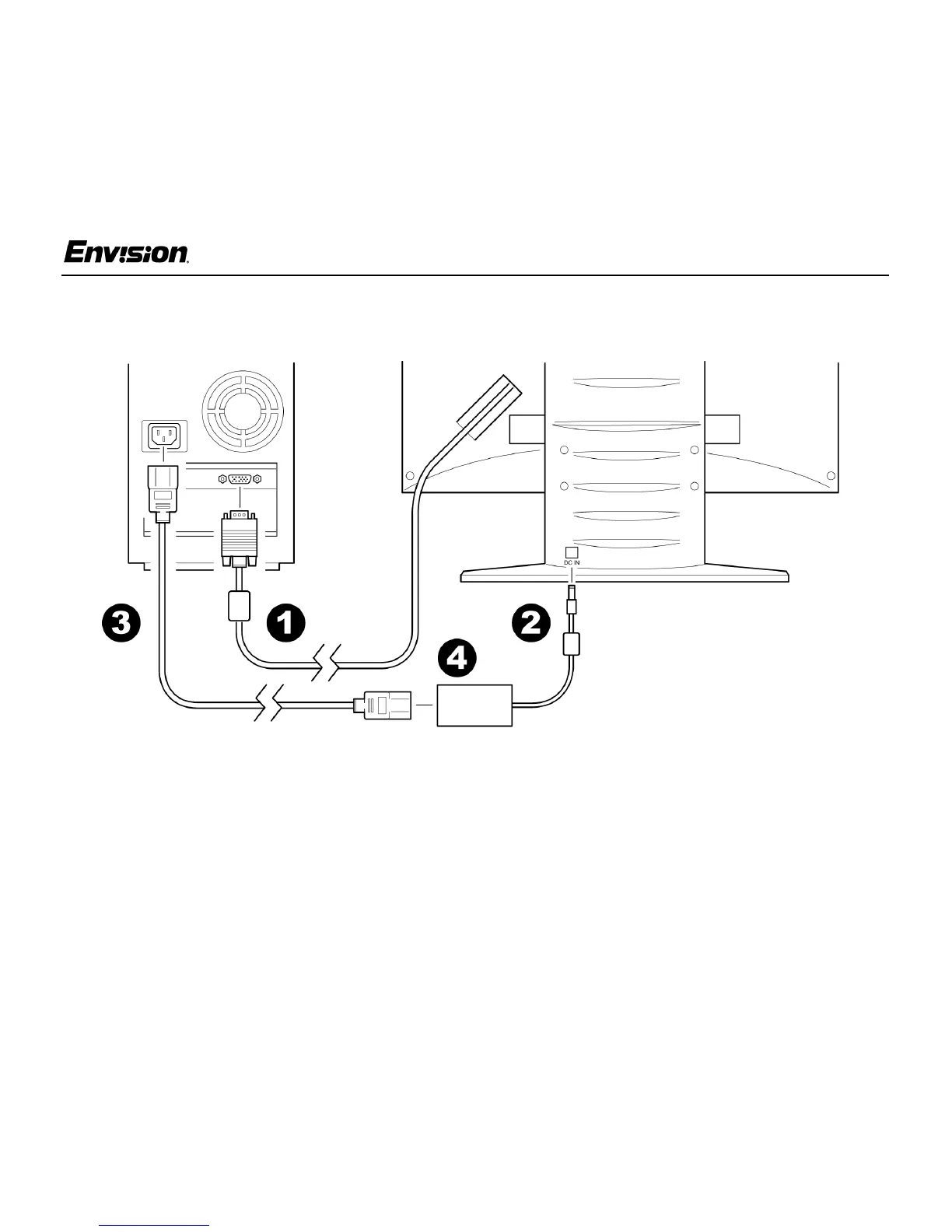

Follow these steps:
1. Connect the built-in video cable into the 15-pin
connector on the back of your computer and
tighten the two screws.
2. Connect the power cord into the power
adaptor.
3. Plug the other end of the power cord into the
power output socket on your PC.
4. Connect the power adaptor into the DC IN
socket on the back of the monitor.
