Low-Profile Installation
1. If your installation requires the overall height of the mount to be less that the approximate 9” shown with
the standard mount assembly, you can convert the height to only 2 ½” by simply removing the adjustment
channel as shown.
2. Once the extension channel is removed, attach the upper ceiling plate to the ceiling.
3. Once attached install the bell housing assembly to the upper ceiling plate as shown (Figure 10, Figure 11,
and Figure 12).

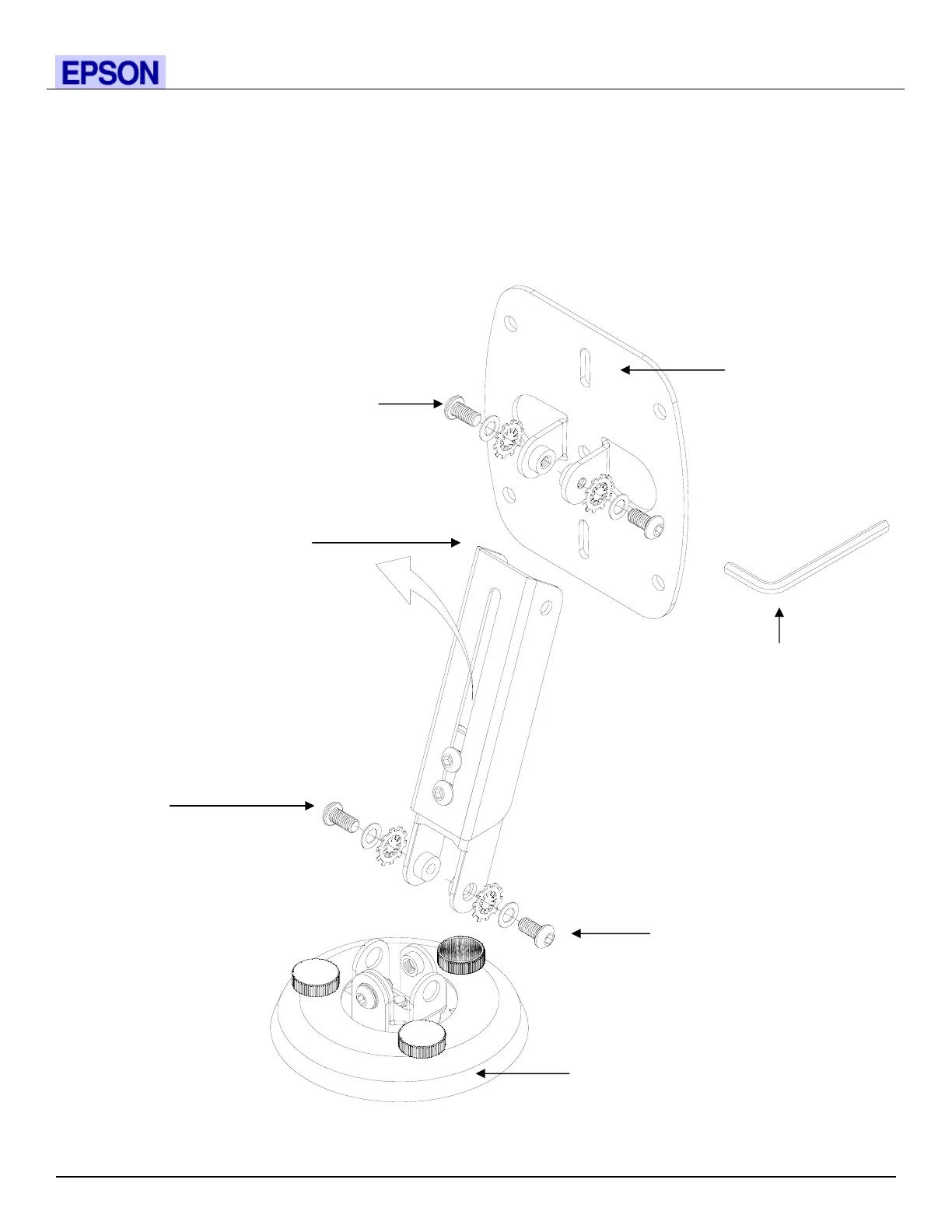

Figure 10
Ceiling Plate
Remove the M8 x 16mm
Screws, flat Washers and Star
Washers
Allen Wrench
Remove the Middle
Extension Completely
Remove the M8 x 16mm
Screws, Flat Washers,
and Star Washers (Both
Sides)
Remove the M8 x 16mm
Screws, Flat Washers,
and Star Washers (Both
Sides)
Bell Housing
