Appendix Connector Diagram 72
L350/L300/L355/L210/L110 Series Revision B
5.1 Connector Diagram
Cable connections of this printer are shown below.

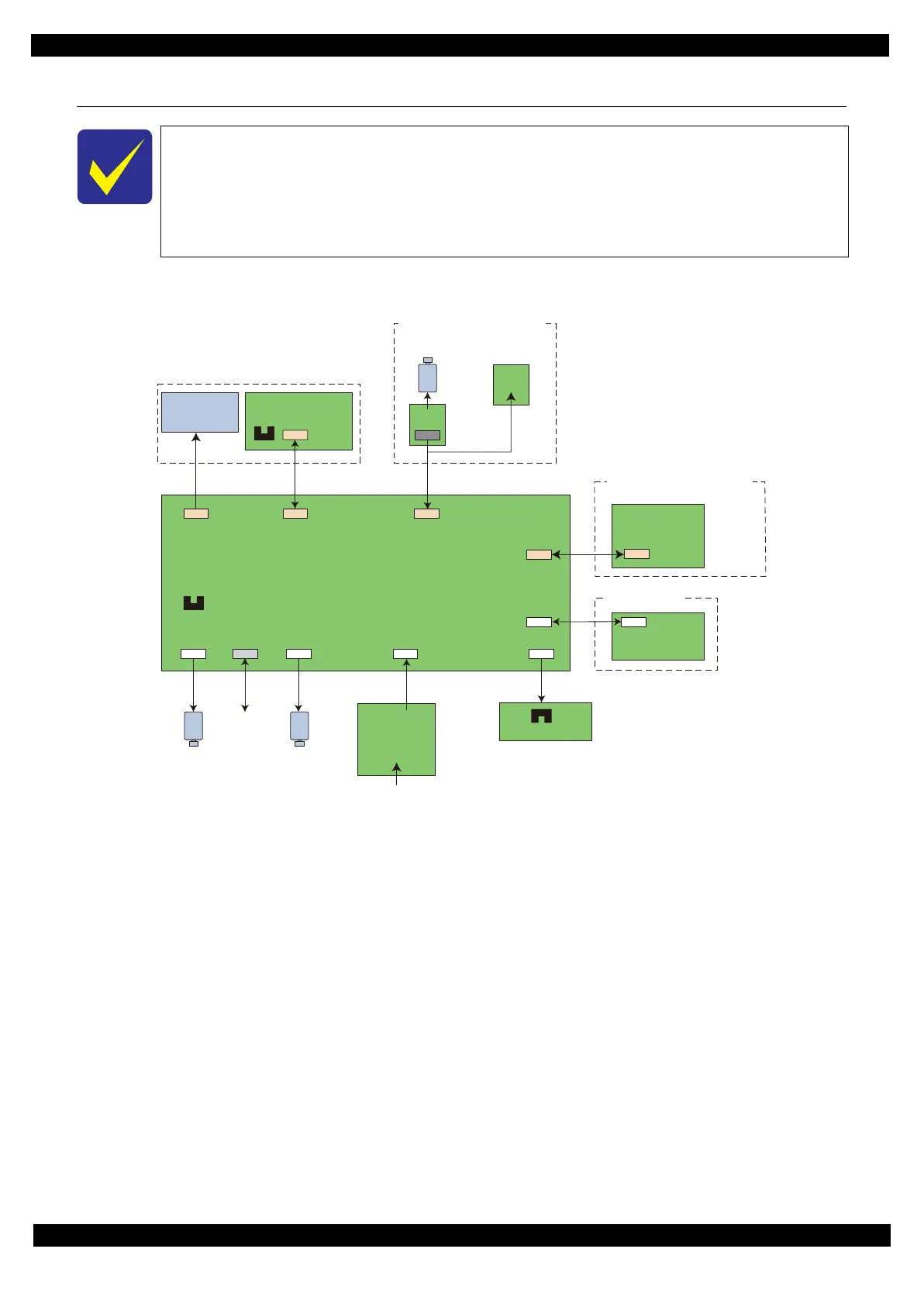

Figure 5-1. Connector Diagram
In this chapter, the product names are called as follows:
 L350 Series: L350/L351
 L300 Series: L300/L301
 L355 Series: L355/L358
 L210 Series:
L210/L211
 L110 Series: L110/L111
CN501 CN7CN13CN12
CN61 CN11
CN102
Printhead
CIS
PE Sensor
CR Motor
SCN Motor
PF Motor
USB
CN3
CN2
CN4
PF Encoder
CR Encoder
WiFi Board
AC in
PS Board
Main Board
Scanner Unit
CN1
CN1
Panel Board
CN1
CR Unit
Panel Unit
L350/L355/L210 series
L355 series
L350/L355/L210 series
