Confidential
Appendix Protection for Transportation 76
L350/L300/L355/L210/L110 Series
Revision B
5.3.3 Securing the Ink Supply Tank Assy/Top Cover
Purpose
To prevent damage on the Ink Supply Tank Assy/Top Cover from shock during transportation.
Risks if it is not performed
Damage on the Ink Supply Tank Assy/Top Cover.
Preparation
Ink Supply Tank Assy
Prepare three pieces of strong tape (length: 80 mm, width: 22 mm, fold one end 5 mm).
Top Cover
Prepare two pieces of strong tape (length: 55 mm, width: 22 mm, fold one end 5 mm).
Method
Ink Supply Tank Assy
Align the unfolded end of strong tape (x3) with the edge of the Housing Right, and attach the tape along the shape
of the Housing Right/Ink Supply Tank Assy through the openings between the Air Release Hole Caps.
Top Cover
Secure both sides of the Top Cover with strong tape (x2).

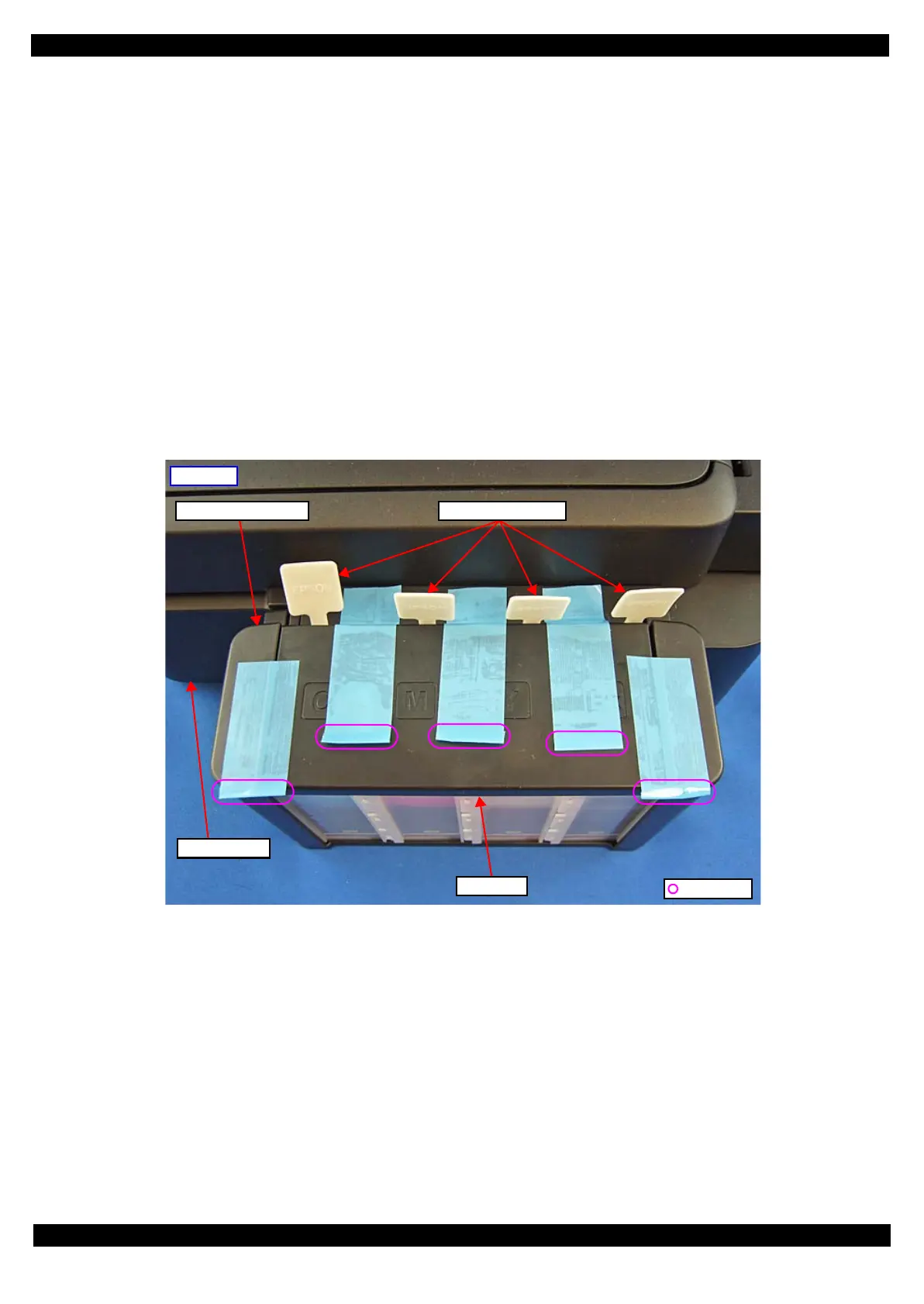

Figure 5-5. Securing the Ink Supply Tank Assy/Top Cover
Right side
Top Cover
Housing Righr
Ink Supply Tank Assy
Folded ends
Air Release Hole Caps
