lubrication

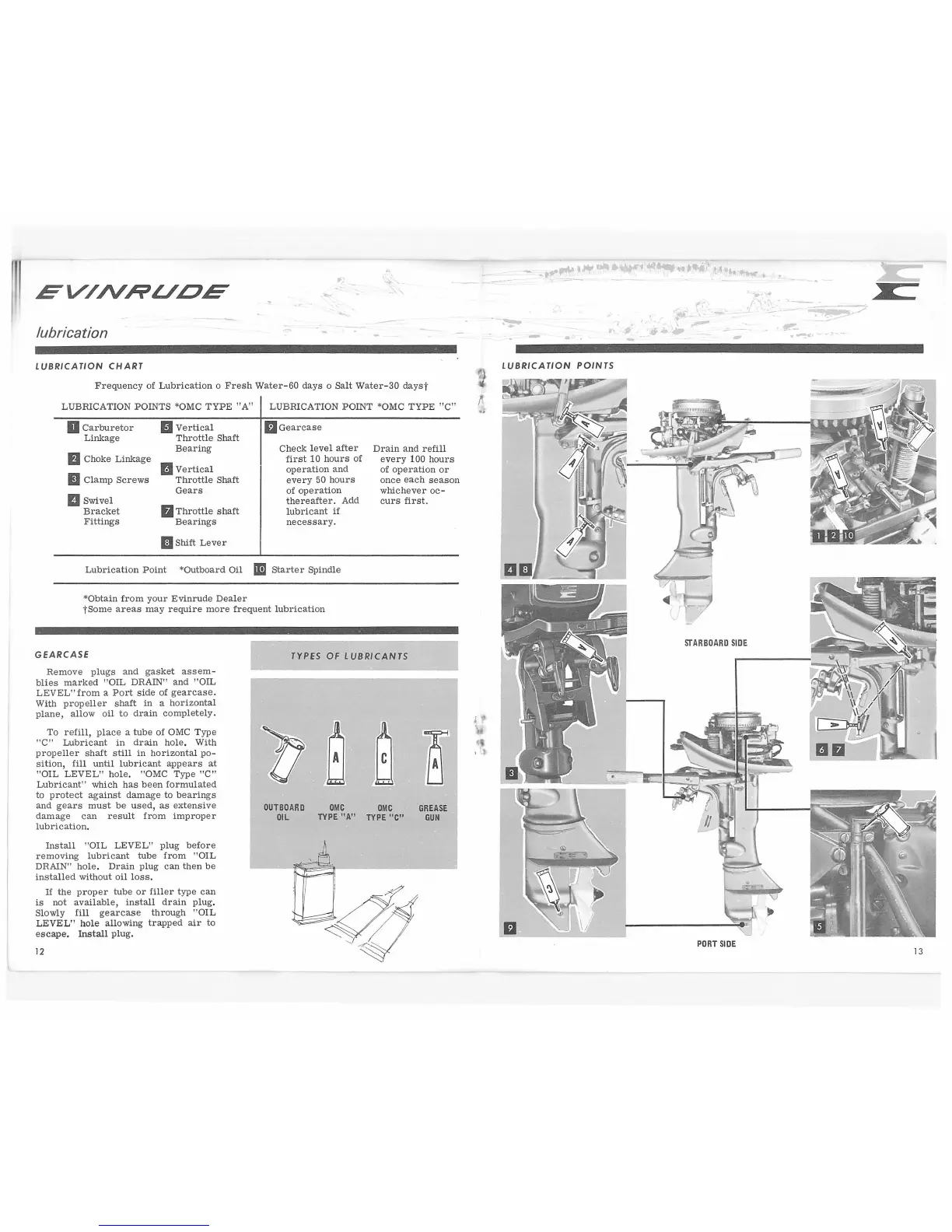

LUBRICATION CHART
Frequency of Lubrication o Fresh Water-60 days o Salt Water-30 dayst
LUBRICATION POINTS *OMC TYPE "A"
II Carburetor
Linkage
EJ Choke Linkage
11 Vertical
Throttle Shaft
Bearing
IJI Vertical
EJ Clamp Screws Throttle Shaft
II Swivel
Bracket
Fittings
Gears
II Throttle shaft
Bearings
EJ Shift Lever
LUBRICATION POINT *OMC TYPE "C"
IIGearcase
Check level after
first 10 hours of
operation and
every 50 hours
of operation
thereafter. Add
lubricant if
necessary.
Drain and refill
every 100 hours
of operation or
once each season
whichever oc-
curs first.
Lubrication Point *Outboard Oil 1m Starter Spindle
*Obtain from your Evinrude Dealer
tSome areas may require more frequent lubrication
GEARCASE
Remove plugs and gasket assem-
blies marked "OIL DRAIN" and "OIL
LEVEL" from a Port side of gearcase.
With propeller shaft in a horizontal
plane, allow oil to drain completely.
To refill, place a tube of OMC Type
" C" Lubricant in drain hole. With
propeller shaft still in horizontal po-
sition, fill until lubricant appears at
" OIL LEVEL" hole. "OMC Type "C"
Lubricant " which has been formulated
to protect against damage to bearings
and gears must be used, as extensive
damage can result from improper
lubrication.
Install " OIL LEVEL" plug before
removing lubricant tube from "OIL
DRAIN" hole. Drain plug can then be
installed without oil loss.
If the proper tube or filler type can
is not available, install drain plug .
Slowly fill gearcase through "OIL
LEVEL" hole allowing trapped air to
escape. Install plug.
12
TYPES OF LUBRICANTS
OUTBOARD OMC OMC GREASE
OIL TYPE "A" TYPE "C" GUN
-- -
-
,. ~·
-
4 ---
•
LUBRICATION POINTS
STARBOARD SIDE
PORT SIDE
13
