MDS-ADS
MDS-ADS
Example : MDS DIRECT-ADS CITY
2 General Entrances with video to 3 Interior Blocks with 1 Audio Panel in each one.

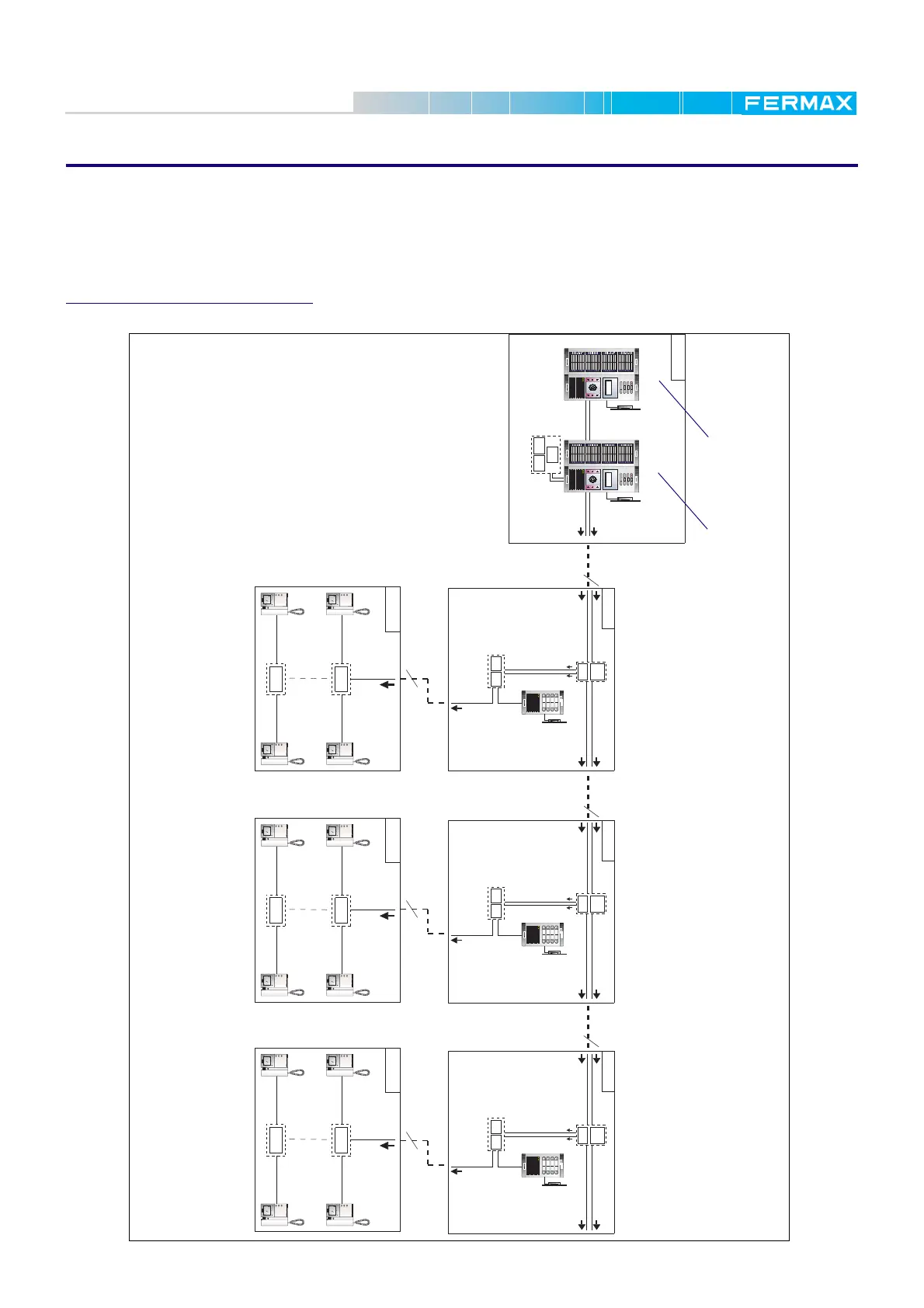

BLOCK DIAGRAMS AND BLOCK ICONS
This MDS-ADS Systems Technical Manual presents a new way of presenting the diagrams: by means of BLOCK
ICONS. Each ICON is identified by a diagram code or name (for example: MDS 95C). This code is the same as
identified in the detailed WIRING DIAGRAM represented in the ANNEX.
After generating the necessary Block Diagram of a specific facility, with the corresponding Block Icons , consult the
ANNEX for the Wiring Diagrams corresponding to these Block Icons and substitute said icons. An example is shown
below.
ADS-P2
1 2
HIGH RESOLUTION
FLAT MONITOR
REF. 2448
1 2
HIGH RESOLUTION
FLAT MONITOR
1 2
HIGH RESOLUTION
FLAT MONITOR
REF. 2448
1 2
HIGH RESOLUTION
FLAT MONITOR
REF. 5918 + COAX
ADS-P2
1 2
HIGH RESOLUTION
FLAT MONITOR
REF. 2448
1 2
HIGH RESOLUTION
FLAT MONITOR
1 2
HIGH RESOLUTION
FLAT MONITOR
REF. 2448
1 2
HIGH RESOLUTION
FLAT MONITOR
REF. 5918 + COAX
ADS-P2
1 2
HIGH RESOLUTION
FLAT MONITOR
REF. 2448
1 2
HIGH RESOLUTION
FLAT MONITOR
1 2
HIGH RESOLUTION
FLAT MONITOR
REF. 2448
1 2
HIGH RESOLUTION
FLAT MONITOR
REF. 5918 + COAX
MDS 141U
REF.2448
REF.88301 REF.2409
MDS 141U
REF.2448
REF.88301 REF.2409
MDS 141U
REF.2448
REF.88301 REF.2409
3 x 1 mm2 + COAX3 x 1 mm2 + COAX3 x 1 mm2 + COAX
MDS 49C
REF.88301
REF.2443
REF.88401
123 456 789 A0
HIGH RESOLUTION
CCD CAMERA
PAN &TILT
MULTIPLEXED DIGITAL SYSTEM
123 456 789 A0
HIGH RESOLUTION
CCD CAMERA
PAN &TILT
MULTIPLEXED DIGITAL SYSTEM
General Entrance: YES Access Nº: 01
GENERAL ENTRANCE
General Entrance: YES Access Nº: 01
ACCESS 1ACCESS 2
BLOCK 1
BLOCK 2BLOCK 3
standard
scerw
terminal
standard
scerw
terminal
standard
scerw
terminal
