Pag. 85
T
echnical Book
MDS
-ADS
MDS
-ADS

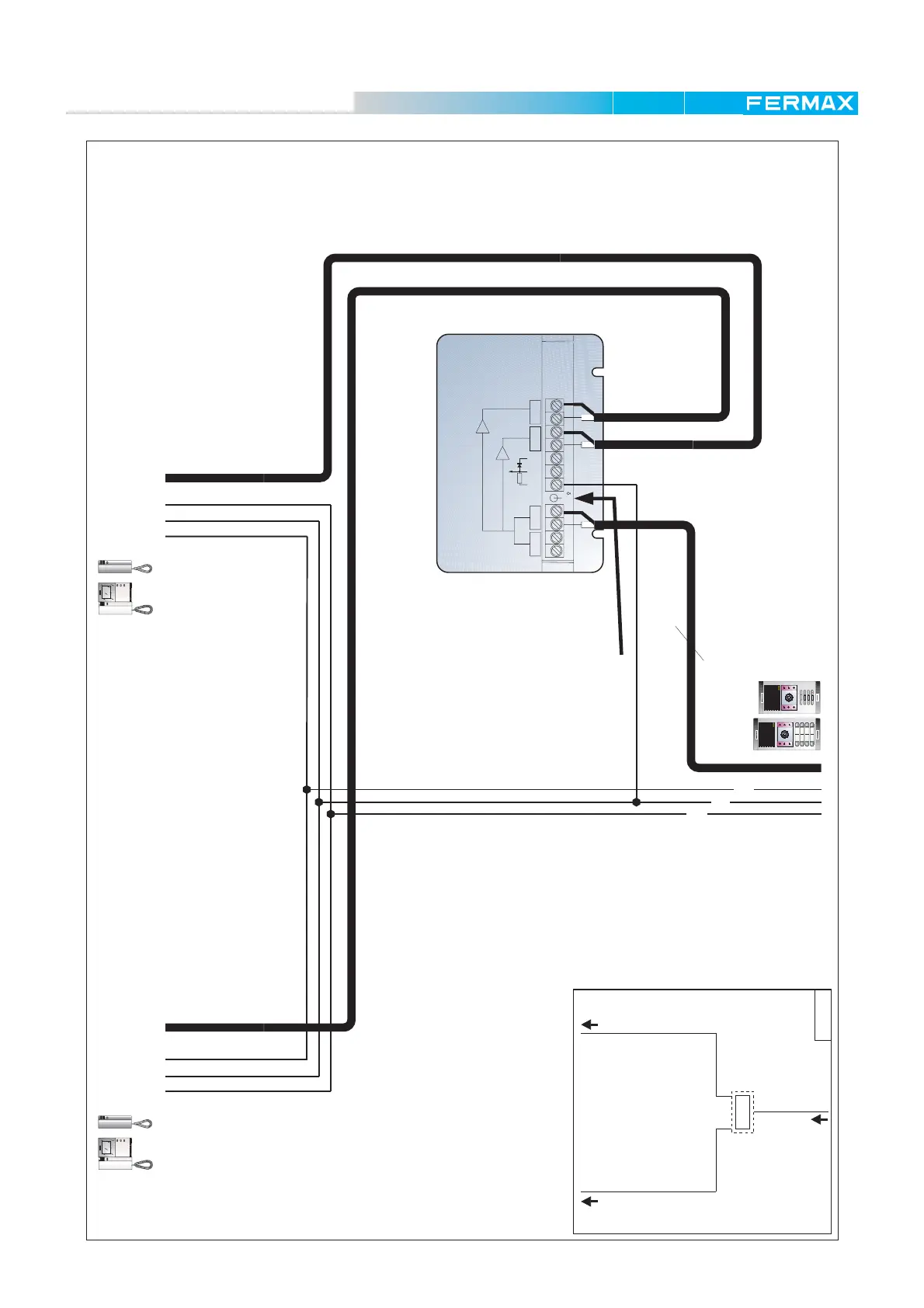

ADS - P5
ADS-P5
+
L
REF
.2448
DISTRIBUIDOR VIDEO 2 SALIDAS
2 OUTPUTS VIDEO DISTRIBUTOR
M
R1
+18
75
MV
6
3
+
4
2
V
M
V
1
5
V
M
L
+
RG59
COAX RG59
-
-
+
-
L
COAX
RG59
COAX
1
2
HIGH RESOLUTION
FLAT MONITOR
HIGH
PERFORMANCE
MUL
T
I
PLEXED
DIGIT
A
L
SYSTEM
ST
OP
123
456
789
A0
HIGH RESOLUTION
CCD CAMERA
PAN &TILT
1
2
HIGH RESOLUTION
FLAT MONITOR
ADS-P5
REF
. 2448
DON'T CUT
RESISTOR
TO THE
ADS P
ANEL/P
ANELS OR
DISTRIBUTOR DIAGRAM
TO THE FLOORS
TO THE FLOORS
84
86
Table of Contents
Annexannex
34
Table of Contents
1
Mds-Ads System
3
Introduction
3
ADS DECODER Ref. 2409
4
General Features
4
Mds-Ads System Programming
6
Programming the ADS Decoder
6
From MDS DIGITAL Panel
6
From MDS DIRECT Panel
14
From PC
16
Programming ADS Dwelling Terminals
17
From INTERIOR BLOCK ADS Panel
17
From GENERAL ENTRY MDS DIGITAL Panel
20
From GENERAL ENTRY MDS DIRECT Panel
21
Technical Features
23
Block Diagrams and Block Icons
24
Block Icons
25
General Entrances
25
MDS DIGITAL General Entrance
25
MDS DIGITAL Panels
25
MDS DIRECT General Entrance
26
Interior Blocks
27
Interior Blocks with ADS DIRECT Panels
27
Interior Blocks with ADS CITY Panels
28
DIGITAL KITS (ADS) for CHALETS / VILLAS
29
Interior Blocks WITHOUT ADS Panels
30
Distribution
30
Floors
31
VIDEO Floor (Monitors)
31
AUDIO Floor (Telephones)
31
VIDEO-AUDIO Mixed Floor (Monitors-Telephones)
32
Additional Mds Bus Supply/ Mds Bus Regeneration Signal
32
Annex I: Wiring Diagrams Index
34
Mds 9C
36
Mds 10C
37
Mds 11C
38
Mds 12A
39
Mds 49C
40
Mds 50C
41
Mds 52C
42
Mds 53C
43
Mds 54C
44
Mds 55C
45
Mds 56C
46
Mds 57C
47
Mds 95C
48
Mds 97C
49
Mds 106C
50
Mds 121C
51
Mds 124C
52
Mds 125C
53
Mds 133U
54
Mds 134U
55
Mds 135U
56
Mds 136U
57
Mds 139U
58
Mds 140U
59
Mds 141U
60
Mds 142U
61
Mds 147U
62
Mds 149U
63
Mds 150U
64
Mds 152U
65
Mds 153U
66
Mds 154U
67
Mds 155U
68
Mds 156U
69
Mds 157U
70
Mds 158U
71
Mds 159U
72
Mds 160U
73
Mds 161U
74
Mds 162U
75
Mds 163U
76
Mds 164U
77
Mds 165U
78
Mds 172C
79
Mds 173C
80
Ads - P1
81
Ads - P2
82
Ads - P3
83
Ads - P4
84
Ads - P5
85
Ads - P6
86
Ads - P7
87
Ads - P8
88
Ads - P9
89
Ads - P10
90
Ads - P11
91
Ads - P12
92
Annex II: Internal Panel Wiring Diagrams Index
93
Mds 46U
94
Mds 47U
95
Mds 72C
96
Mds 73C
97
Mds 92C
98
Mds 126C
99
Mds 127C
100
Mds 137U
101
Mds 138U
102
Mds 143U
103
Mds 144U
104
Mds 145U
105
Mds 146U
106
Mds 166U
107
Mds 167U
108
Mds 168U
109
Mds 169U
110
Mds 170U
111
Mds 171U
112
Annex III: Section Tables in Mds-Ads Systems
113
5
Based on 1 rating
