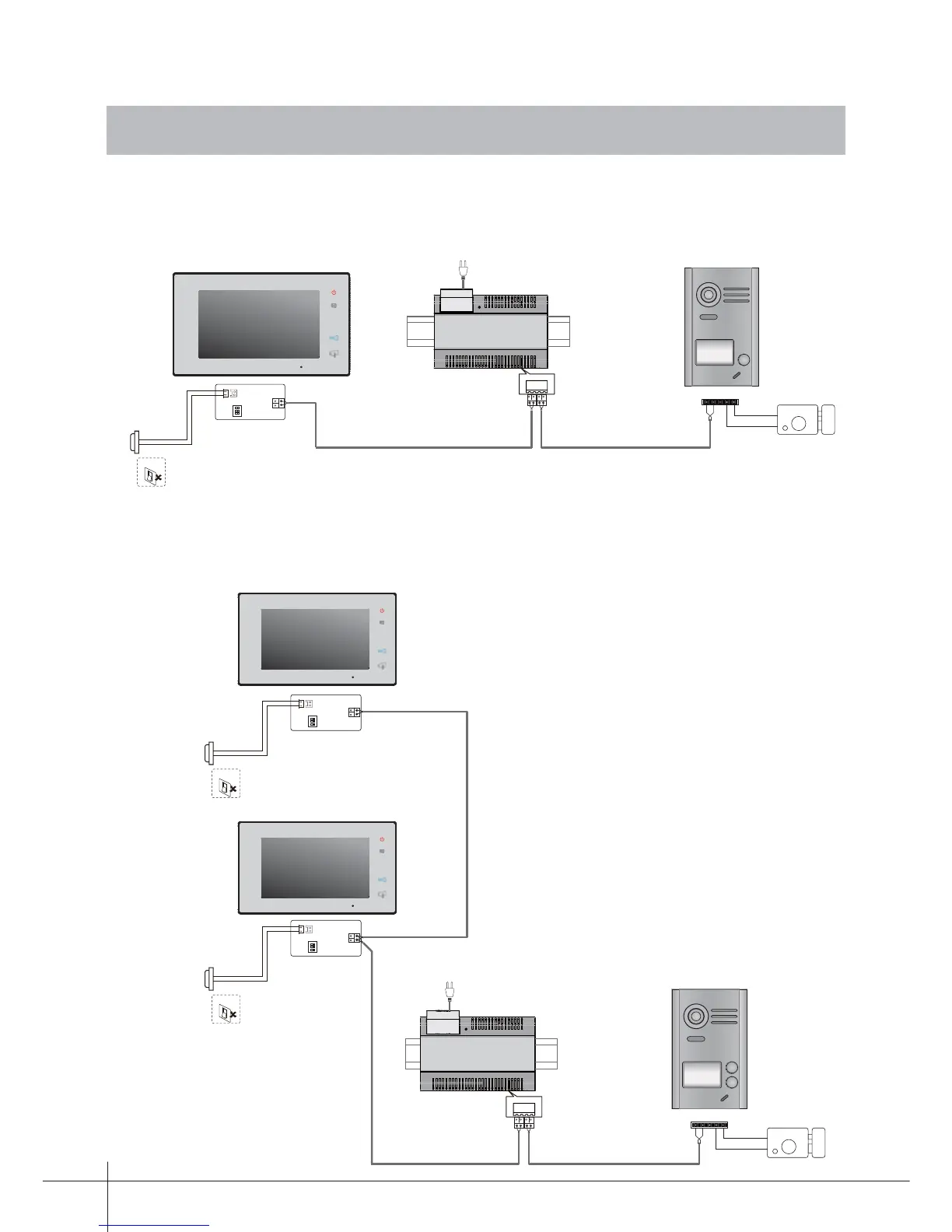

13. System Wiring and Connections
BUS(IM) BUS(DS)
PC6
AC~
-
+
L1 L2 PL S+ S-
Doorbell Button
Switch
1 2 3
ON
DIPS
13.1.1 One Way Connection
13.1.2 Two Ways Connection
BUS(IM) BUS(DS)
PC6
AC~
-
+
L1 L2 PL S+ S-
Doorbell Button
Switch
1 2 3
ON
DIPS
Doorbell Button
Switch
1 2 3
ON
DIPS
BUS (M)
Monitor
BUS (DS)
Panel
BUS (M)
Monitor
BUS (DS)
Panel
Lock
Lock
