-3-

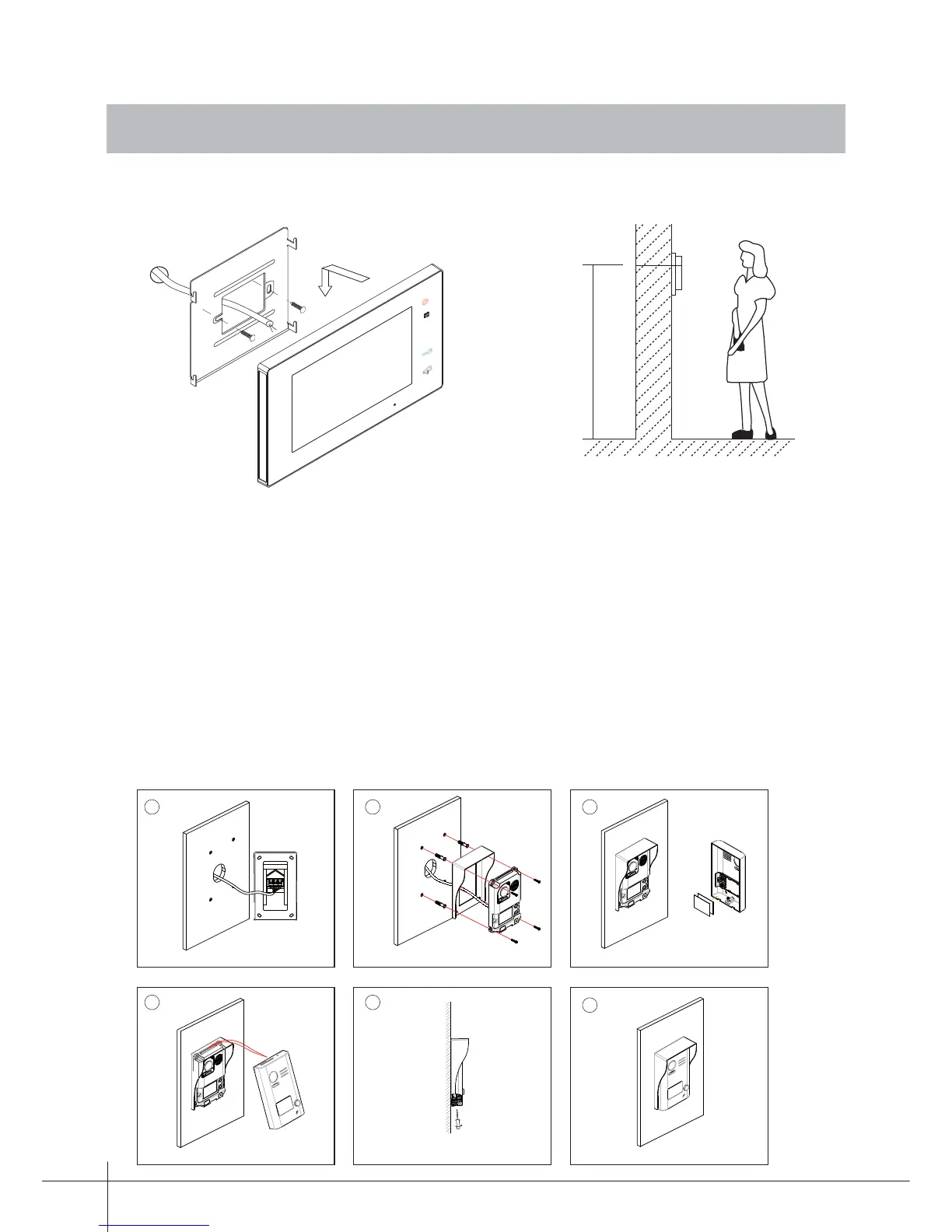

3.1 Monitor Mounting
145~160 cm
1. Use the screws to fi x the Mounting Bracket on the wall, (fi tting accesories includes
a Bracket. Two pieces of 4X25 screws are needed for fastening the Mounting
Bracket).
2. Connect the system correctly (see the later connection chapter) then hang the
Monitor into the Mounting Bracket.
3. Mounting
3.2 Outdoor Panel Mounting
The base unit is installed
on the wall.
Connect the cable correctly.
Placing name label.
The front cover is installed
onto the base unit.
Use the screw to fix the front cover.
Installation is complete.
1.Mounting the Rain Cover
