Firefly Omniguard 860 Series User Manual

12 ©Firey AB (Oktober 2016)
RS485 User Interface (UI)
If no communication has been established, check the wiring to be sure
that the polarity is not reversed on the two wires. The network can
be daisy chained, but it does require two 120Ω terminating resistors
in order to minimize reections. One resistor should be placed at the
controller or buss arbiter. The other resistor should be placed at the
farthest location from the controller or buss arbiter. RS485 allows up to
4000 feet of 24 AWG twisted-pair wire driving into 120Ω loads.
Service and repair
Contact Firey AB or your Firey AB distributor for details on our
customer support and repair services. Prior to returning defective
material, please contact the Firey AB service and repair department
for additional procedural information.
Model 660 and 860 ame detectors are not eld-serviceable and the
ameproof joints are not intended to be repaired. An unauthorized
attempt to repair or re-calibrate a detector will void the warranty.
Detectors should be carefully packed to avoid damage from shock,
moisture and dust. Use the original shipping carton, if available. Wrap
the detector in plastic before packing. Provide ample packing material
to cushion the detector.
Warranty
The warranty period is thirty-six (36) months for the Model 660 and
860 Series Flame Detectors and ve (5) years for both the UV and IR
Sensors.
Firey AB will, at its option, repair and return without charge (freight
prepaid) any Omniguard product, used in accordance with Firey AB
ratings and instructions and conrmed by Firey AB to be defective
in workmanship or materials. This warranty shall be valid only if
the product is returned, within the applicable warranty period, to
the factory at Stockholm, Sweden properly packed and with all
transportation charges prepaid. All warranty periods commence from
the date the product is shipped to the end user, provided that delivery
is within six (6) months of the date the product was originally shipped
from the factory. There are no warranties of merchantability, tness, or
implied warranties of any kind, or representations for any other Firey
AB product, except the warranty specied herein. In no event shall
Firey AB be liable for any consequential, special or other damages
attributable to our product. The buyer is solely responsible for the
proper installation, maintenance and use of the Omniguard® ame
detectors, and agrees Firey AB is not in any way liable for any special
incidental or consequential damages whatsoever.

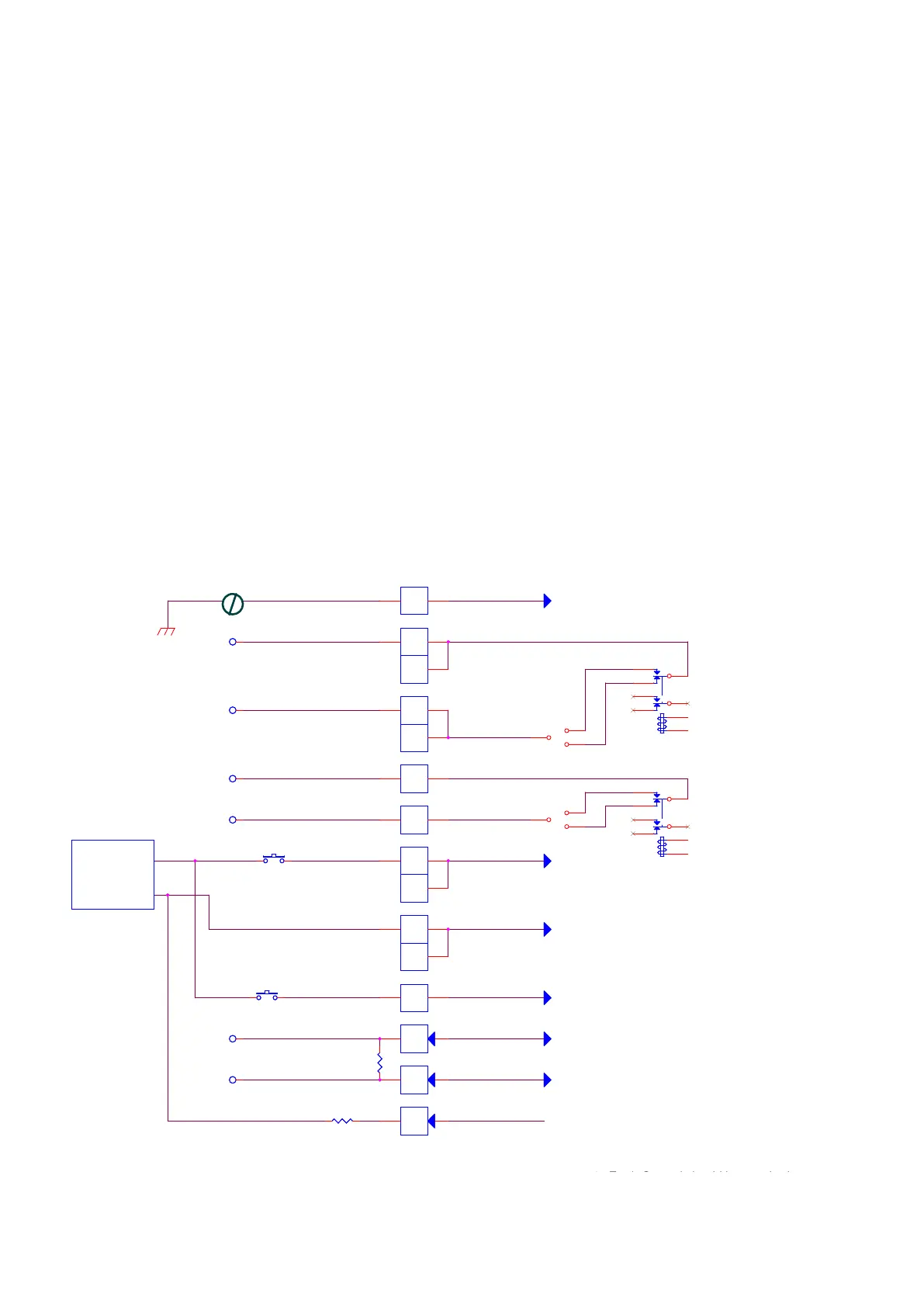

(NO)
(NC)
FIRE LOOP
FAULT
+24 VDC
-24 VDC RTN
TEST INPUT
+ RS485
- RS485
0 to 20 mA
+
-
RS485 LOOP
CHASSIS RTN
(NO)
(NC)
(Momentary & NO)
Notes:
1. The Model 660-1XXXX does not have a 0
to 20 ma option TB1-1 is N/A
2. RS485 120 Ohm resistor is terminating.
Only use one at the beginning of the loop
and at the very end.
3. Fault relay contacts change state
on application of power.
4. Earth Ground should be attached
to clamp in the base.
(Momentary & N.C.)
Electronic
Module
Interface
Customer
Wiring
Interface
RL
K2
Fire Relay
K2
Fire Relay
3
4
5
10
9
8
1
12
RESET SWITCHRESET SWITCH
1 2
250 Ohms Max250 Ohms Max
JP1JP1
Power SupplyPower Supply
TEST SWITCHTEST SWITCH
1 2
120 Ohms 120 Ohms
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
TB1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
TB1
JP2JP2
K1
Fault Relay
K1
Fault Relay
3
4
5
10
9
8
1
12
