Wagon

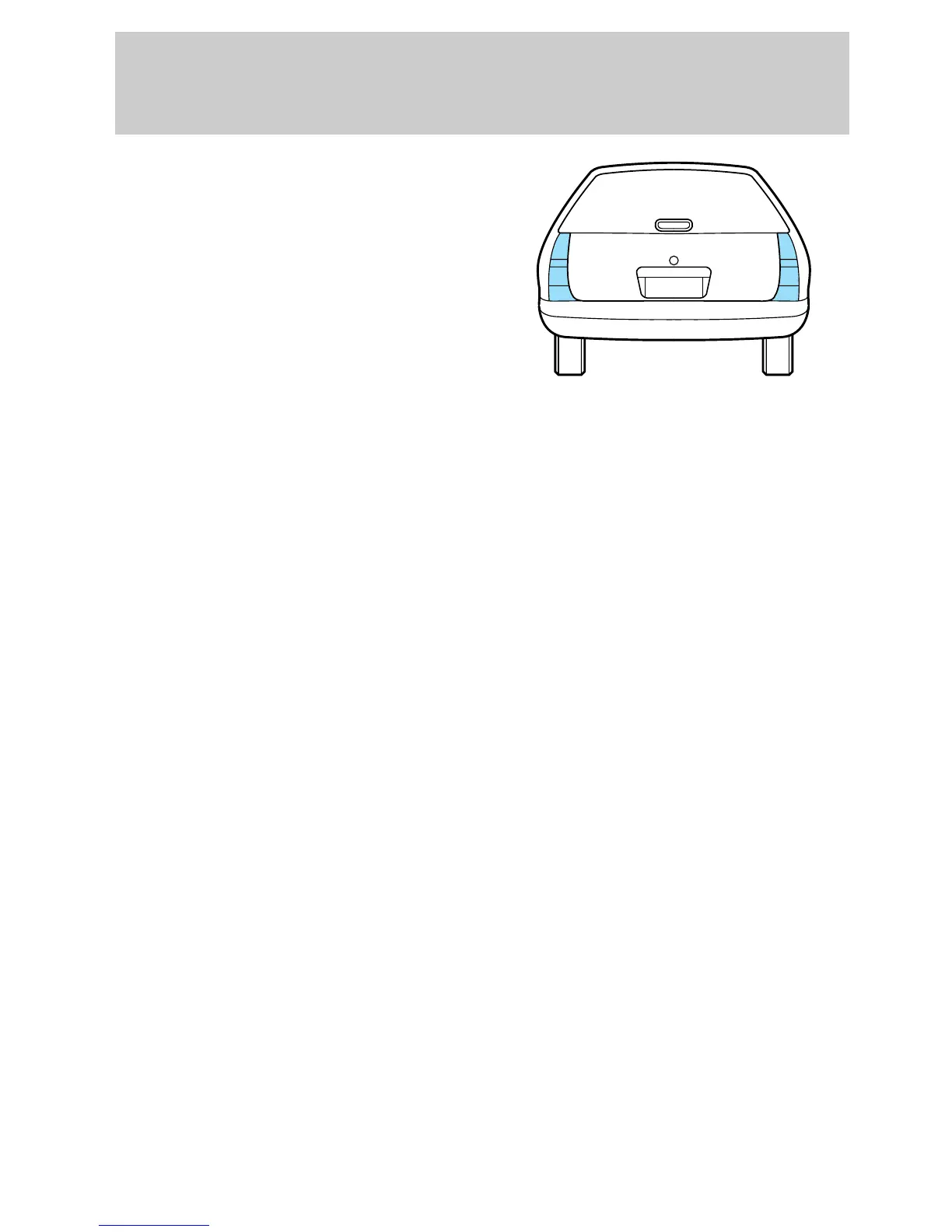

1. Open trunk to expose the tail
lamp assembly. Remove the two
screws from the front of the lamp.
2. The tail lamp has hidden
fasteners which can be disengaged
by hitting the lamp, with the side
of your hand, toward the side of
the vehicle.
3. Remove the socket that contains
the burned-out bulb by rotating it
counterclockwise, then pulling it
out of the lamp assembly.
4. Pull the burned-out bulb from
the socket and install the new
bulb.
5. Push the socket into the lamp,
then secure it by rotating it
clockwise.
6. Position the tail lamp on the
vehicle and gently tap the lens to
engage the clips. Install the
screws.
Maintenance and care
170
