3.0L
and
4.0L
engines
(if
equipped)
The
high-current
fuses
are
coded
as
follows:

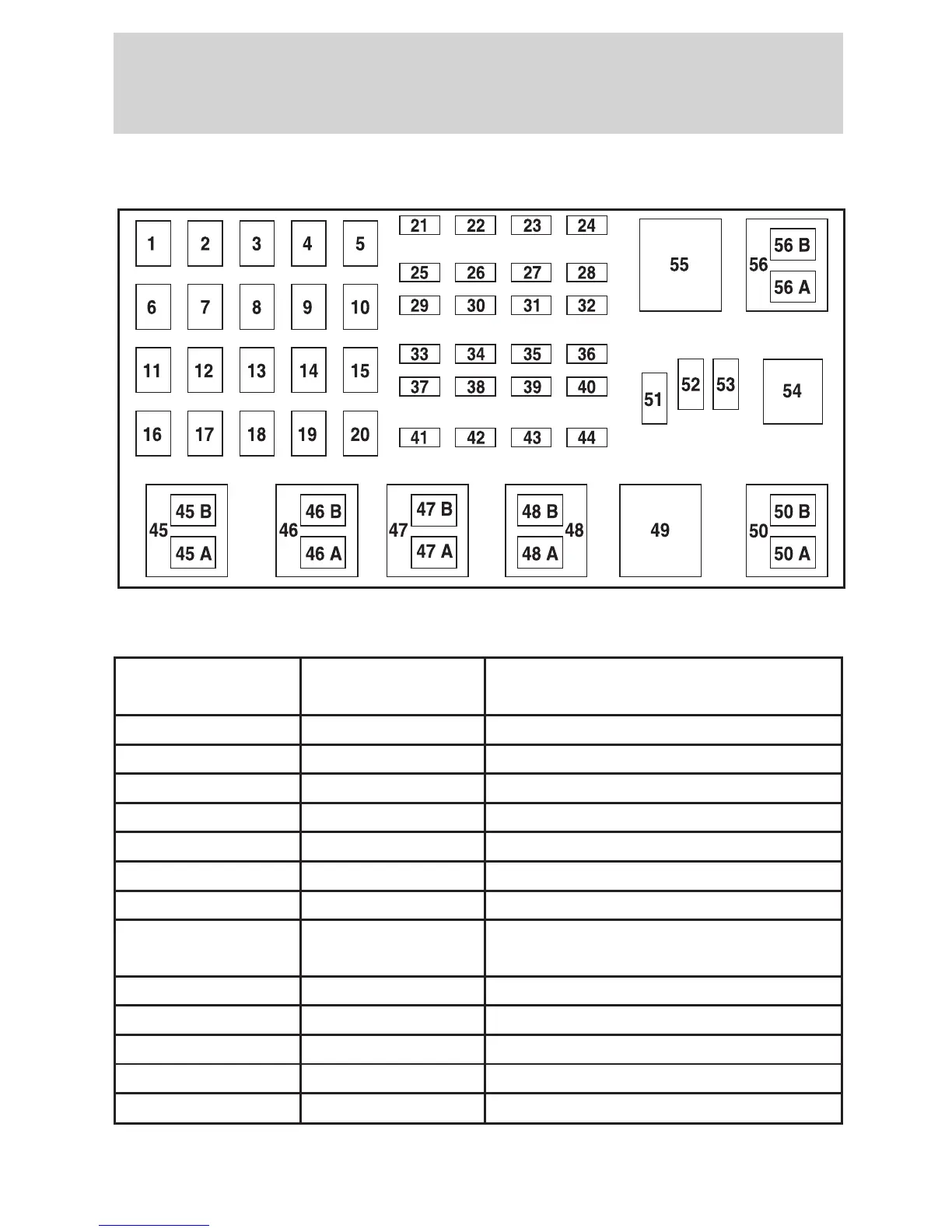

Fuse/Relay
Location
Fuse
Amp
Rating
Power
Distribution
Box
Description
1
50A**
I/P
Fuse
Panel
2
—
Not
Used
3
—
Not
Used
4
—
Not
Used
5
—
Not
Used
6
50A**
ABS
Pump
Motor
7
30A*
Powertrain
Control
Module
(PCM)
8
20A*
Power
Door
Locks
and
Remote
Entry
9
—
Not
Used
10
—
Not
Used
11
50A**
Starter
Relay
,
Ignition
Switch
12
20A*
Power
W
indows
13
20A*
4x4
Motor
Roadside
emergencies
169
168
170
