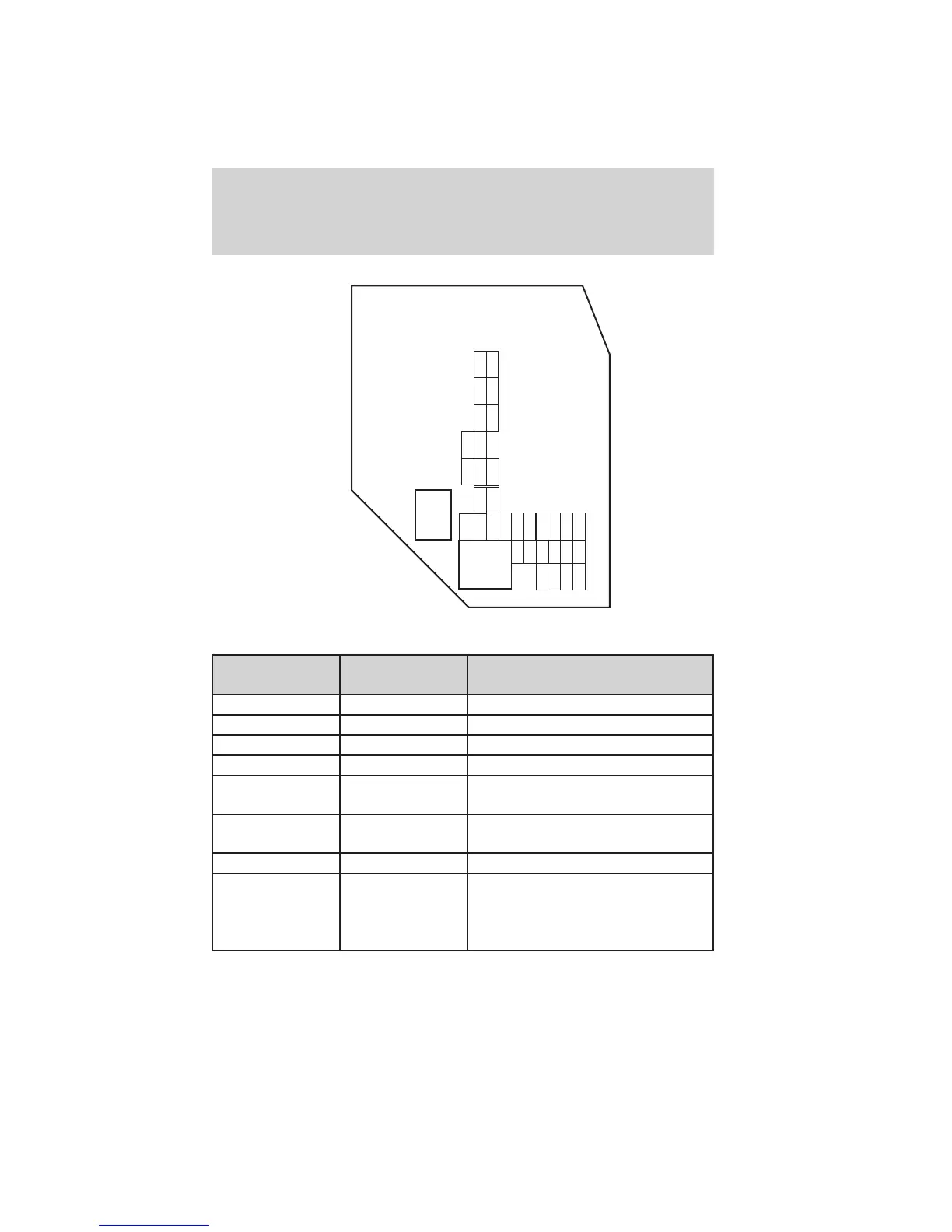

The fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Passenger Compartment Fuse
Panel Description
1 5A Instrument panel dimmer switch
2 10A Trailer tow park lamps
3 10A Right low beam headlamp
4 10A Left low beam headlamp
5 5A Windshield wiper module
(run/accy)
6 10A Radio (run/accy), Door switch
illumination
7 — Not used
8 10A Restraints control module (RCM),
Passenger airbag deactivation
indicator (PADI), Occupant
classification sensor (OCS)
15
25
2
1
3
4
5
6
8
9
11
12
7
10
13
14
17
18
20
21
22
23
24
16
19
27
28
29
30
31
26
32
33
34
35
Roadside Emergencies
183
2011 Ranger (ran)
Owners Guide, 1st Printing
USA (fus)
