UNDER HOOD OVERVIEW
2.0L ATK iVCT Engine
WARNING: The inverter system controller contains various
high-voltage components that can cause serious injury or death.
The inverter system controller is not serviceable and should never be
touched, probed, or tampered with.
Note: Do not attempt to service any of the high-voltage components or
wiring. For easier identification, the high-voltage wiring insulation is
color coated orange.

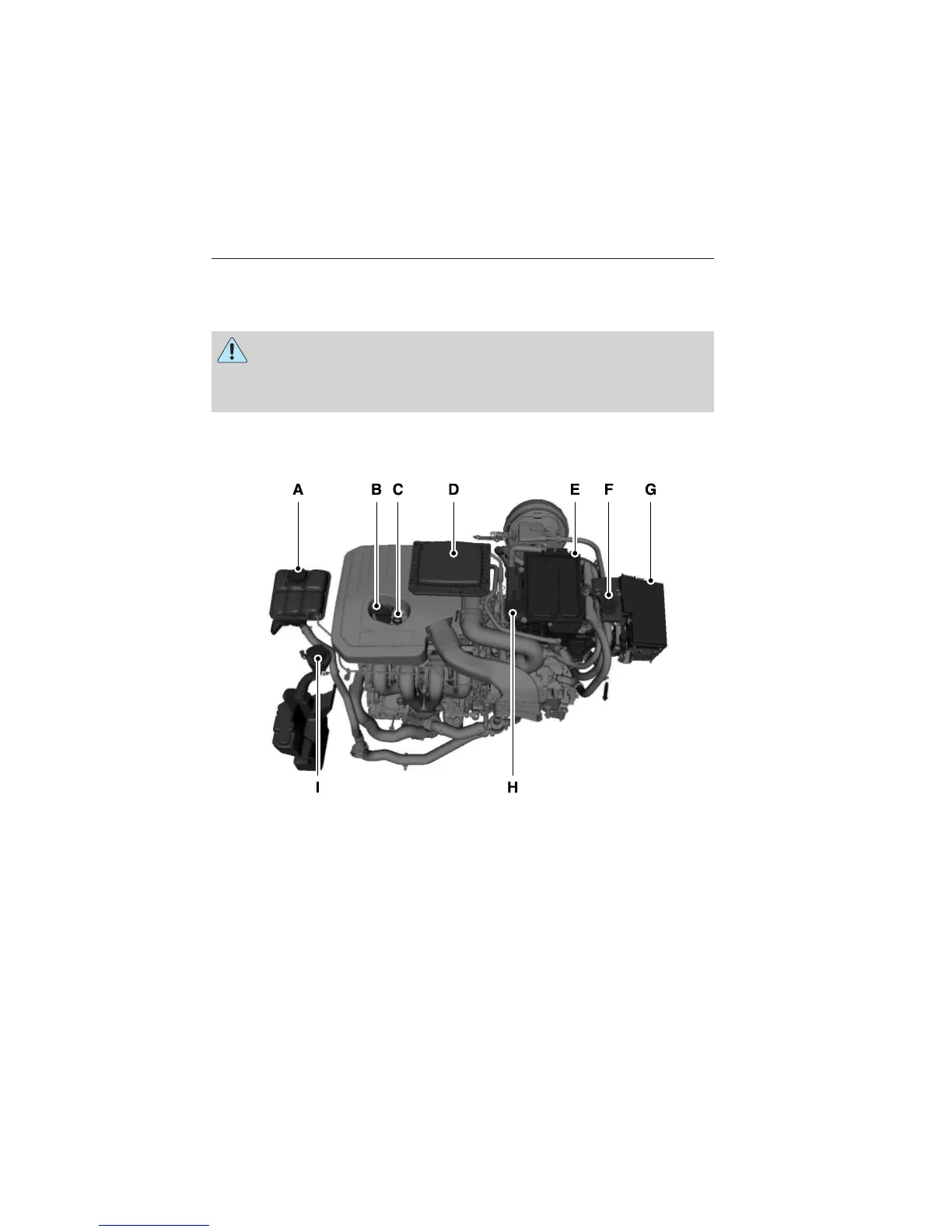

A. Engine coolant reservoir cap
B. Engine oil filler cap
C. Engine oil dipstick
D. Air cleaner cover
E. Inverter system controller
F. Brake fluid reservoir cap
G. Power distribution box
H. Inverter system controller
coolant reservoir cap
I. Windshield washer fluid reservoir
cap
Maintenance 277
2013 C-Max Full Hybrid (34h)
Owners Guide gf, 2nd Printing
USA (fus)
