FUSE SPECIFICATION CHART
Power Distribution Box
WARNING: Always disconnect the battery before servicing high
current fuses.
WARNING: To reduce risk of electrical shock, always replace the
cover to the power distribution box before reconnecting the
battery or refilling fluid reservoirs.

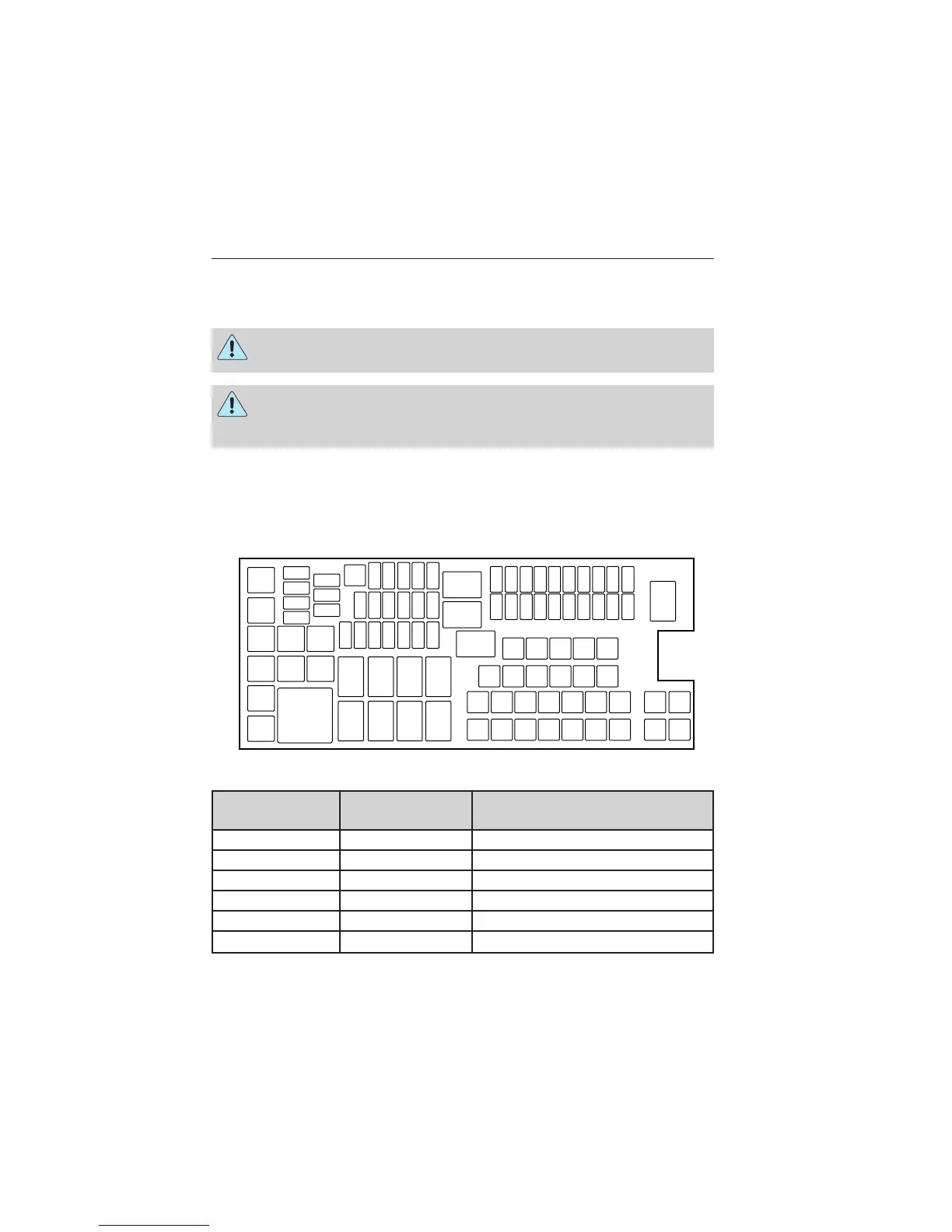

The power distribution box is located in the engine compartment. It has
high-current fuses that protect your vehicle’s main electrical systems
from overloads.
If the battery has been disconnected and reconnected, see Changing the
Vehicle Battery in the Maintenance chapter.
The high-current fuses are coded as follows:
Fuse or relay
number
Fuse amp
rating
Protected components
1 40A** Fan relay 2
2 40A** Fan relay 1
3 30A** Trailer brake control module
4 30A** Wipers, Washer pump
5 50A** Anti-lock brake system pump
6 — Not used
97
98
77
96
95
94
93 92 91 90 89
88
66
44
78
56
39
26
18 1617
312456789
192021222324
2728293031
40414243
55
575859606162636465
798081828384858687
67
45
32
10111213
333435
464748495051
6869707172
74
73
76
75
53
37 36
54
38
25
15
14
52
Fuses 285
2015 Flex (471)
Owners Guide gf, 1st Printing, October 2014
USA (fus)
