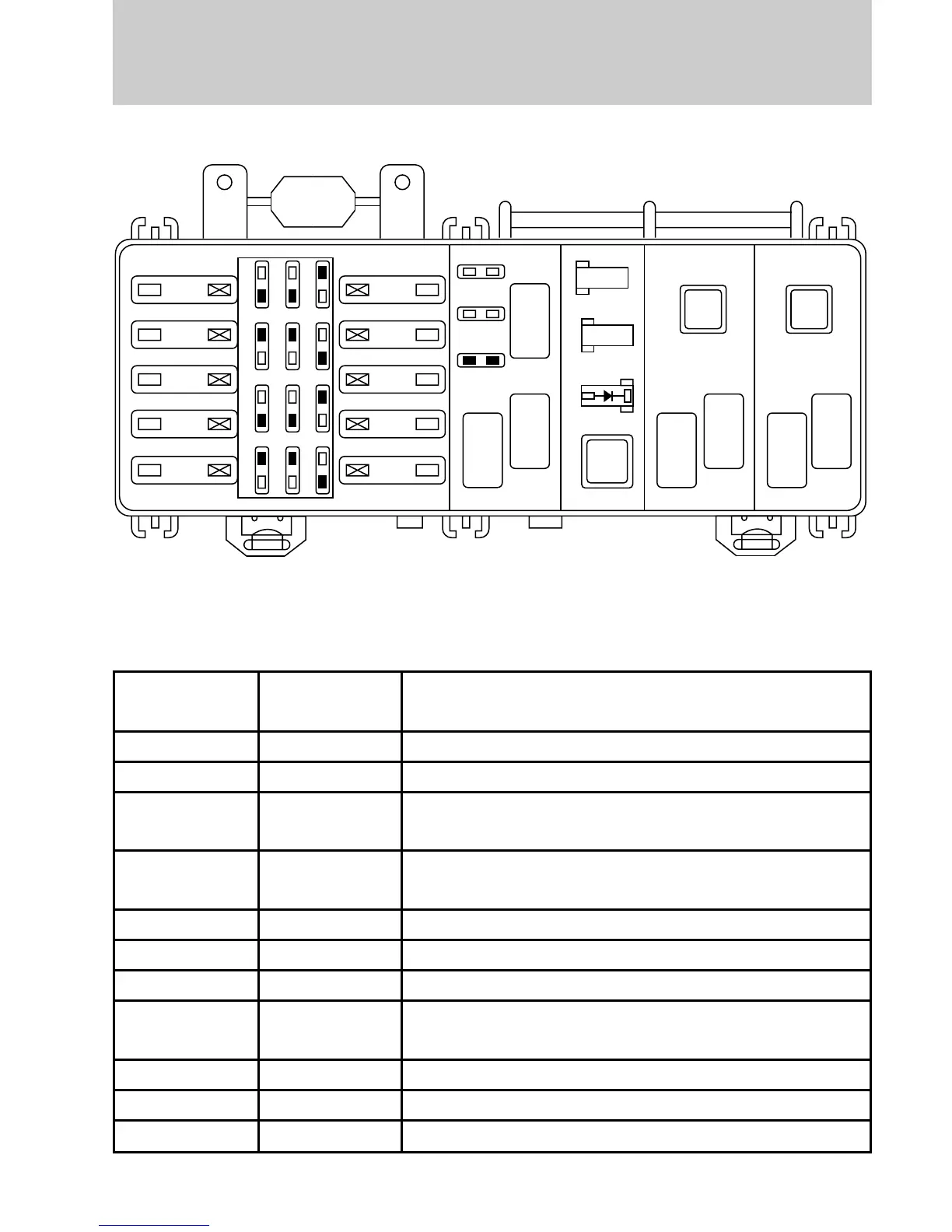

Ford Explorer 1998 - High-Current Fuse Diagram

The high-current fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating
Description
1 60A** I/P Fuse Panel
2 40A** Blower Motor Relay
3 50A** 4 Wheel Anti-Lock Brake System (4WABS)
Module
4 30A** Power Windows, Power Moon Roof, Power
Seat
5 50A** Ignition Switch, Starter Relay
6 20A** Transfer Case Relay
7 — NOT USED
8 20A** Automatic Ride Control ARC Switch Off/On
Switch
9 40A** Automatic Ride Control Relay
10 30A** PCM Power Relay
1 10A* A/C Relay
54321
10 9 8 7 6
12 11 10 9
8765 4321
1415 13
211
9 6
10
8
7
5
4
1
23
175
MEGAFUSE
