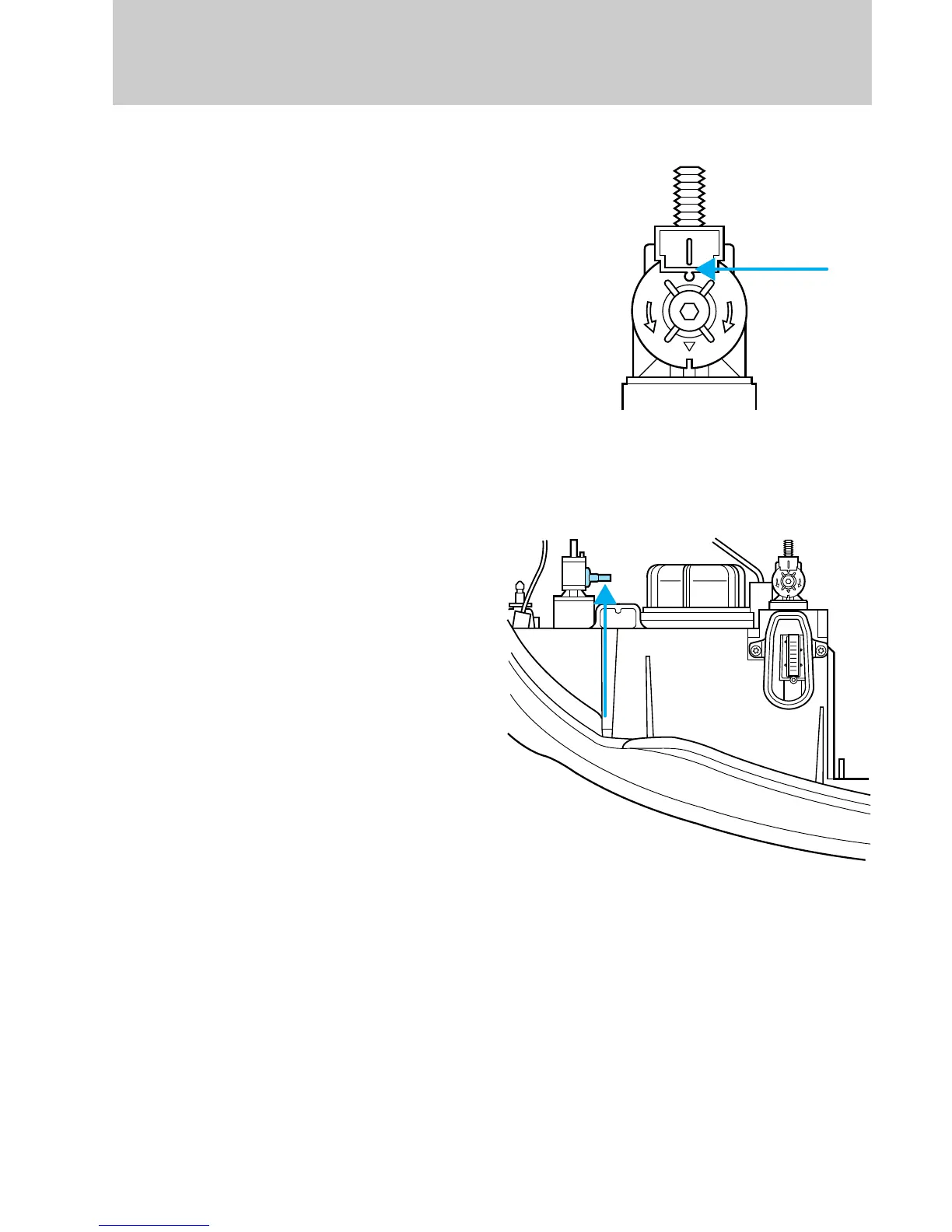

Horizontal aim adjustment
1. With the hood open, locate the
horizontal indicator and adjusting
screw. They are located below the
viewing hole at the rear of the
headlamp assembly.
2. Use a 4mm wrench or socket to
turn the horizontal adjusting screw
until the ‘‘0’’ mark on the yellow dial
lines up with the reference mark on
the marker (as shown) when viewed
directly from above.
Vertical aim adjustment
1. Park the vehicle on a level
surface.
2. With the hood open, locate the
bubble level and vertical adjustment
screw. The adjustment screw is
located on the outboard side of the
headlamp.
U
D
Maintenance and care
190
