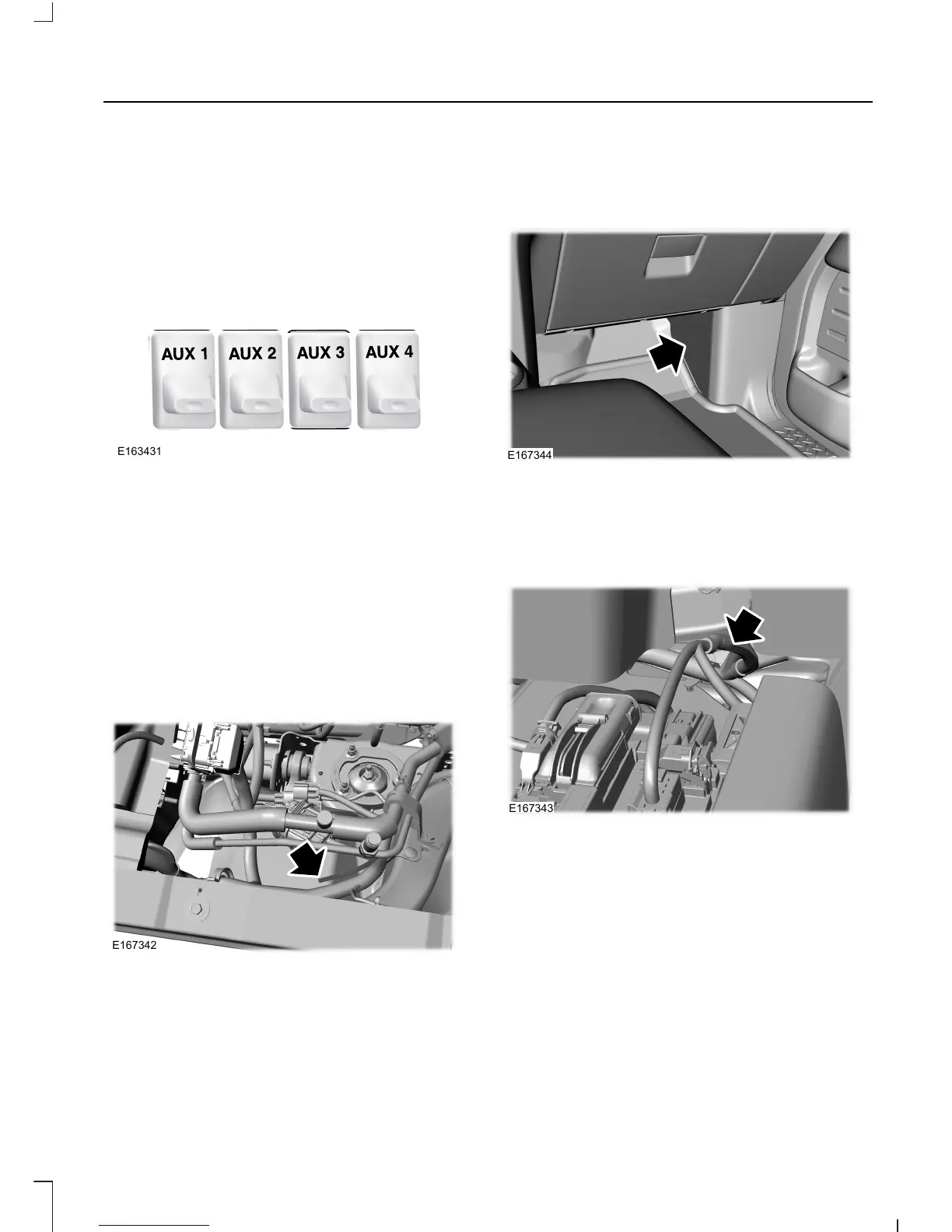

AUXILIARY SWITCHES
The auxiliary switchboard on the center
console makes aftermarket customization
easier, with four prewired switches
attached to the power distribution box for
electrical accessories.
These switches are labeled AUX 1, AUX
2, AUX 3 and AUX 4. They will only
operate while the ignition is in the on
position, whether the engine is running or
not. It is, however, recommended that the
engine remain running to maintain a
battery charge when using the switches
for an extended duration or higher current
draws. When switched on by the operator
they provide 10 amps, 15 amps or 30 amps
of electrical battery power for a variety of
uses.
The switches control relays and fuses that
are located under the hood in the auxiliary
switch pass through circuits. See At a
Glance (page 4).
There will also be one power lead for each
switch found as a blunt-cut and sealed
wire located to the right of the glove box
door and just above the passenger-side
kick panel.
You may need to pull down the auxiliary
cords to access them.
Refer to the Fuses chapter of your
Owner’s Manual for information on fuse
and relay locations. See your authorized
dealer for service.
Additional pass through circuits that run
through the dash panel and under the
hood, are located in the same location.
