Ford FG7750E - Battery Charger for Electric Starter; How to Stop Engine

OPERATION
Battery Charger for Electric Starter
Keep the generator battery fully charged and ready to use to avoid the need to use the recoil starter to start the generator
manually.
19
How to Stop Engine (See fig 15-18)
Manual state generator
Place the switch handle in the "OFF" position.(see fig 16)
• All loads MUST be disconnected from the generator. Never start or stop the engine with electrical devices plugged in
to the receptacles.(see fig 15)
•
• Turn the fuel valve to the “OFF” position.(see fig 17)
• Turn the engine START/ON/OFF switch to the “OFF” position.(see fig 18)
Electric state generator
Switch handle is in OFF position

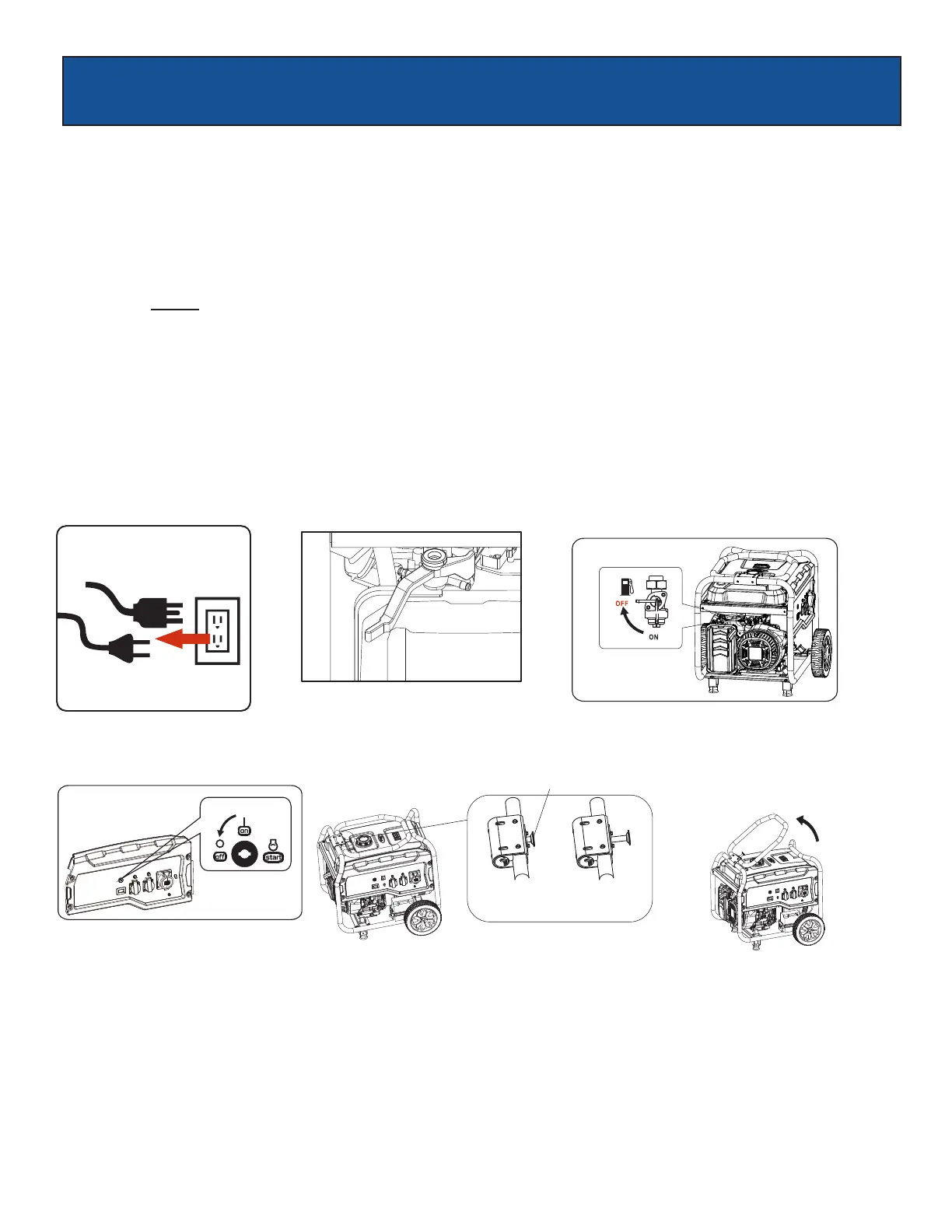

Fig 15 Fig 16 Fig 17
1
OFF
Handle operation(see fig 19-22)
• Use one hand to pull the handle pin puller, then pull it to a certain resistance while the other hand rotates the handle.
(The handle pin is unlocked.)
• Rotate the handle to a horizontal position. and make sure the handle pin is in the locked position. Only move the
generator set.
Handle Pull Plate
Handle pin
l
o
c
k s
t
a
t
us
Handle pin
unlocked
Fig 19
Turn Around
Fig 20
