Protected componentsFuse amp ratingFuse or relay number
Rear driver side door (window)
30A
1
29
Rear passenger side door (window)
30A
1
30
Not used (spare)
15A
1
31
GPS, Voice control, Display, Adaptive cruise
control, Radio frequency receiver
10A
1
32
Radio, Active noise control
20A
1
33
Run/start (fuse #19, 20, 21, 22, 35, 36, 37,
circuit breaker)
30A
1
34
Restraints control module
5A
1
35
Auto-dimming rear view mirror
15A
1
36
Not used (spare)
15A
1
37
Not used (spare)30A38
1
Micro fuse
2
Dual micro fuse

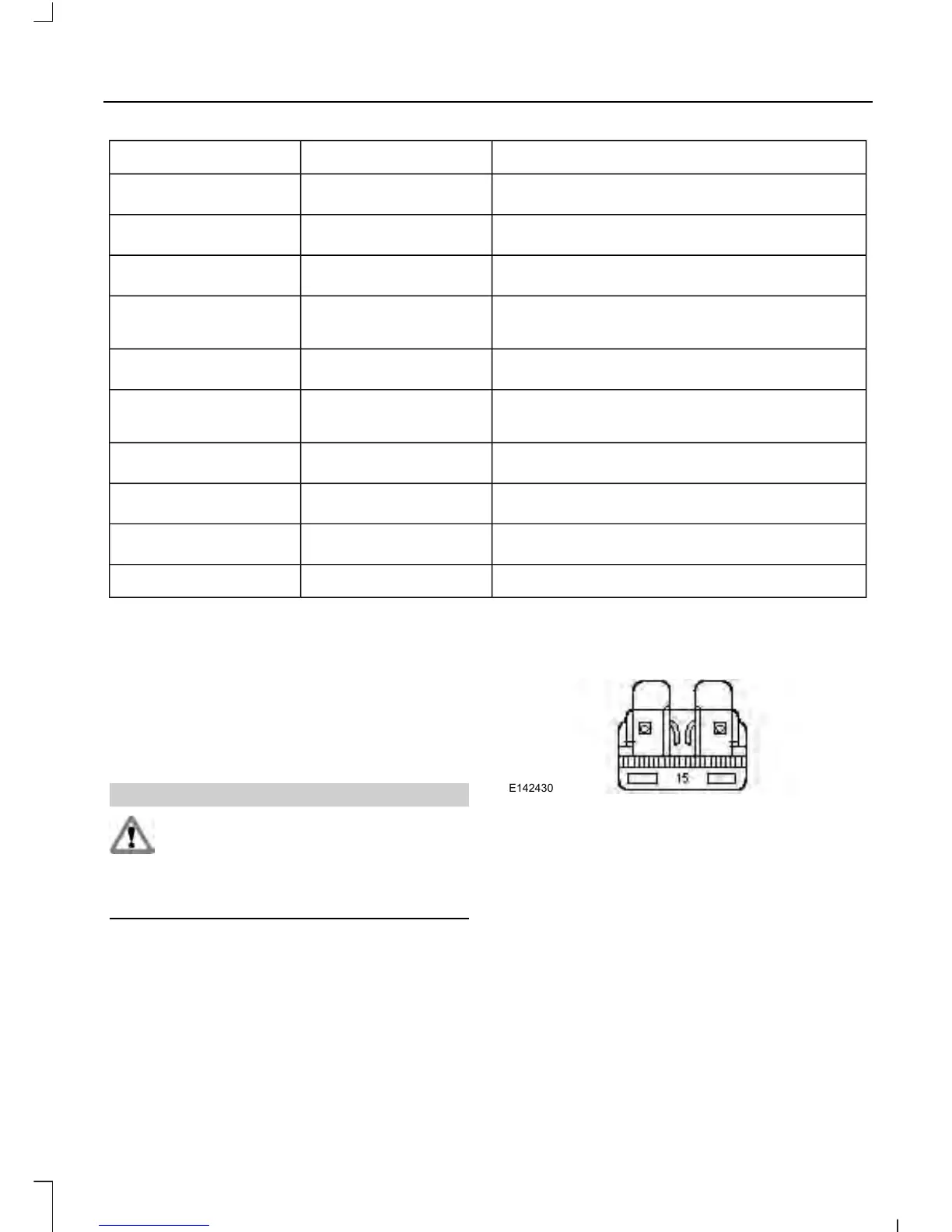

CHANGING A FUSE
Fuses
WARNING
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire.
E142430
If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
239
Fusion/Mondeo (CC7)
Fuses
