7. Remove the three front bumper cover
lower fasteners, only on the side of the
headlamp you are servicing.

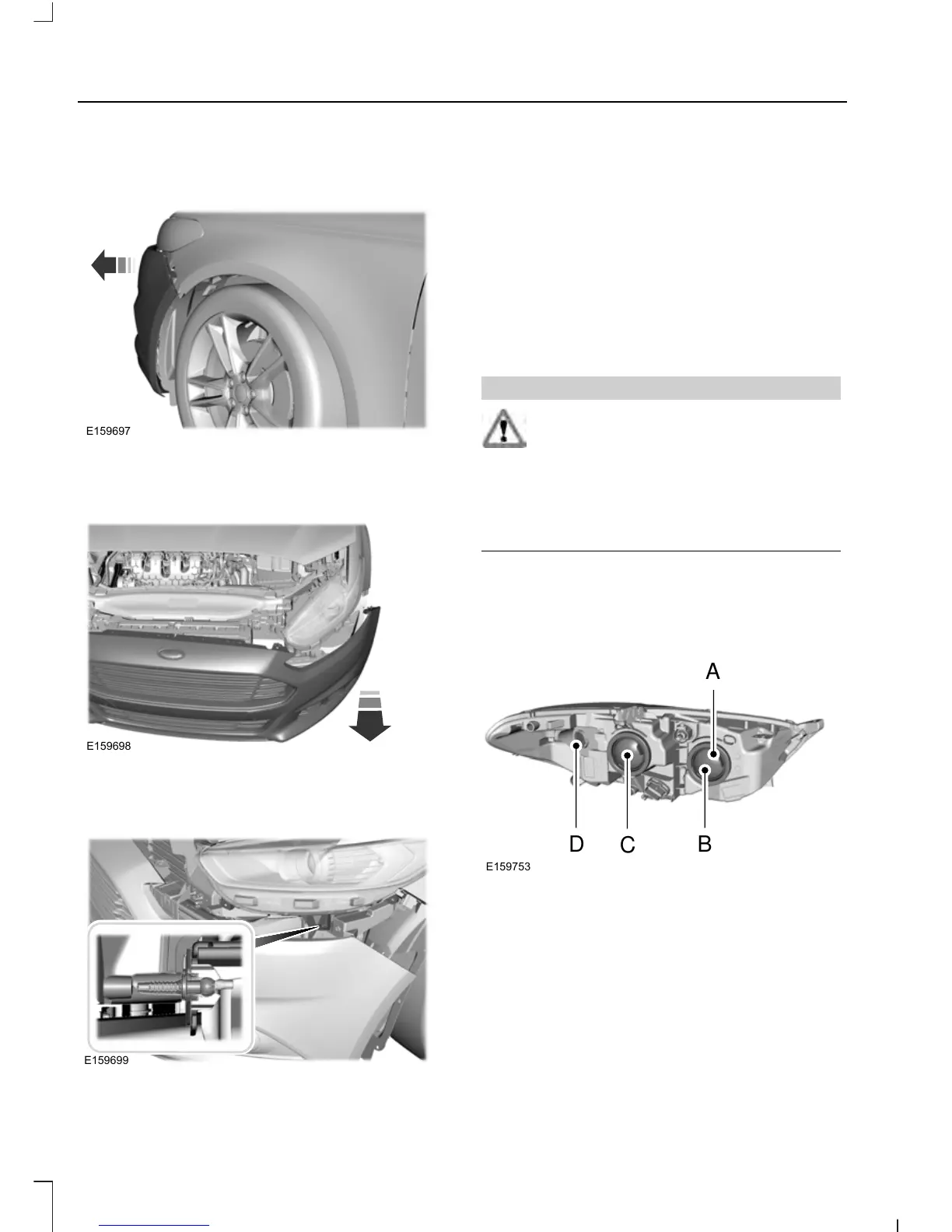

8. Separate the front bumper cover from
the fender and pull the fender outward
1.2 inches (3 centimeters).
9. From the front of the vehicle, pull the
front bumper cover forward 4 inches
(10 centimeters).
10. Carefully pull the headlamp assembly
outward to disengage it from the
lower fixing point.
11. Carefully lift the headlamp and
remove it from the vehicle.
12. Disconnect the electrical connector.
CHANGING A BULB
Replacing the Headlamp Bulbs
WARNING
Handle a halogen headlamp bulb
carefully and keep out of children’s
reach. Grasp the bulb by only its
plastic base and do not touch the glass.
The oil from your hand could cause the
bulb to break the next time the headlamps
are operated.
Note: If the bulb is accidentally touched, it
should be cleaned with rubbing alcohol
before being used.
Headlamp assembly:
A. Side marker lamp bulb
B. High beam headlamp bulb
C. Low beam headlamp bulb
D. Front parking/Turn signal lamp bulb
266
Fusion/Mondeo (CC7), enUSA
