Z304DA – Z304DA7 Head Tech Specs
Intake Port
Exhaust Port
Dimension A
-
T
hroat
diameter
1.810” +/-0.020” 1.385” +/-0.020”
Dimension B
–
Distance from
seat insert bottom to take
Dimension A
0.350” +/- .020” 0.200” +/- .020”

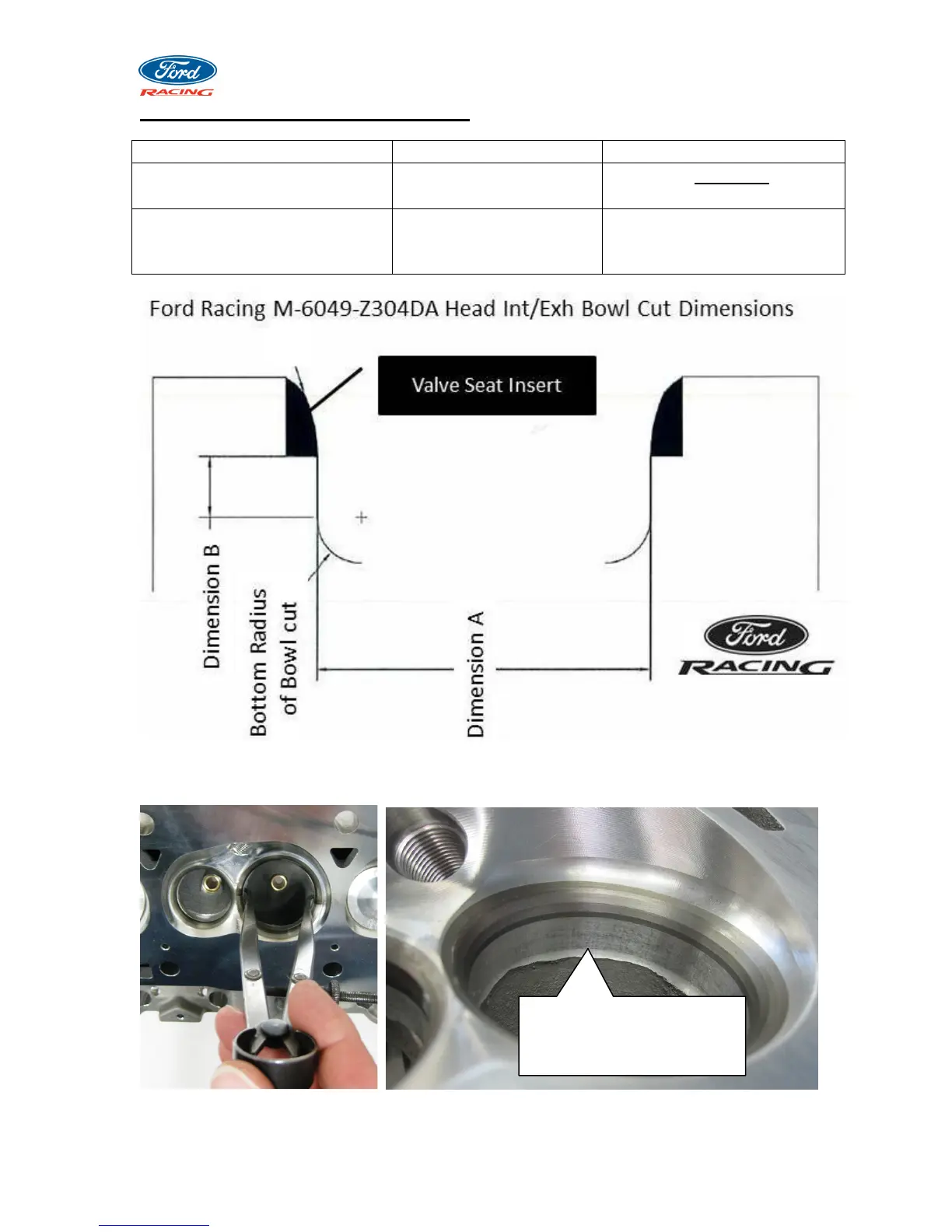

Measuring the Bowl Cut
Dimension A
measurement taken at
the bottom of bowl cut
