Ford Racing 347 Series User Manual

Ford Racing 347 Series Sealed Engine Handbook
Issue Date January 25, 2013 Revision #7
No part of this document may be reproduced without the prior agreement and written permission of Ford Racing
20
Torque Specifications
Application Torque (lb*ft unless noted) Recommended Lubricant
Main studs into block ½ inch 3-5 Loctite 242
Main nuts ½ inch 95-105 Engine oil
Main splayed bolts 3/8 inch 35-45 Engine oil
Rod bolts 50 ARP Moly rod bolt lube
Head studs into block 3-5 Loctite 242
Head nuts 95-105 Engine oil
Rocker studs 60-65 Loctite PFT
Intake manifold bolts 18-20 Loctite 242
Flywheel bolts 75-80 Loctite 242 or dry-seal
Vibration damper bolt 90 Engine oil
Oil pump to block 28-35 Loctite 242
Oil pickup tube to main stud 28-35 Loctite 242
Cam bolt 40-45 Loctite 242
Cam retainer plate bolt 9-12 Loctite 242
Tappet guide retainer 9-12 Loctite 242
Oil pickup tube to oil pump 12-18 Loctite 242

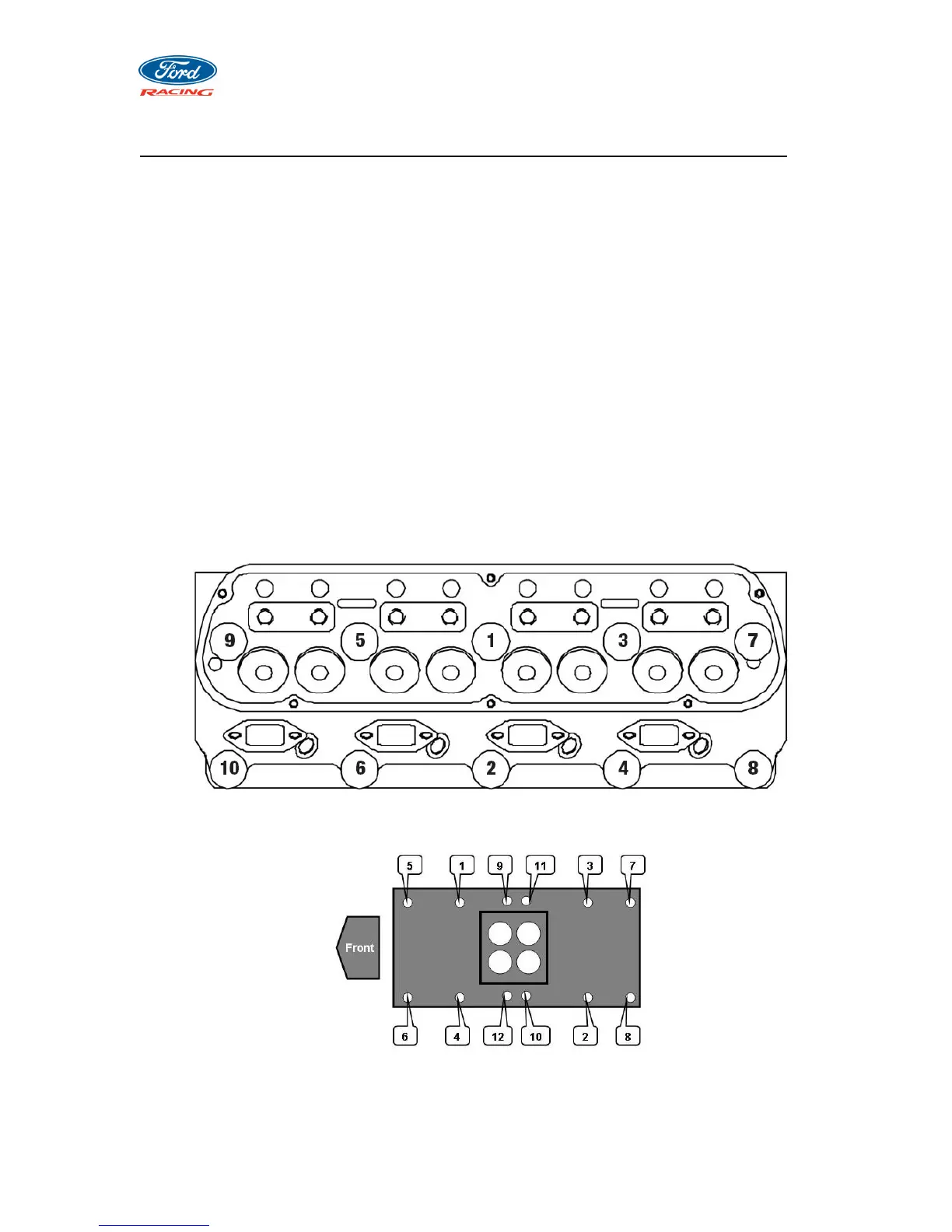

CYLINDER HEAD TORQUE CHART
INTAKE MANIFOLD TORQUE SEQUENCE
