Air vents.A
Direction indicator lever.B
Information display controls.C
Instrument cluster.D
Audio control. Voice control.E
Wiper lever.F
Information display.G
Audio unit.H
Door lock indicator.I
Hazard flasher switch.J
Climate control.K
Parking aid button.L
Auto Start-Stop button.M
Heated rear window button.N
Heated windshield button.O
Ignition switch.P
Steering wheel adjustment lever.Q
Horn.R
Cruise control buttons.S
Lighting control. Front fog lamp
button. Rear fog lamp button.
Headlamp leveling control.
T

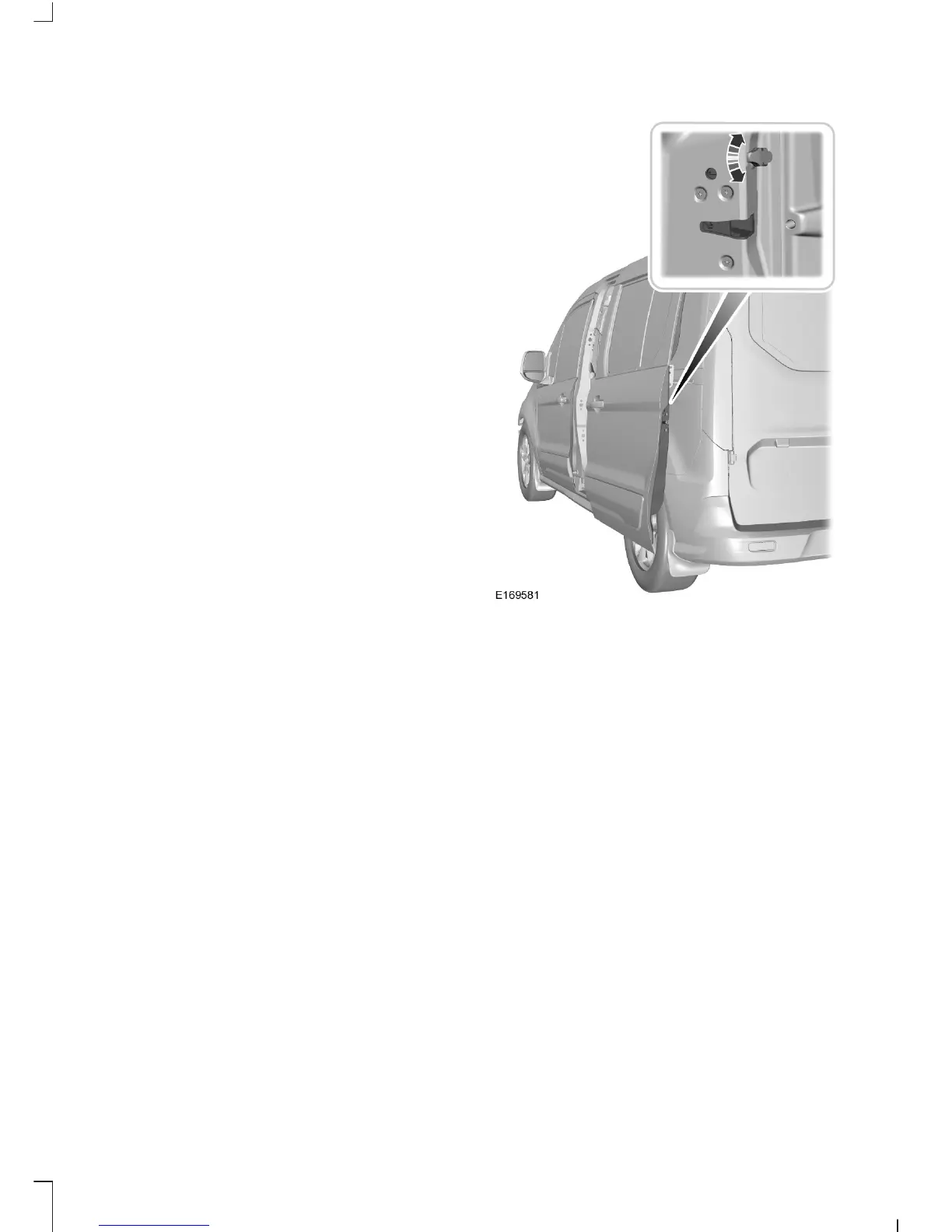

CHILD SAFETY LOCKS
A child safety lock is located on the rear
edge of each rear door. You must set the
child safety lock separately on each door.
Left-Hand Side
Turn counterclockwise to lock and
clockwise to unlock.
Right-Hand Side
Turn clockwise to lock and
counterclockwise to unlock.
2
Tourneo Connect (CHC) Long Wheelbase Kombi/Short Wheelbase Kombi, Base/Base High Payload/Titanium/Titanium High Payload/Trend/Trend ECOlite/Trend High Payload
