REAR SEATS
Vehicles With Five Seats

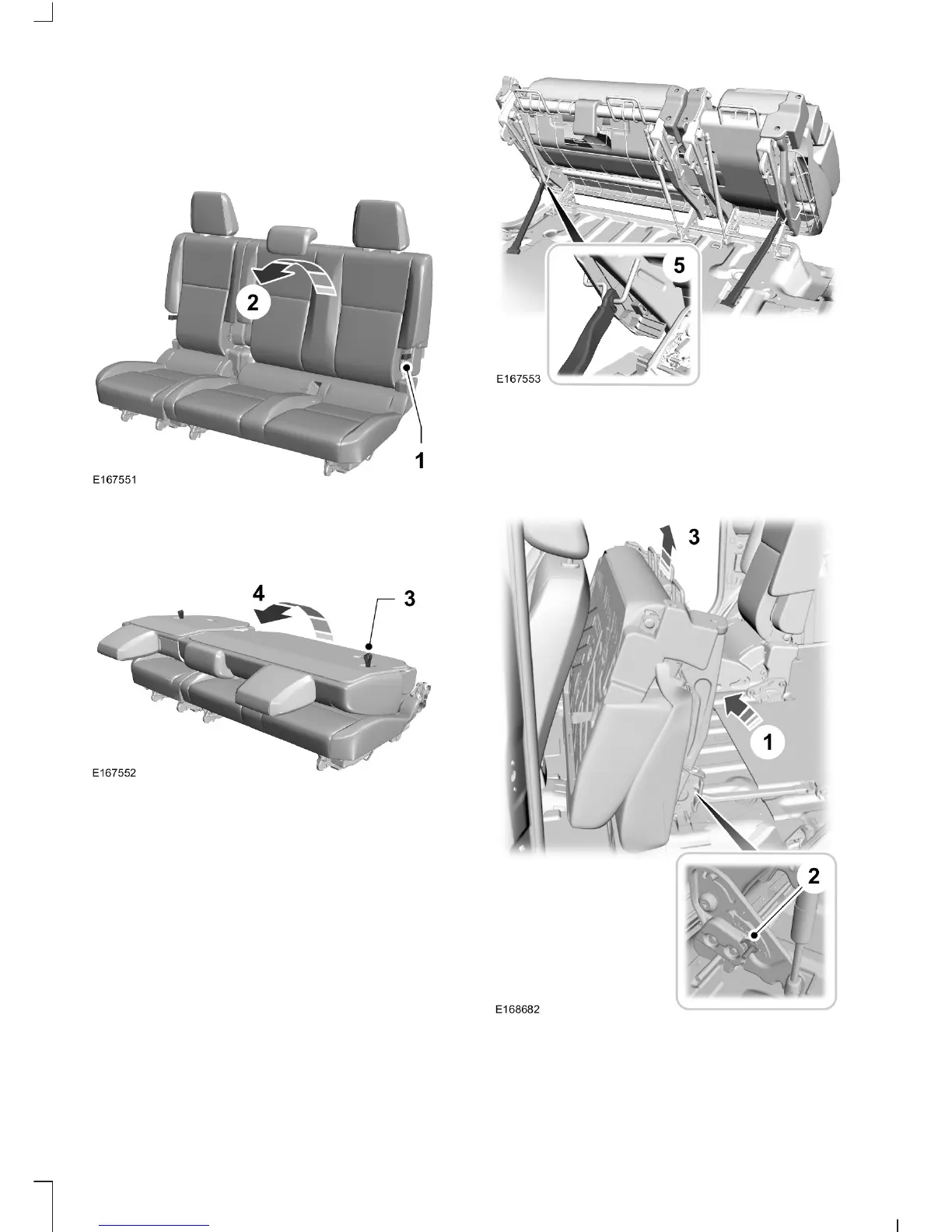

Folding the Seat Forward
1. Pull the strap on the side of the
seatback.
2. Fold the seatback forward.
3. Pull the strap on the rear of the
seatback.
4. Raise the seat.
5. Lift the support rod and connect to the
seat frame. This prevents the seat
frame from falling backward.
Removing the Seats
1. Raise the seat.
2. Rotate the locking lever.
3. Remove the seat.
6
Tourneo Connect (CHC) Long Wheelbase Kombi/Short Wheelbase Kombi, Base/Base High Payload/Titanium/Titanium High Payload/Trend/Trend ECOlite/Trend High Payload
